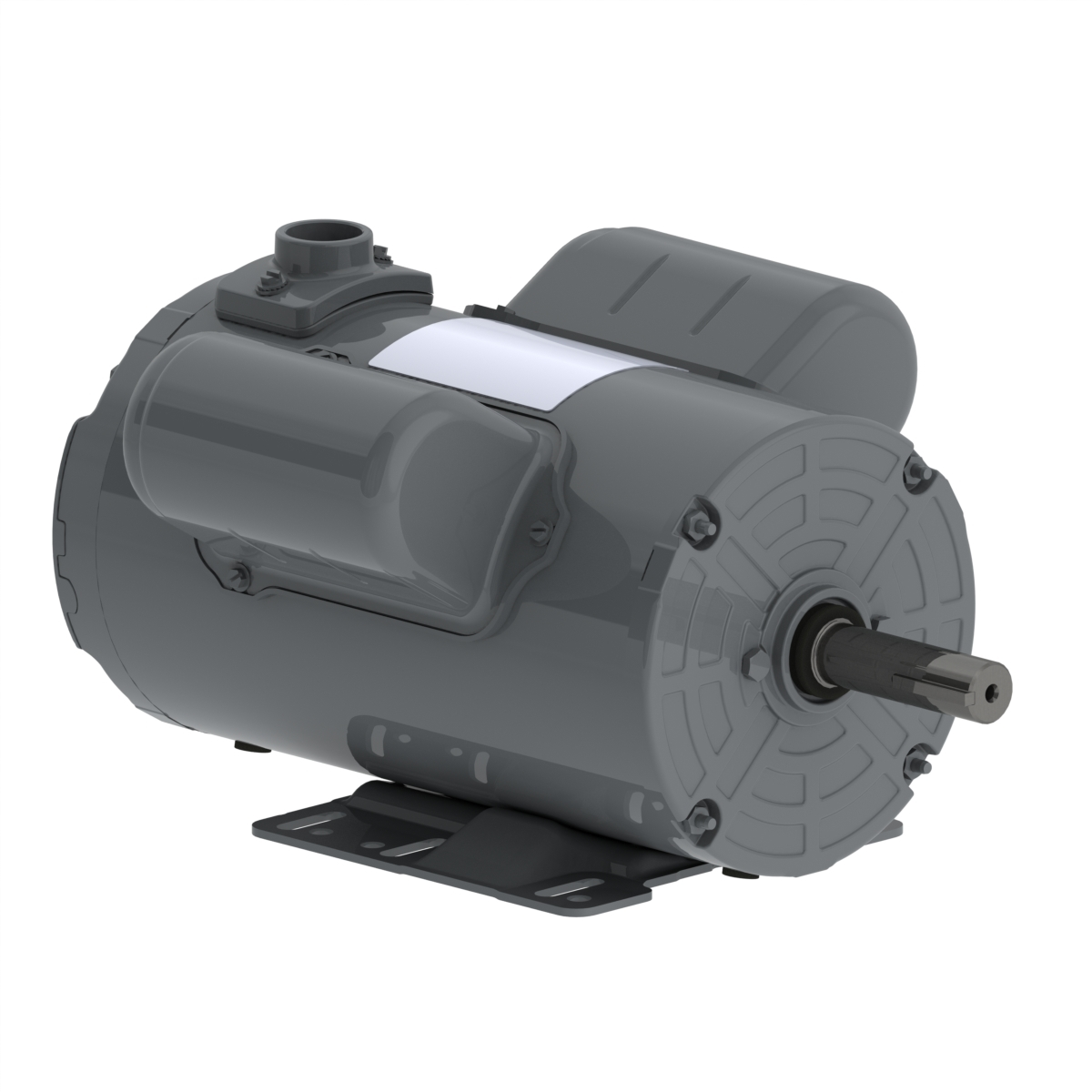

WEG 00456AP1DGD145TZ-S 14862261 Farm Duty Motor, Grain Dryer-Axial, 3.0-4.5 HP, 2 Poles, 143/5TZ Frame, 1 Phase, 230V, 60 Hz, Foot-mounted
Get it by Monday, Aug 24
€1,222.91 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2 Key |
| Bolt Material | Carbon Steel |
| Cold Locked Rotor Time | 7 sec. |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Duty Cycle | S1 |
| Enclosure Rating | IC418 |
| Enclosure Type | Teao |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grade | Garde 1040/45 |
| Grounding Lugs Type | In The Endshield |
| Insulation Class | Class F |
| Item | 2229709 |
| L. R. Amps | 125A |
| Locked Rotor Time(hot) | 4 sec. |
| Lrc | 7x(Code H) |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Nde Bearing Seal | No |
| No. Of Poles | 2 |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rotation | CW, CCW |
| Service Factor | 1 |
| Shaft Material | Carbon Steel |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Tropicalized Painting | Without |
| Voltage | 230V |
| Winding Thermal Protection | Thermostat 2 Wires 1 Per Phase 155°C |
Shipping Info:
| Ship weight (kg) | 24.57 |
