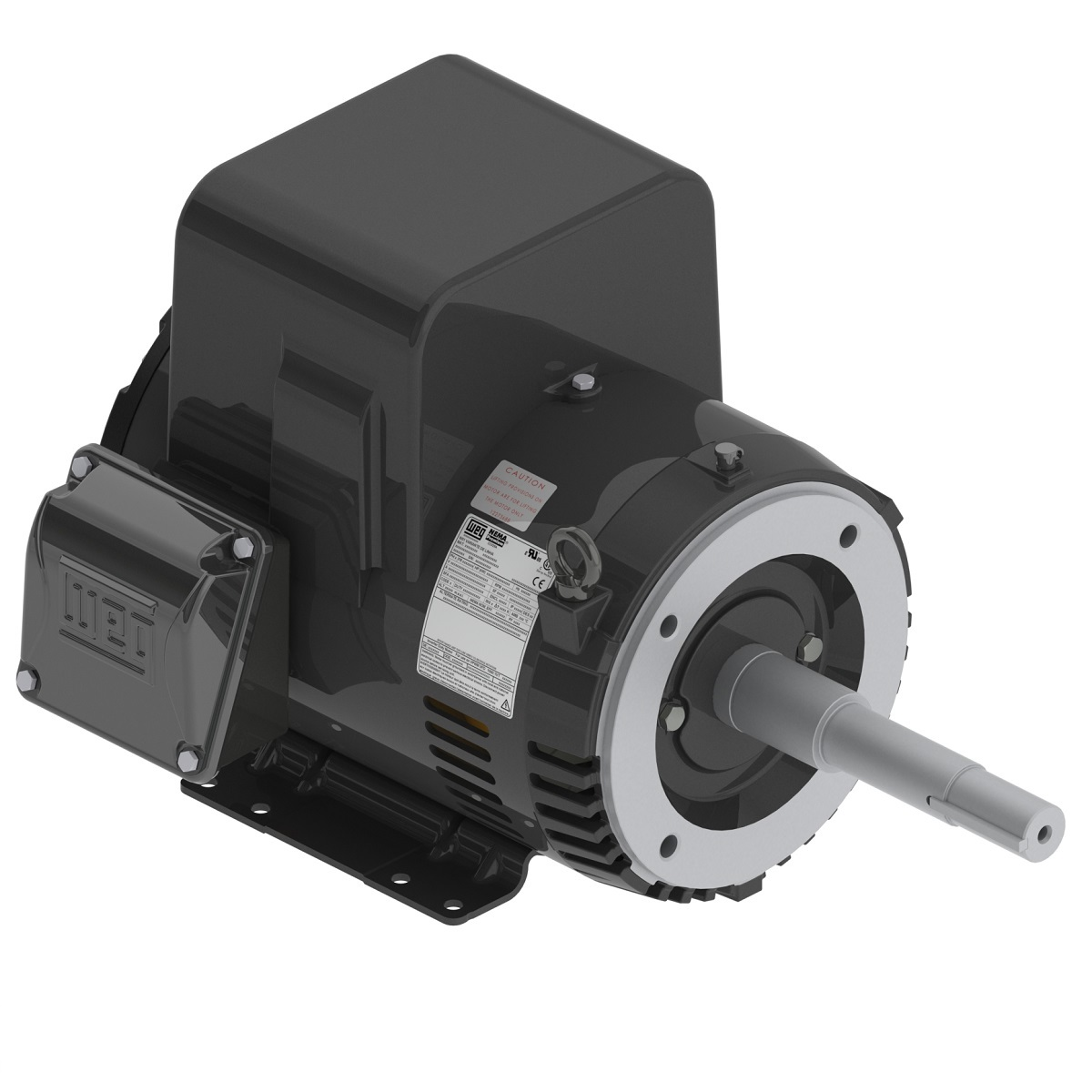

WEG 00336OS1B182JP-S 15194881 Pump Motor, Close Coupled JM/JP, Rolled Steel 3 HP, 2 Poles, 182/4JP Frame, 1 Phase, 115/208-230 V, 60 Hz, IC01-ODP, Foot Mounted
Get it by Tuesday, Aug 25
€1,165.64 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Application | Close Coupled Pump |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 270% |
| Cold Locked Rotor Time | 10 sec. |
| De Bearing Seal | No |
| Degree Of Protection | IP21 |
| Design | L |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency | 84% |
| Enclosure Iec | IP21 |
| Enclosure Nema | Odp |
| Enclosure Rating | IC01 |
| Enclosure Type | Open Dripproof |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame | 182/4jp |
| Frame Material | Rolled Steel |
| Frame Size Nema | NEMA 182-4jp |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 177/98-88.9A |
| Locked Rotor Time(hot) | 6 sec. |
| Locked Rotor Torque | 235% |
| Lrc | 7x(Code H) |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.1566 lbs.-sq. ft. |
| Mount Arrangement | F1 |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 12.6/5.7-6.3A |
| No. Of Poles | 2 |
| Output Rating | 2.2 kW |
| Output Speed | 3510 RPM |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 1 |
| Rated Amps | 25.3/14-12.7A |
| Rated Speed | 3510 RPM |
| Rated Torque | 4.49 lbs.-ft. |
| Rated Voltage | 115V/208-230V |
| Resilient Base | Without |
| Rotation | CW And CCW |
| Service Factor | 1.15 |
| Shaft Grounded Sgr | No |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 2.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 115V/208-230V |
Shipping Info:
| Ship weight (kg) | 32.27 |
