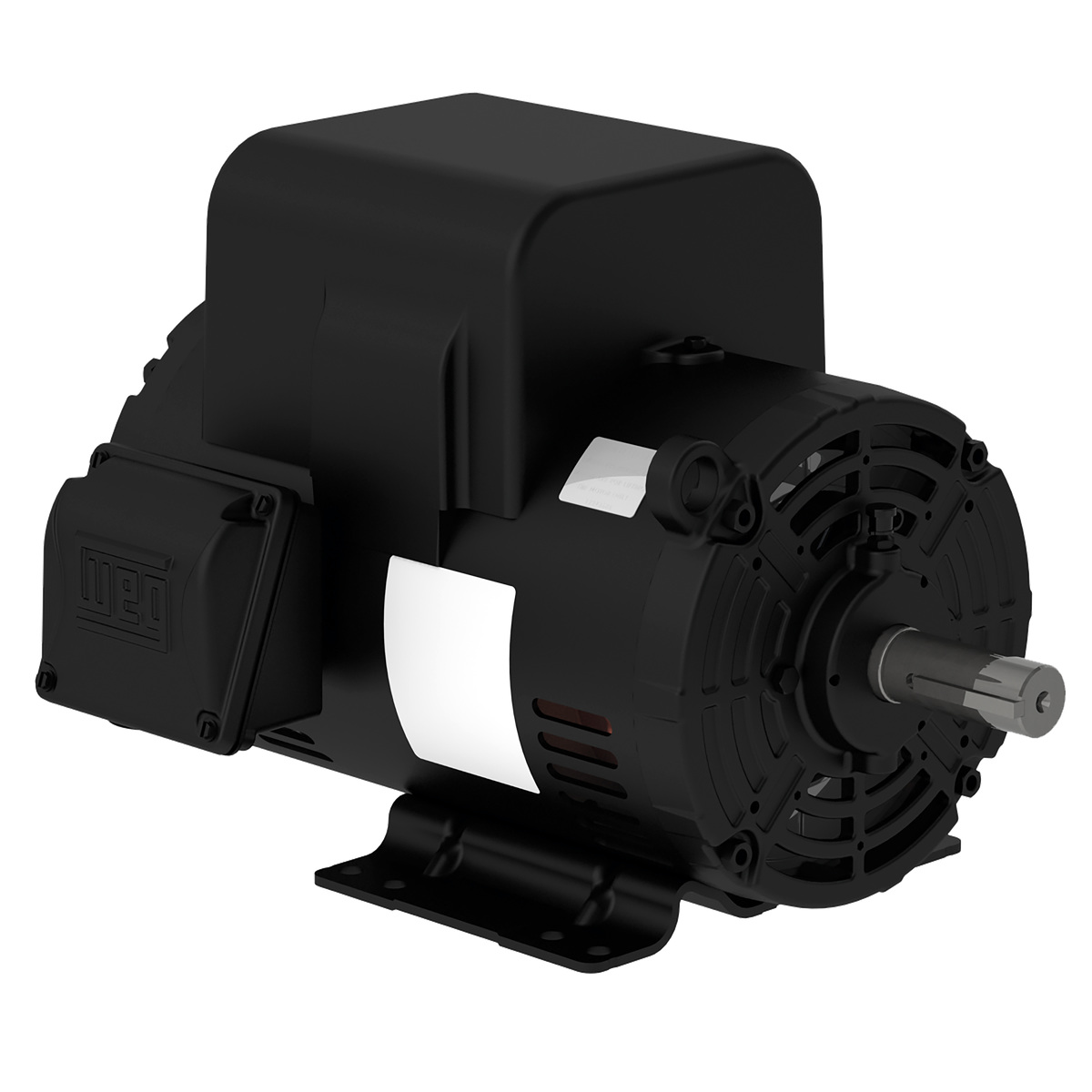

WEG 00318OS1CCDOL184T-S 15761864 General Purpose Motor, ODP RolLED Steel 182/4T Frame, 3 HP, 1765 RPM, 208-230V, Manual Overload Protector
Get it by Tuesday, Aug 25
€819.65 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Application | General Purpose |
| Balancing Method | 1/2 Key |
| Bearing Cap | No , No Without Bearing Cap |
| Bolt Material | Carbon Steel |
| Break Down Torque | 2.45 , 245% |
| Cold Locked Rotor Time | 10 sec. |
| De Bearing Seal | No |
| Design | L |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency 50% | 73% |
| Efficiency 75% | 80 |
| Enclosure | IC01-ODP |
| Enclosure Iec | IP21 |
| Enclosure Nema | Odp |
| Enclosure Rating | IC01 |
| Enclosure Type | Open Dripproof |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Frame | 182, 4T , 182/4T |
| Frame Material | Rolled Steel |
| Frame Size Nema | NEMA 182/4t |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F, F |
| L. R. Amps | 95.9-89.6A |
| Locked Rotor Time(hot) | 6 sec. |
| Locked Rotor Torque | 2.75 , 275% |
| Lrc | 7 X (Code H) , 7x(Code H) |
| Main Terminal Box Hole | NPT 1" |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.2781 lbs.-sq. ft. |
| Mount Arrangement | F1 |
| Mounting | F-1 , Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 4.91-5.7A |
| No. Of Poles | 4 |
| Output Rating | 2.2 KW , 3 Hp |
| Overload Protector (phenolic) | Manual |
| Painting | Only Primer |
| Phase | 1 |
| Power Factor 100% | 0.92 |
| Power Factor 50 % | 0.82 |
| Power Factor 75 % | 0.88 |
| Rated Amps | 13.7-12.8A |
| Rated Speed | 1765 RPM |
| Rated Torque | 1.23 Kgf-M , 8.93 Lbs.-Ft. |
| Rated Voltage | 208-230V |
| Resilient Base | Without |
| Rotation | CW And CCW |
| Service Factor | 1.15, 1.15 (1 @ 208V) |
| Shaft Grounded Sgr | No |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 1.94% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Terminal Box1 | Left Position |
| Tropicalized Painting | Without |
| Voltage | 208-230V |
Shipping Info:
| Ship weight (kg) | 31.37 |
