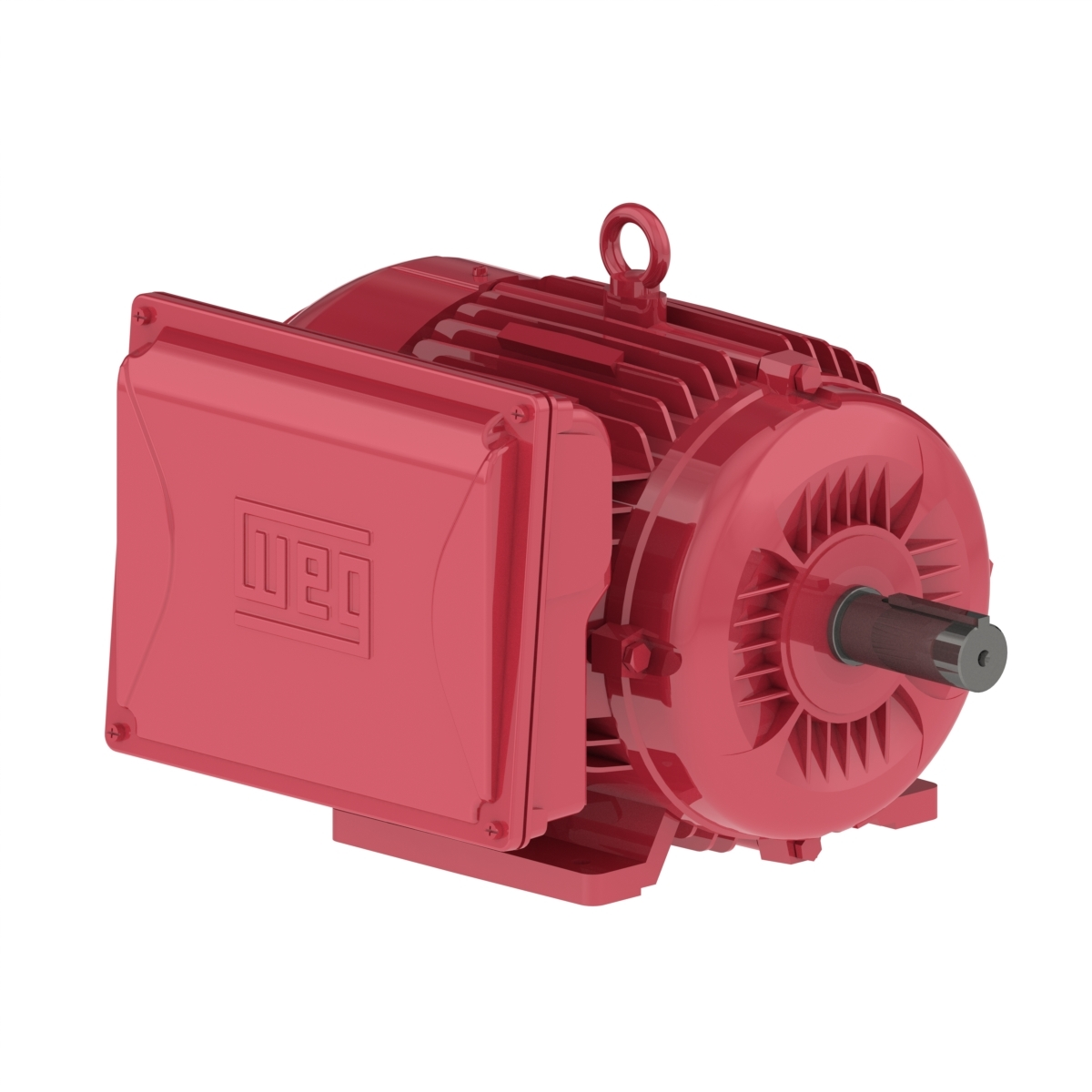

WEG 00318ES1DFD184T-W22 14229634 Farm Duty Motor, 3 HP, 4 Poles, 182/4T Frame, 1 Phase, 230V, 60 Hz, Foot-mounted, Cast Iron Frame
Get it by Monday, Aug 24
€1,091.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Ac Line Option | Non-Switched |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 13.8A |
| Application | General Purpose |
| Bearing Cap | No , No Without Bearing Cap |
| Braking | Dynamic |
| Break Down Torque | 2.7 , 270% |
| Cold Locked Rotor Time | 14 sec. |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Direction Controls | Forward, Stop, Reverse |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Efficiency 50% | 65% |
| Efficiency 75% | 74 |
| Electrical Type | Split Phase |
| Enclosure | IC411-TEFC |
| Enclosure Ip | IP20 |
| Enclosure Nema | Tefc |
| Enclosure Rating | IC411 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Encoder Input | Optional |
| Environment | Panel Mount |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 182, 4T , 182/4T |
| Frame Material | Cast Iron |
| Frame Size Nema | NEMA 182-4t |
| Frequency | 50/60 Hz , 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F, F |
| L. R. Amps | 106A |
| Locked Rotor Time(hot) | 8 sec. |
| Locked Rotor Torque | 2.9 , 290% |
| Lrc | 7.7 X (Code K) , 7.7x(Code K) |
| Main Terminal Box Hole | NPT 1" |
| Main Terminal Box Hole Size | 1" |
| Main Terminal Box Hole Type | NPT |
| Material | Carbon Steel |
| Moment Of Inertia | 0.3735 lbs.-sq. ft. |
| Mount Arrangement | F1 |
| Mounting | F-1 , Foot-Mounted, F-1 |
| Nde Bearing Seal | V Ring |
| No Load Amps | 6.7A |
| No. Of Poles | 4 |
| Noise Level | 60 dBA |
| Output Amps | 4.3A |
| Output Phase | 3 |
| Output Rating | 2.2 KW , 3 Hp |
| Overload Protector (phenolic) | Manual |
| Painting | Only Primer |
| Power Factor 100% | 0.9 |
| Power Factor 50 % | 0.79 |
| Power Factor 75 % | 0.87 |
| Rated Speed | 1745 RPM |
| Rated Torque | 9.03 lbs.-ft. |
| Rated Voltage | 230V |
| Rotation | CW And CCW |
| Screw Cap | Carbon Steel Sae 1010/20 |
| Service Factor | 1.15 |
| Shaft Grounded Sgr | No |
| Shaft Locking Device | Without |
| Shaft Material | Carbon Steel , SAE 1040/45 Carbon Steel |
| Slip | 3.06% |
| Standard I/o+ | Standard I, O |
| Starting Method | Direct On Line |
| Stop/run | Key Pad |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Terminal Box1 | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230V |
Shipping Info:
| Ship weight (kg) | 47.7 |
