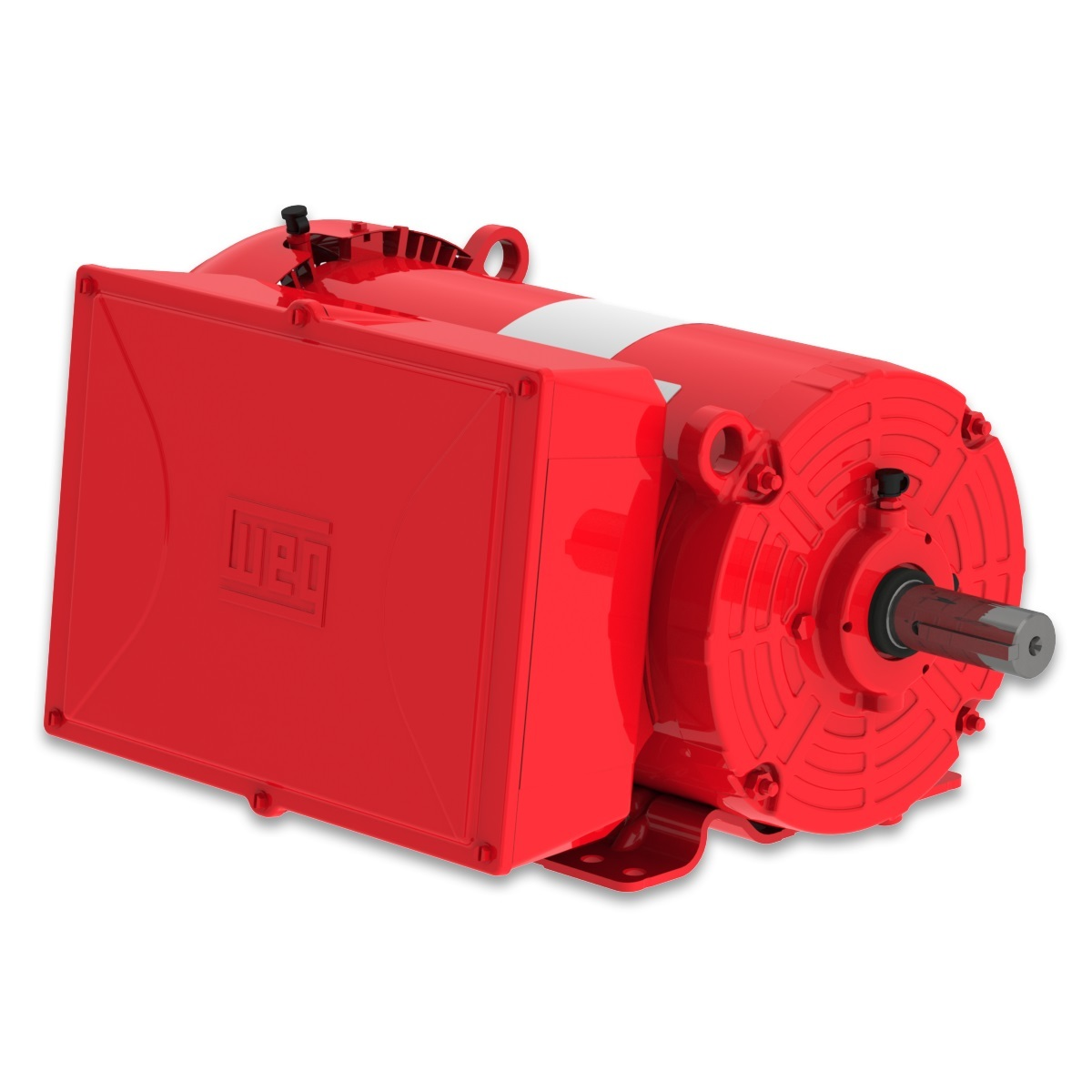

WEG 00318ES1DFD182T-S 13941132 Farm Duty Motor, 3 HP, 4 Poles, 182/4T Frame, 1 Phase, 230V, 60 Hz, Foot-mounted
Get it by Tuesday, Aug 25
€1,091.66 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 11.9A |
| Balancing Method | 1/2 Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break Down Torque | 360% |
| Cold Locked Rotor Time | 21 sec. |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC411 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Without |
| Frame | 182/4t |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 118A |
| Locked Rotor Time(hot) | 12 sec. |
| Locked Rotor Torque | 400% |
| Lrc | 9.9x(Code L) |
| Main Terminal Box Hole Size | 1.377" |
| Material | Carbon Steel |
| Moment Of Inertia | 0.3709 lbs.-sq. ft. |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 7.4A |
| No. Of Poles | 4 |
| Noise Level | 59 dBA |
| Output Rating | 2.2 kW |
| Overload Protector (phenolic) | Manual |
| Painting | Only Primer |
| Rated Speed | 1770 RPM |
| Rated Torque | 8.9 lbs.-ft. |
| Rated Voltage | 230V |
| Resilient Base | Without |
| Rotation | CW And CCW |
| Service Factor | 1.15 |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 1.67% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 230V |
Shipping Info:
| Ship weight (kg) | 41.85 |
