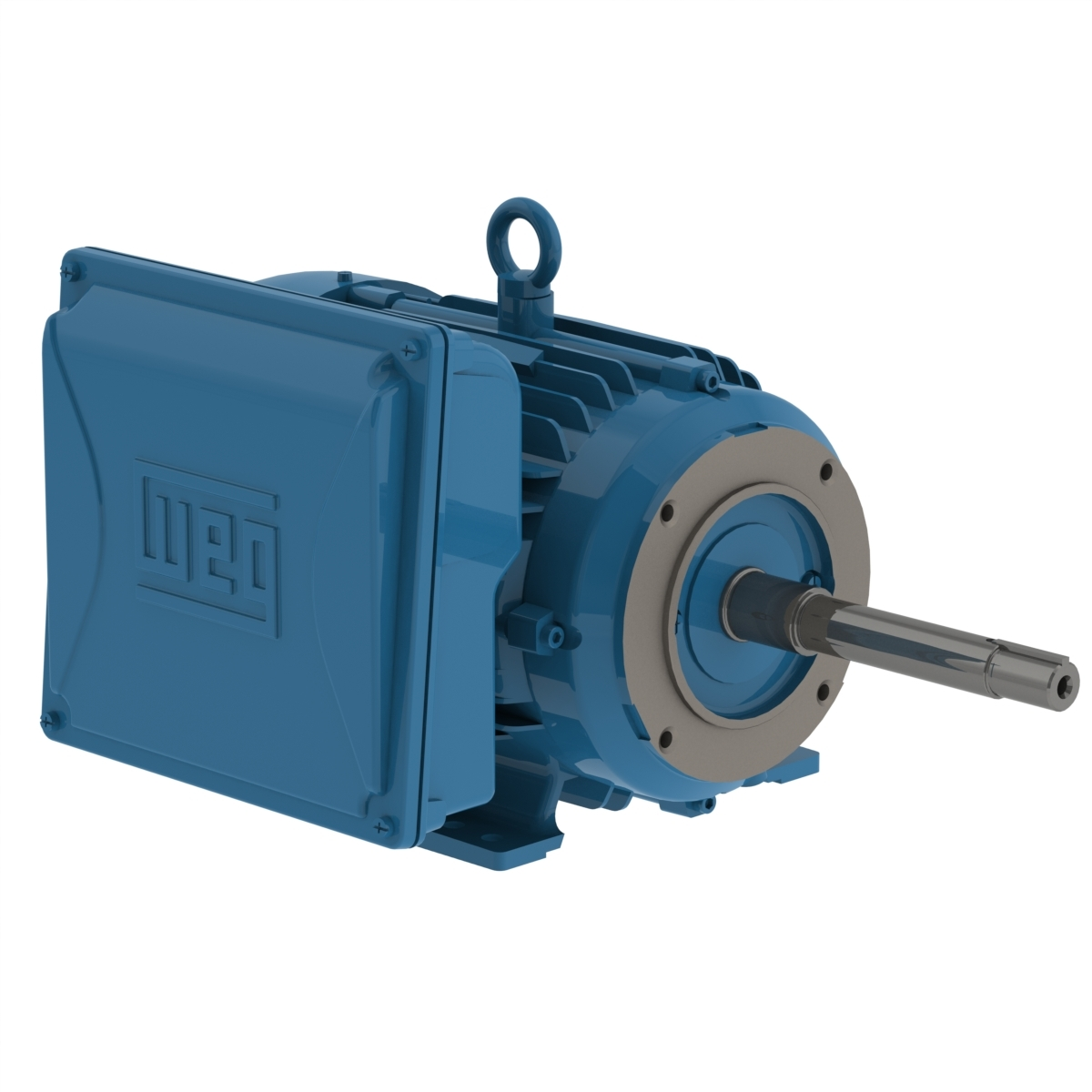

WEG 00318ES1B184JP-W22 Electric Motor, 3Hp, 60Hz, 1800 Rpm | BC3HED

WEG 00318ES1B184JP-W22 14314721 Pump Motor, 3 HP, 1800 RPM, 115/208/230V, TEFC, 184JP, W22 Sev Duty

Item: BC3HEDModel: 00318ES1B184JP-W22Cross Ref: 14314721
Check Availability
In Stock

Get it by Wednesday, Jul 15

€1,410.23 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Close-Coupled Pump Motor
Altitude 1000 M.A.S.L.
Ambient Temp. -20°C to +40°C
Amps 15.1-15.7/30.2A
Application Close Coupled Pump
Bearing Cap Yes
Break Down Torque 270%
Cable Press Material Sem
Cold Locked Rotor Time 14 sec.
De Bearing Seal V Ring
Degree Of Protection IP55
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 77%
Efficiency 50% 65%
Efficiency 75% 74%
Efficiency @ 100% 77%
Enclosure IC411
Enclosure Iec IP55
Enclosure Rating IC411
Enclosure Type Tefc
Fan Cover Material Steel
Fan Material Plastic
Flange C
Frame 184JP
Frame Material Cast Iron
Frame Size 182/4JP
Frequency 60 Hz
Grade Grade 1010/20
Grounding Lugs Single
Grounding Lugs Type Single
Impregnation Method Dip and Bake Polyester
Insulation Class Class F
L. R. Amps 104-108/208A , 208/108-104A
Locked Rotor Time 8 sec.
Locked Rotor Time (cold) 14 sec.
Locked Rotor Time(hot) 8 sec.
Locked Rotor Torque 290%
Lrc 6.9x(Code J)
Main Terminal Box Hole 1"
Main Terminal Box Hole Size 1"
Main Terminal Box Hole Type NPT
Main Terminal Box Type NPT
Material Carbon Steel
Moment Of Inertia (j) 0.3735 lbs.-sq. ft.
Mounting F-1
Mounting Arrangement F1
Nde Bearing Seal V Ring
Nema Frame NEMA 182-4JP
Nema Mount C Face With Base
No Load Amps 7.76-9/18A
No. Of Poles 4
Noise Level 60 dBA
Output Hp 3 hp
Output Kw 2.2 kW
Output Rating 3 hp
Output Speed 1745 RPM
Overload Protection No
Overload Protector (phenolic) Without Overload Protector
Painting Only Primer
Phase 1
Power Factor 100% 0.82
Power Factor 50% 0.74
Power Factor 75% 0.8
Replaces 00318ES1B184JP
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Locking Device Without
Shaft Material Carbon Steel
Slip 3.06%
Speed 1700-1800 RPM , 1745 RPM
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Thermal Protection None
Torque 9.03 lbs.-ft.
Tropicalized Painting Without
Voltage 115/208-230V , 115/208/230V AC

Shipping Info:

Ship weight (kg) 58.95
Ship height (cm)32.26
Ship length (cm)52.83
Ship width (cm)37.08
Country of OriginUS
