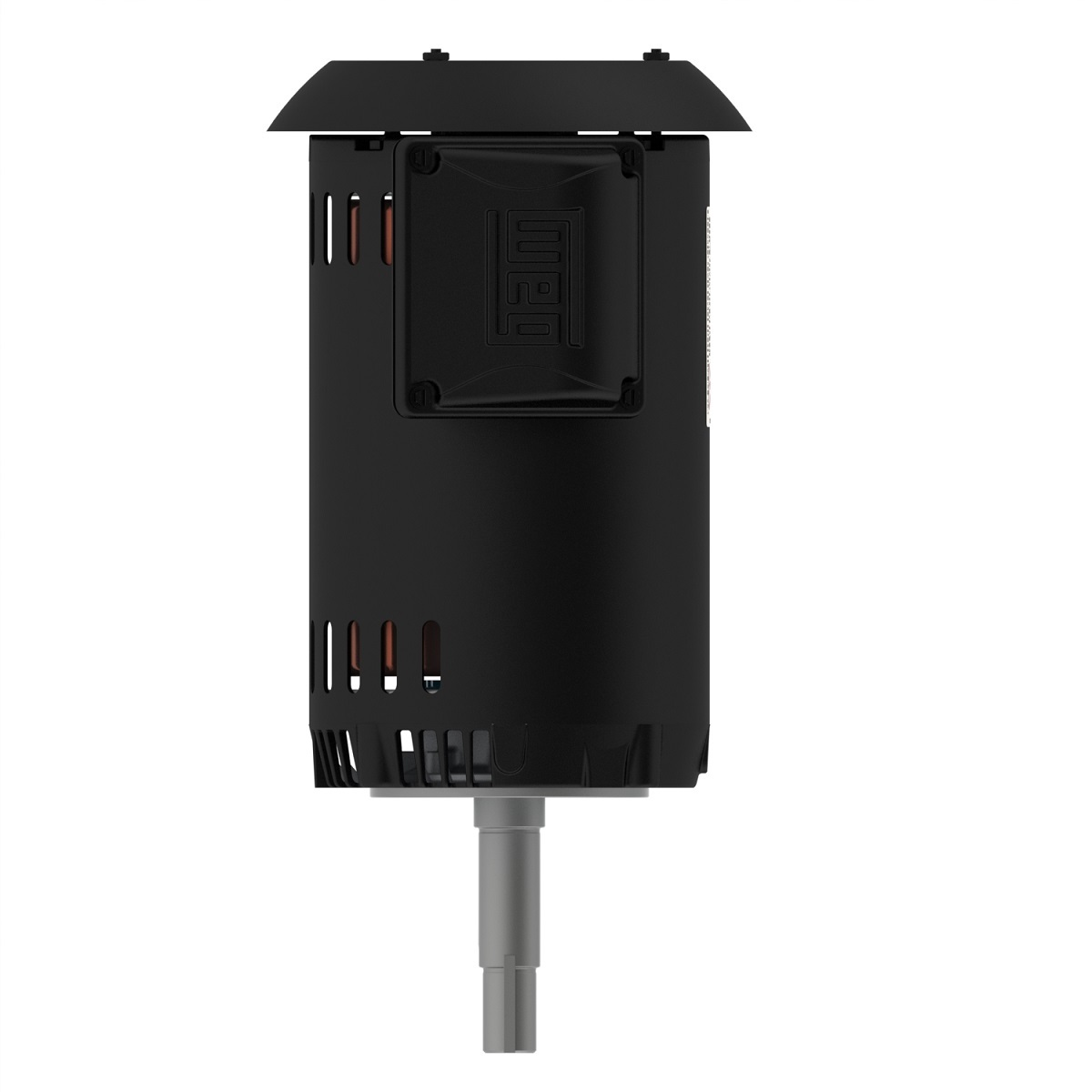

WEG 00218OT3E145JMV-S 13482592 Pump Motor, Close Coupled JM/JP, 2 HP, 4 Poles, 143/5JM Frame, 3 Phase, 230/460//190-220/380-415 V, 60 Hz, IC01-ODP, Footless
Get it by Tuesday, Aug 25
€789.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Close-Coupled Pump Motor |
| Altitude | 1000 M.A.S.L. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 2.69/5.38A |
| Application | Closed Coupled |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Body Design | Rolled Steel |
| Bolt Material | Carbon Steel |
| Break Down Torque | 320% |
| Cable Press Material | Sem |
| Cold Locked Rotor Time | 0 sec. |
| Connection Cables Quantity | 9 |
| Ct Speed Range | 5:1 |
| De Bearing Seal | No |
| Design | B |
| Drip Cover | With |
| Duty Cycle | S1 |
| Efficiency | 86.5% |
| Efficiency 50% | 85.5% |
| Efficiency 75% | 86.5% |
| Efficiency @ 100% | 86.5% |
| Enclosure | IC01 |
| Enclosure Nema Type | Open Dripproof |
| Enclosure Rating | IC01 |
| Enclosure Type | ODP |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | C |
| Frame Material | Rolled Steel |
| Frame Size | 143/5JM |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs | Single |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip and Bake Polyester |
| Insulation Class | Class F |
| Inverter Rating | Inverter Ready |
| L. R. Amps | 20.6A , 20.7/41.4A |
| Locked Rotor Time (cold) | 30 sec. |
| Locked Rotor Time(hot) | 0 sec. , 17 sec. |
| Locked Rotor Torque | 260% |
| Lrc | 6.7x(Code J) |
| Main Terminal Box Hole | 1.118" |
| Main Terminal Box Hole Size | 1.118" |
| Material | Carbon Steel |
| Moment Of Inertia (j) | 0.1168 lbs.-sq. ft. |
| Mounting | W-6 |
| Mounting Arrangement | W6 |
| Mounting Orientation | Vertical |
| Nde Bearing Seal | No |
| Nema Frame | NEMA 143-5JM |
| Nema Mount | C Face No Base |
| No Load Amps | 1.38/2.75A |
| No. Of Poles | 4 |
| Noise Level | 52 dBA |
| Output Hp | 2 hp |
| Output Kw | 1.5 kW |
| Output Rating | 2 hp |
| Output Speed | 1740 RPM |
| Overload Protection | No |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Phase | 3 |
| Power Factor 100% | 0.81 |
| Power Factor 50% | 0.61 |
| Power Factor 75% | 0.74 |
| Resilient Base | Without |
| Rotation | CW, CCW |
| Screw Cap | Carbon Steel |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Slip | 3.33% |
| Space Heater | None |
| Speed | 1700-1800 RPM , 1740 RPM |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Torque | 6.04 lbs.-ft. |
| Tropicalized Painting | Without |
| Voltage | 190-220/230/380-415/460V , 230/460/190-220/380-415V AC , 415V |
Shipping Info:
| Ship weight (kg) | 19.8 |
| Ship height (cm) | 32.26 |
| Ship length (cm) | 52.83 |
| Ship width (cm) | 37.08 |
| Country of Origin | US |
