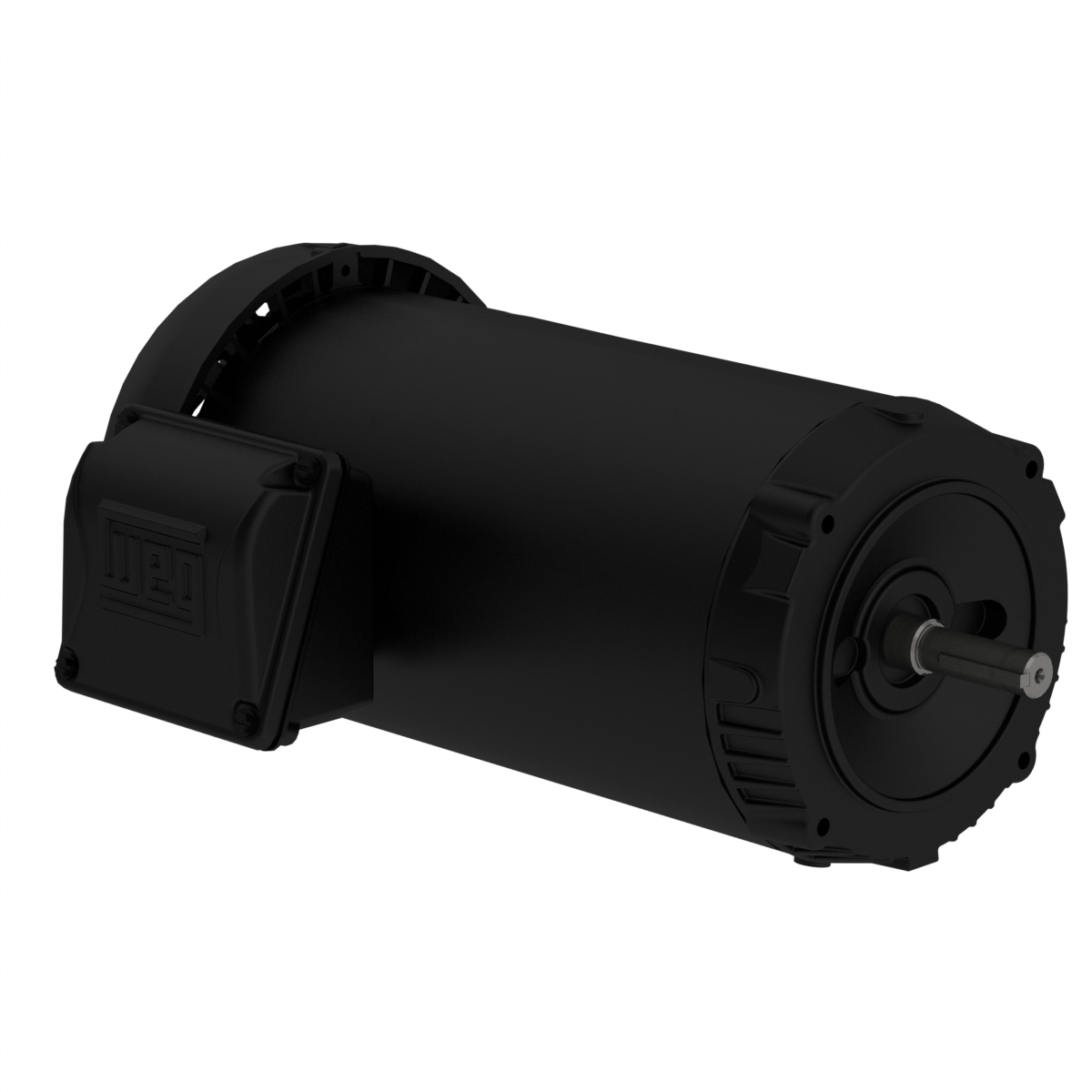

WEG 00218ET3H56CFL-S 15459818 General Purpose Motor, TEAO/TEFC RolLED Steel 56C Frame, 2 HP, 1745 RPM, 575 V
Get it by Friday, Aug 21
€603.70 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 2.18A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break Down Torque | 300% |
| Cold Locked Rotor Time | 27 sec. |
| Connection Cables Quantity | 3 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | B |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC411 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | C |
| Frame | 56C |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grade | Grade 1010/20 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 17.8A |
| Locked Rotor Time(hot) | 15 sec. |
| Locked Rotor Torque | 270% |
| Lrc | 8.2x(Code K) |
| Main Terminal Box Hole Size | 0.881" |
| Material | Carbon Steel |
| Moment Of Inertia | 0.1296 lbs.-sq. ft. |
| Mounting | Footless, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 1.12A |
| No. Of Poles | 4 |
| Noise Level | 52 dBA |
| Output Rating | 1.5 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 1745 RPM |
| Rated Torque | 6.02 lbs.-ft. |
| Rated Voltage | 575V |
| Resilient Base | Without |
| Rotation | CW And CCW |
| Service Factor | 1.15 |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 3.06% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 575V |
Shipping Info:
| Ship weight (kg) | 18.54 |
