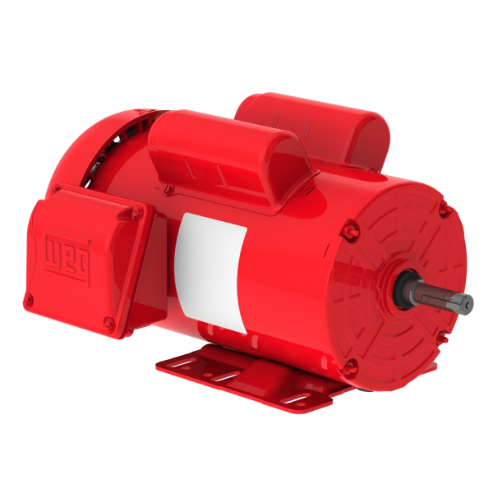

WEG 00218ES1RFD145T-S Electric Motor, 2Hp, 60Hz, 1800 Rpm | BC3HCV

WEG 00218ES1RFD145T-S 14809121 Farm Duty Motor, 2 HP, 4 Poles, 143/5T Frame, 1 Phase, 115/230V, 60 Hz, Foot-mounted

Item: BC3HCVModel: 00218ES1RFD145T-SCross Ref: 14809121
Check Availability
In Stock

Get it by Tuesday, Sep 1

€689.59 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item General Purpose Motor
Altitude 1000 M.A.S.L. , 1000 MASL
Ambient Temp. -20°C to +40°C
Amps 10/20A , 20/10A
Balancing Method 1/2 Key , 1/2" Key
Bearing Cap No
Bolt Material Carbon Steel
De Bearing Seal V Ring
Degree Of Protection IP55
Design L
Drain Rubber, Automatic
Drip Cover Without
Duty Cycle S1
Efficiency 50% 66% , 70%
Efficiency 75% 76%
Efficiency @ 1 % 82%
Efficiency @ 100% 78.5%
Efficiency @ 75 % 76%
Enclosure IC411
Enclosure Rating IC411
Enclosure Type Tefc
Fan Cover Material Polymer , Steel
Fan Material Plastic
Flange Without
Flange Type Without
Frame 143/5T
Frame Material Rolled Steel
Frequency 60 Hz
Grade Grade 1010/20
Grounding Lugs Single
Grounding Lugs Type Single
Hot Locked Rotor Time 6 sec.
Impregnation Method Dip And Bake Polyester
Insulation Class Class F
L. R. Amps 160/80A , 80/160A
Locked Rotor Time 6 sec.
Locked Rotor Time (cold) 10 sec.
Locked Rotor Time(hot) 6 sec.
Locked Rotor Torque 260%
Lrc 8.0X(Code L) , 8x(Code L)
Main Terminal Box Hole 1.118"
Main Terminal Box Hole Size 1.118"
Material Carbon Steel
Moment Of Inertia 0.1614 lbs.-sq. ft.
Moment Of Inertia (j) 0.1614 lbs.-sq. ft.
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Speed 1745 RPM
Mounting F-1 , Foot Mounted
Nde Bearing Seal No
No Load Amps 12.2/6.1A , 6.1/12.2A
No. Of Poles 4
Noise Level 54 dBA
Output 2 hp
Output Rating 2 hp
Overload Protection Manual
Overload Protector Manual
Overload Protector (phenolic) Manual
Painting Only Primer , RAL3003 207N (ISO 12944-C2)
Phase 1
Power Factor 100% 0.82
Power Factor 50% 0.66
Power Factor 75% 0.76
Power Factor @ 1 % 78.5
Power Factor @ 50 % 70
Power Factor @ 75 % 76
Resilient Base Without
Rotation CW, CCW
Screw Cap Carbon Steel
Service Factor 1.15
Shaft Material Carbon Steel
Shaft Material Grade Grade 1040/45
Slip 3.06%
Speed 1700-1800 RPM , 1745 RPM
Starting Method Direct On Line
Synchronous Speed 1800 RPM
Temp. Rise 80 K
Terminal Block Without
Terminal Box Left Position
Torque 6.02 lbs.-ft.
Tropicalized Painting Without
Voltage 115/230V , 115/230V AC

Shipping Info:

Ship weight (kg) 25.65
Ship height (cm)77.98
Ship length (cm)40.48
Ship width (cm)85.09
Country of OriginBR
