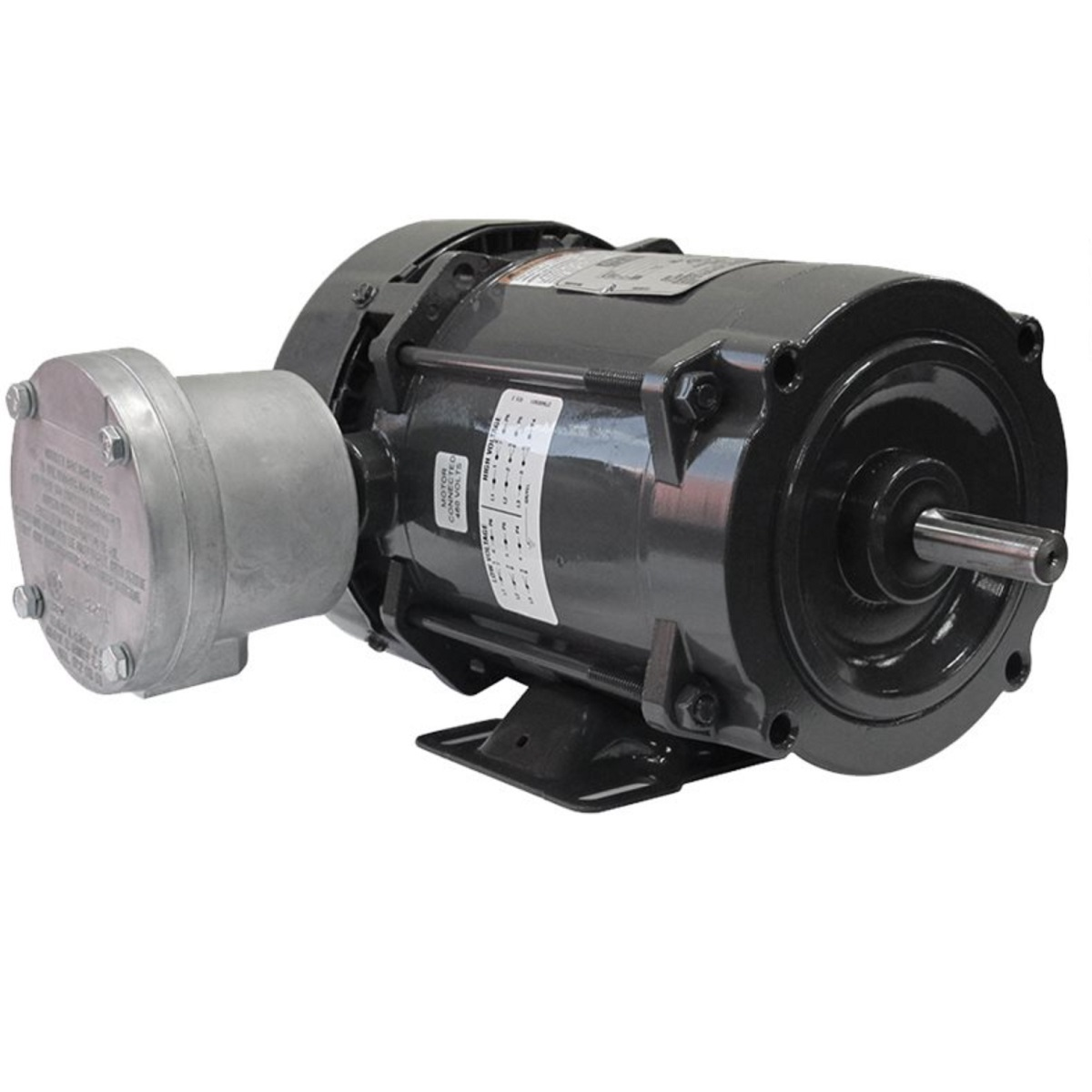

WEG 00158XT3E56H 16554607 Electric Motor, 1.5Hp, 60Hz, 1800 Rpm
Get it by Thursday, Dec 18
€1,202.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hazardous Location Motor |
| Composition | Steel |
| Duty Cycle | S1 |
| Efficiency | NEMA Premium Efficiency |
| Enclosure | Tefc |
| Flange | C |
| Frame | 56H |
| Frame Material | Rolled Steel |
| Frame Size | 56H |
| Frequency | 50/60 Hz |
| Hp | 1 1/2 hp |
| Hz | 60 Hz |
| Insulation Class | Class F |
| Mounting Type | Foot Mounted |
| No. Of Poles | 4 |
| Output Rating | 1 1/2 hp |
| Phase | 3 |
| Rotation | CW/CCW |
| Rpm | 1700-1800 RPM |
| Ships Factory Direct | No |
| Synchronous Speed | 1800 RPM |
| Terminal Box | Left Position |
| Voltage | 208-230/460V |
Shipping Info:
| Ship weight (kg) | 18.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Frame | Nameplate Rpm | Hp | Motor Application | Hazardous Location Class | Synchronous Speed | Flange | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00118XT3E143T | 230/460/380V | 143T | 1765 RPM | 1 hp | Hazardous Location | 1 C, D / 2 F, G | 1800 RPM | Without | €1,315.11 | |
| 00156XT3E143T | 230/460/380V | 143T | 3500 RPM | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | 3600 RPM | Without | €1,328.90 | |
| 00158XT3E145T | 230/460/380V | 145T | 1760 RPM | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | 1800 RPM | Without | €1,363.94 | |
| 00152XT3E182T | 230/460/380V | 182T | 1165 RPM | 1 1/2 hp | Hazardous Location | 1 C, D / 2 F, G | 1200 RPM | Without | €1,706.85 | |
| 00236XT3E145T | 230/460/380V | 145T | 3480 RPM | 2 hp | Hazardous Location | 1 C, D / 2 F, G | 3600 RPM | Without | €1,362.00 | |
| 00218XT3E145T | 230/460/380V | 145T | 1750 RPM | 2 hp | Hazardous Location | 1 C, D / 2 F, G | 1800 RPM | Without | €1,404.90 | |
| 00212XT3E184T | 230/460/380V | 184T | 1165 RPM | 2 hp | Hazardous Location | 1 C, D / 2 F, G | 1200 RPM | Without | €1,719.18 |
