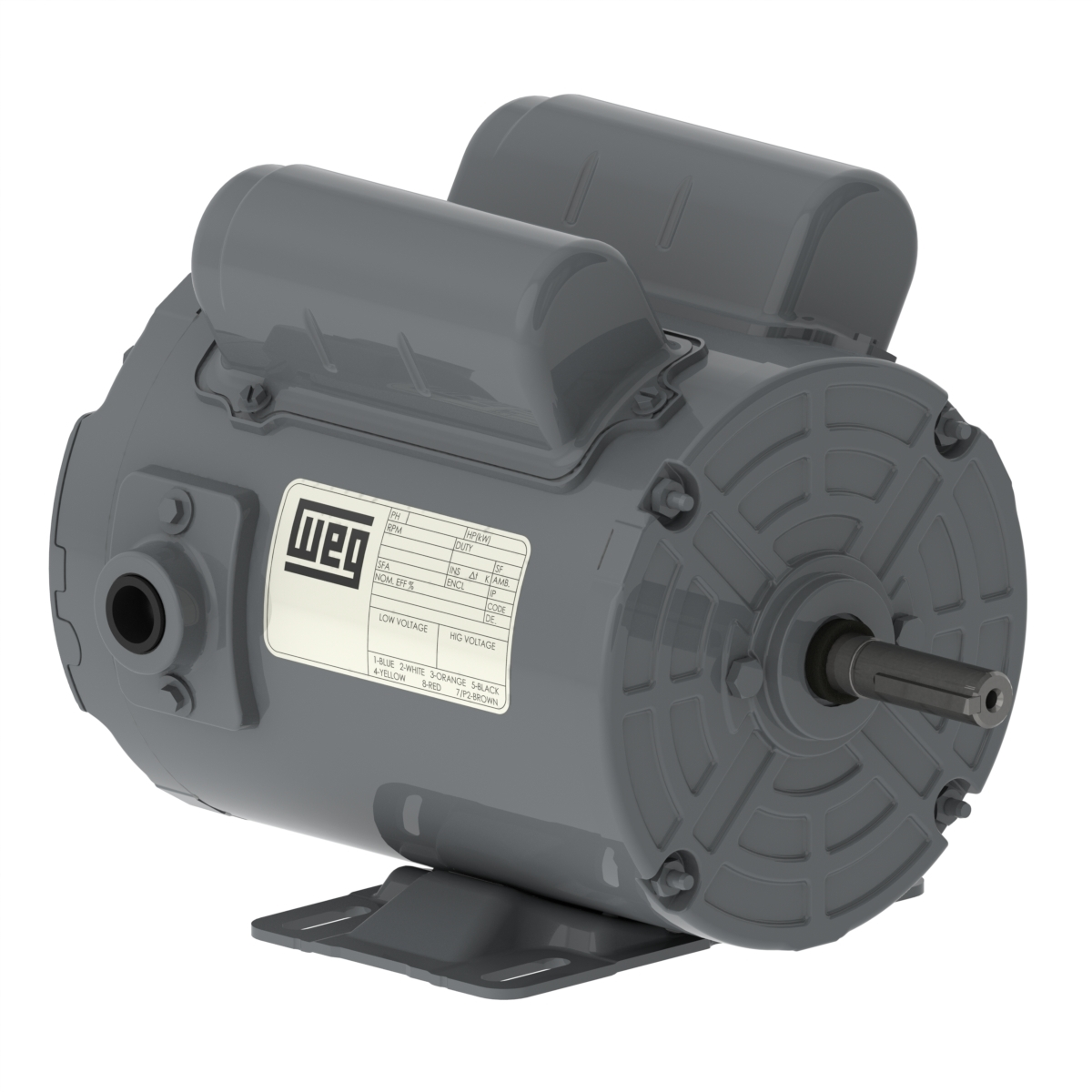

WEG 00136AS1RAF56Z-S 13255347 Electric Motor, 1Hp, 60Hz, 3600 Rpm
Get it by Monday, Dec 22
€547.63 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Electric Motor |
| Altitude | 1000 MASL |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2" Key |
| Bearing Cap | Yes |
| Bolt Material | Carbon Steel |
| Break-down Torque | 280% |
| Cold Locked Rotor Time | 14 sec. |
| Composition | Steel |
| Design | N |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Efficiency At 1 % | 92% |
| Efficiency At 50 % | 82% |
| Efficiency At 75 % | 88% |
| Enclosure Type | Teao |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange Type | Without |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs | Single |
| Hot Locked Rotor Time | 8 sec. |
| Hp | 1 hp |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | Class F |
| L. R. Amps | 85/47.4-42.5A |
| Locked Rotor Torque | 280% |
| Lrc | 8.4X(Code L) |
| Main Terminal Box Hole Size | 1/2" |
| Main Terminal Box Hole Type | NPT |
| Moment Of Inertia | 0.0472 lbs.-sq. ft. |
| Motor Enclosure Design | Totally Enclosed Air Over |
| Motor Speed | 3500 RPM |
| Mounting | Foot Mounted |
| No Load Amps | 5.5/2.37-2.75A |
| No. Of Poles | 2 |
| Noise Level | 68 dBA |
| Output | 1 hp |
| Output Rating | 1 hp |
| Painting | RAL7031 207N (ISO 12944-C2) |
| Phase | 1 |
| Power Factor At 1 % | 70 |
| Power Factor At 50 % | 55 |
| Power Factor At 75 % | 64 |
| Rated Current | 10.1/5.64-5.06A |
| Rated Torque | 1.5 lbs.-ft. |
| Rated Voltage | 115/208-230V AC |
| Resilient Base | Without |
| Rotation | CW/CCW |
| Rpm | 3400-3600 RPM |
| Service Factor | 1.15 |
| Shaft Material | Carbon Steel |
| Shaft Material Grade | Grade 1040/45 |
| Ships Factory Direct | No |
| Slip | 2.78% |
| Starting Method | Direct On Line |
| Synchronous Speed | 3600 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Without |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 115/208-230V AC |
Shipping Info:
| Ship weight (kg) | 13.05 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Model | Voltage | Hp | Frame | Break-down Torque | No Load Amps | Mounting | Output Rating | Design | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 00156AS1RAF56Z-S | 115/208-230V AC | 1 1/2 hp | 56 | 250% | 4/0-2A | Foot Mounted | 1 1/2 hp | L | €717.05 | |

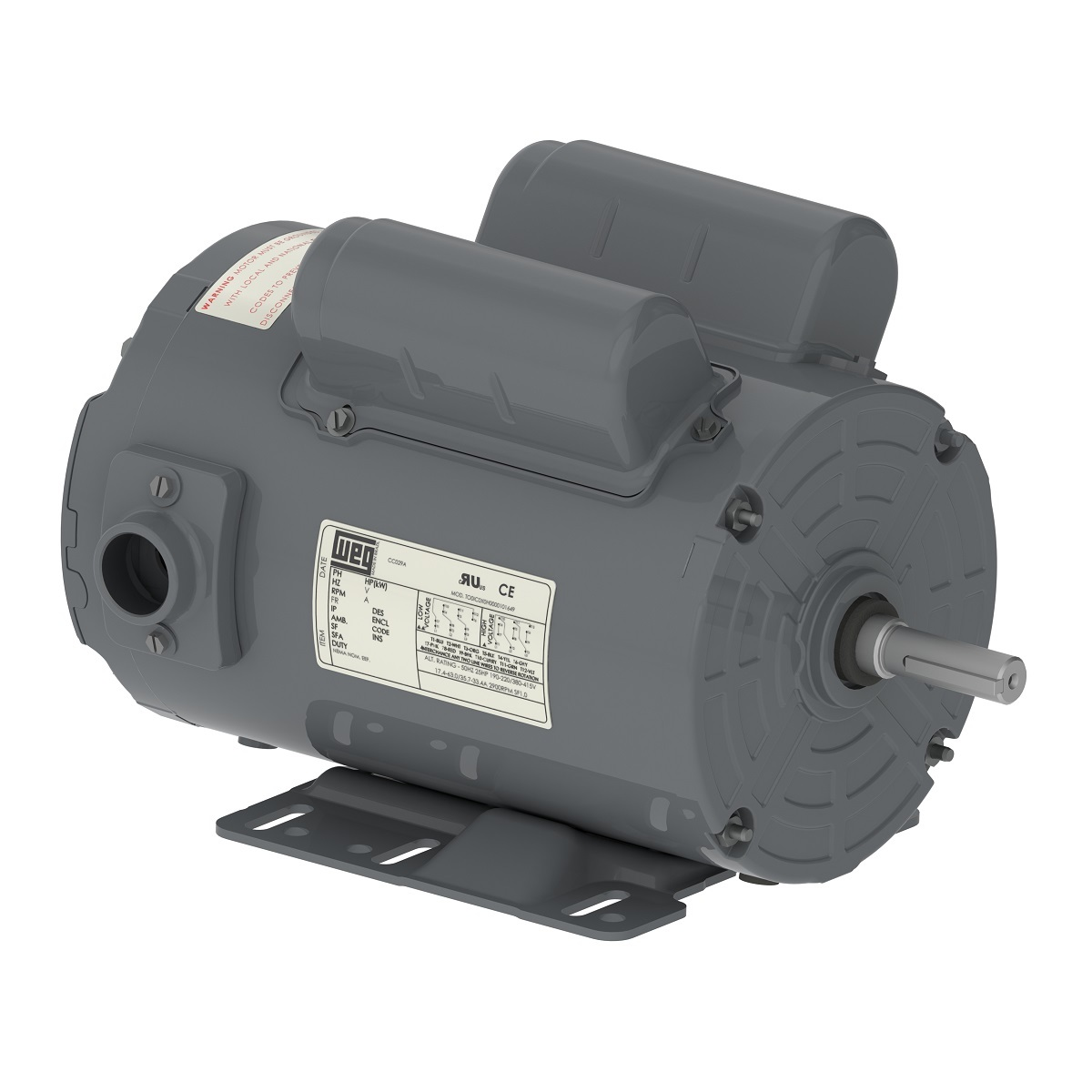

| 00336AS1RAF145TZ-S | 208-230V AC | 3 hp | 143/5T | 250% | 0-4A | Foot Mounted | 3 hp | L | €975.93 | |
| 00236AS1RAF143TZ-S | 115/208-230V AC | 2 hp | 143/5T | 250% | 5/0-2.5A | Foot Mounted | 2 hp | L | €934.17 | |
| .7536AS1RAF56Z-S | 115/208-230V AC | 3/4 hp | 56 | 290% | 4/0-2A | Foot Mounted | 3/4 hp | N | €471.27 | |
| 00156AS1RAF143TZ-S | 115/208-230V AC | 1 1/2 hp | 143/5T | 250% | 4/0-2A | Foot Mounted | 1 1/2 hp | L | €767.14 |
