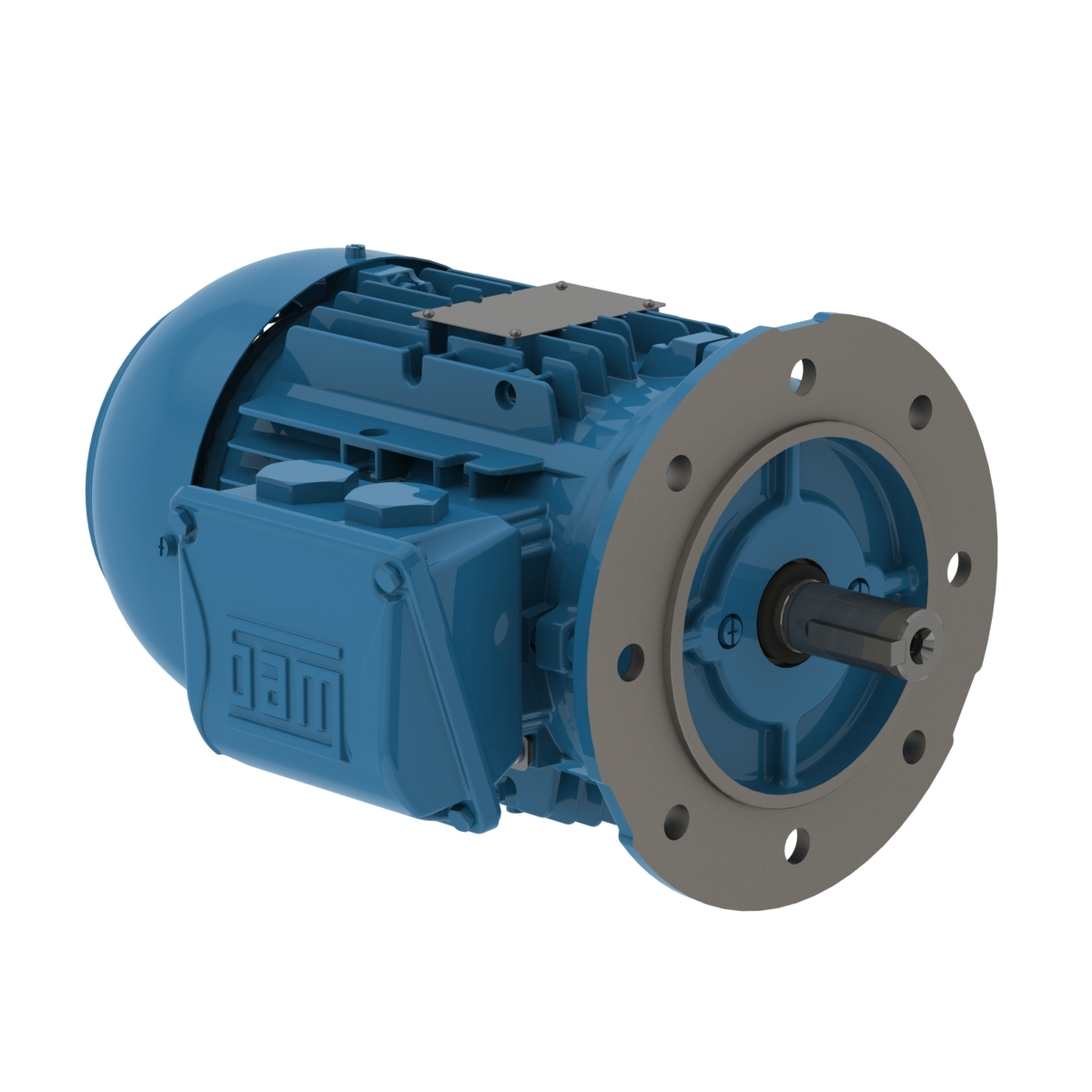

WEG 00118ET3WALR90SFF-W2 14446725 General Purpose Motor, Aluminum 90S/L Frame, 1.5 HP, 1755 RPM, 460V, Footless
Get it by Tuesday, Aug 25
€631.13 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Amps | 25A |
| Balancing Method | 1/2 Key |
| Bearing Cap | Yes |
| Break Down Torque | 350% |
| Cold Locked Rotor Time | 27 sec. |
| Connection Cables Quantity | 6 |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | N |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | S1 |
| Enclosure Rating | IC411 |
| Enclosure Type | Totally Enclosed Fan Cooled |
| Fan Cover Material | Steel |
| Fan Material | Plastic |
| Flange | Ff |
| Frame | 90s/L |
| Frame Material | Aluminum |
| Frequency | 60 Hz |
| Grade | Grade 316 |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 17.4A |
| Locked Rotor Time(hot) | 15 sec. |
| Locked Rotor Torque | 290% |
| Lrc | 8.5 |
| Main Terminal Box Hole | 2 x M25 x 1.5 |
| Material | Stainless Steel |
| Moment Of Inertia | 0.1305 lbs.-sq. ft. |
| Mounting | Footless, B5R(D) |
| Nde Bearing Seal | V Ring |
| No Load Amps | 1.22A |
| No. Of Poles | 4 |
| Noise Level | 51 dBA |
| Output Rating | 1.1 kW |
| Overload Protector (phenolic) | Without Overload Protector |
| Painting | Only Primer |
| Rated Speed | 1755 RPM |
| Rated Torque | 4.49 lbs.-ft. |
| Rated Voltage | 460V |
| Rotation | CW And CCW |
| Shaft Locking Device | Without |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 2.5% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Block | Bmc 6 Pins |
| Terminal Box | Left Position |
| Tropicalized Painting | Without |
| Voltage | 460/220-240/380-415V |
Shipping Info:
| Ship weight (kg) | 19.17 |
