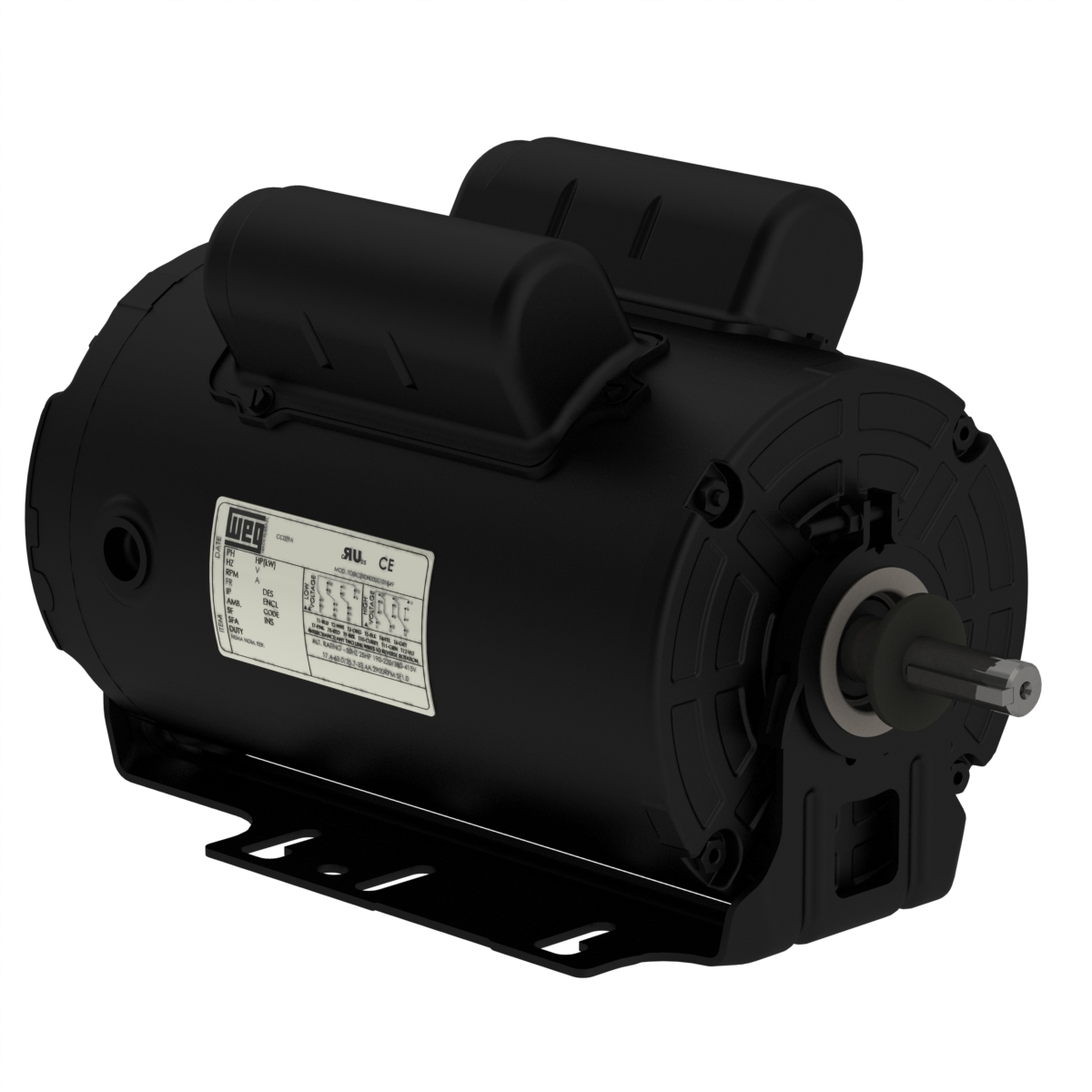

WEG 00118AS1BRBPF56-S 15412616 Farm Duty Motor, Poultry Fan, 1 HP, 0.75 kW, 1800 RPM, 56 Frame, 115/208-230 V
Get it by Tuesday, Aug 25
€518.99 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | AC Motor |
| Altitude | 1000 m.a.s.l. |
| Ambient Temp. | -20°C to +40°C |
| Balancing Method | 1/2 Key |
| Bearing Cap | No |
| Bolt Material | Carbon Steel |
| Break Down Torque | 270% |
| Cold Locked Rotor Time | 14 sec. |
| De Bearing Seal | V Ring |
| Degree Of Protection | IP55 |
| Design | L |
| Drain | Rubber, Automatic |
| Drip Cover | Without |
| Duty Cycle | Cont.(S1) |
| Enclosure Rating | IC418 |
| Enclosure Type | Teao |
| Fan Cover Material | Without Fan Cover |
| Fan Material | Without Fan |
| Flange | Without |
| Frame | 56 |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Grounding Lugs Type | Single |
| Impregnation Method | Dip And Bake Polyester |
| Insulation Class | F |
| L. R. Amps | 91.8/50.4-45.9A |
| Locked Rotor Time(hot) | 8 sec. |
| Locked Rotor Torque | 280% |
| Lrc | 6.7x(Code M) |
| Moment Of Inertia | 0.1044 lbs.-sq. ft. |
| Mounting | Foot-Mounted, F-1 |
| Nde Bearing Seal | No |
| No Load Amps | 9.6/4.14-4.8A |
| No. Of Poles | 4 |
| Output Rating | 0.75 kW |
| Overload Protector (phenolic) | Automatic |
| Painting | Only Primer |
| Rated Amps | 13.7/7.52-6.85A |
| Rated Speed | 1730 RPM |
| Rated Torque | 3.04 lbs.-ft. |
| Rated Voltage | 115V/208-230V |
| Resilient Base | With |
| Rotation | CW And CCW |
| Service Factor | 1.15 |
| Shaft Material | SAE 1040/45 Carbon Steel |
| Slip | 3.89% |
| Starting Method | Direct On Line |
| Synchronous Speed | 1800 RPM |
| Temp. Rise | 80 K |
| Terminal Box | Without Terminal Box |
| Tropicalized Painting | Without |
| Voltage | 115V/208-230V |
Shipping Info:
| Ship weight (kg) | 14.9 |
| Country of Origin | MX |
