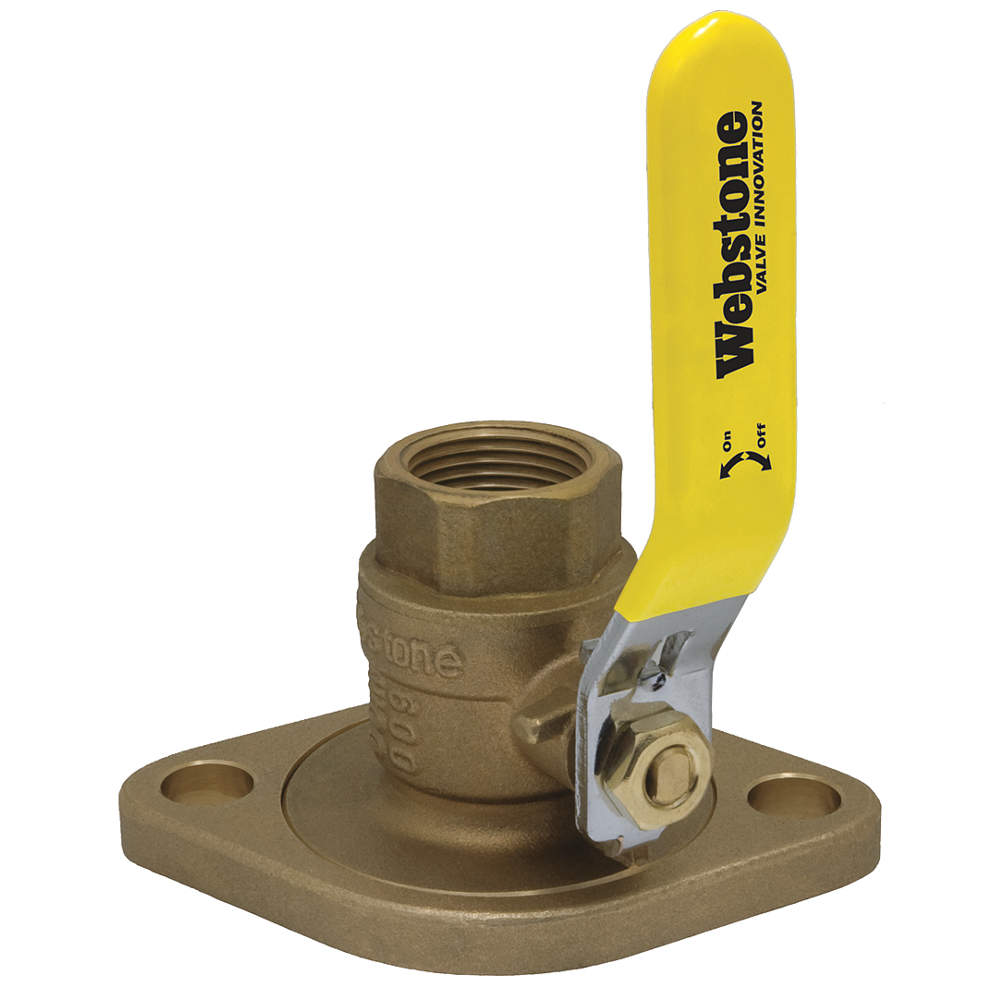

WEBSTONE 41405HV Rotating Flanged Ball Valve 1-1/4in
Item: AD3PQVModel: 41405HVCross Ref: 40L194
7 In Stock
Ships within 2 days via
10.00% off
€123.05 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotating Flanged Ball Valve |
| 3-a Compliance | Not Rated |
| Agency Compliance | Not Rated |
| Average Surface Roughness | Not Applicable |
| Ball Material | Brass |
| Ball Port Style | Full Port |
| Ball Valve Basic Body Material | Brass |
| Ball Valve Product Group | Manual |
| Body Material | Brass |
| Compatible With Brand | Nibco |
| Compatible With Series | 4140 Series |
| Connection Gender - Side 1 | Female |
| Connection Gender Side 2 | Female |
| Connection Size | 1 1/4" x 1 1/4" |
| Connection Size - Side 1 | 1 1/4" |
| Connection Size - Side 2 | 1 1/4" |
| Connection Type - Side 1 | IPS |
| Connection Type - Side 2 | Flange |
| Fits Pump | Any Standard Flanged Pump |
| Flange Material | Brass |
| For Media | Gas, Oil, Water |
| Handle | Tee |
| Handle Color | Yellow |
| Handle Height | 2.94" |
| Handle Material | Steel |
| Included Mounting | Not Applicable |
| Includes | Adjustable Packing Gland, Bolts, Nuts |
| Material | Brass |
| Max. Operating Temp. | 250 Degrees |
| Max. Operating Temp. | 250° |
| Max. Pressure | 600 psi |
| Max. Pressure (combustible Gas) | 600 psi |
| Max. Pressure (cwp) | 600 psi |
| Media Temperature Range | -20°F to +100°F |
| Nominal Valve Size | 1 1/4" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Overall Length | 3.25" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1.25" |
| Pipe Type | FNPT |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Stem Material | Brass |
| Stem Type | Blowout Resistant |
| Vacuum Service Rating | Not Applicable |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Design | Rotating Flange |
| Valve Series | 4140 |
| Valve Type | Three Way Ball |
| Vented Ball Valve | Not Applicable |
Shipping Info:
| Ship weight (kg) | 1.08 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 17.02 |
| Ship width (cm) | 11.43 |
| HS code | 8481801085 |
| Country of Origin | CN |
Product Variants
| Model | Pipe Size | Overall Length | Pipe Type | Max. Pressure | Material | Seal Material | Body Material | Flange Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 41403 | - | 2.38" | - | 600 psi | Brass | PTFE | Brass | Brass | €94.55 | |
| 41404HV | - | 3.06" | - | 600 psi | Brass | PTFE | Brass | Brass | €114.06 | |
| 41406HV | 1.5" | 4" | FNPT | 600 psi | Brass | PTFE | Brass | Brass | €185.39 | |

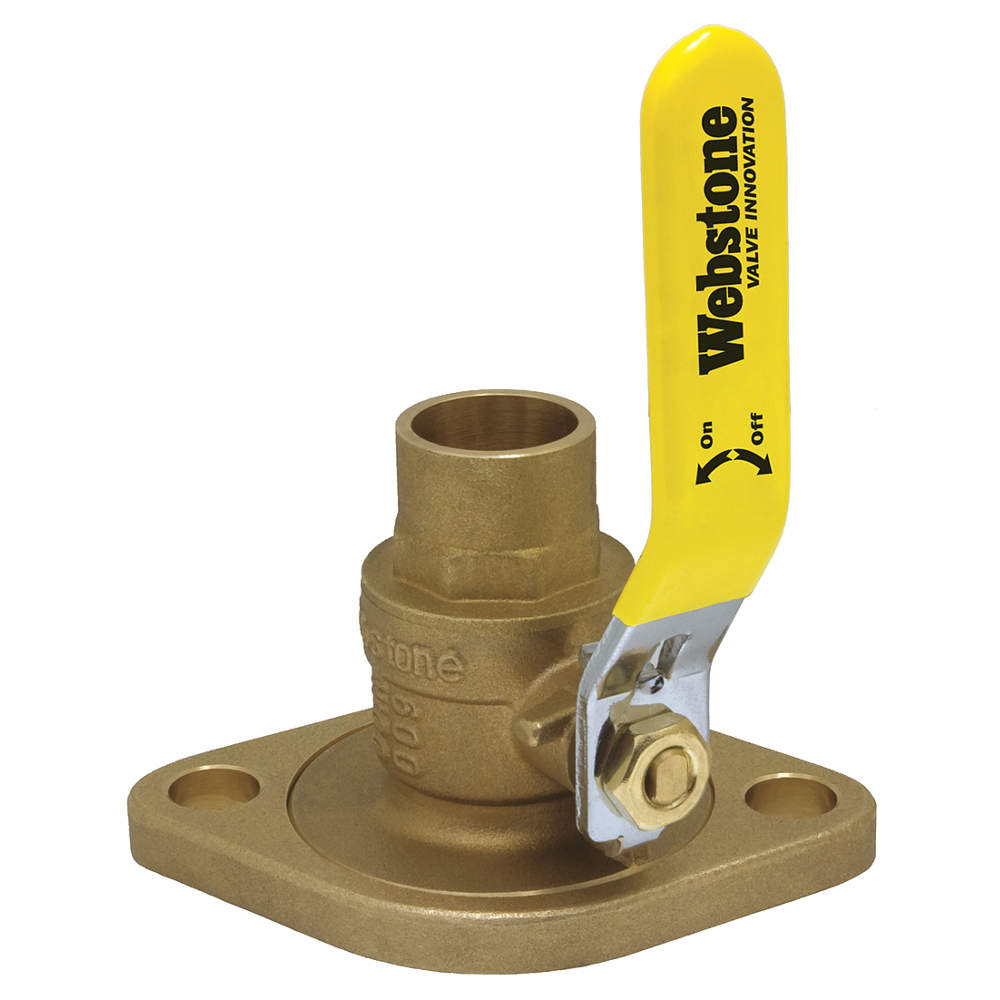

| 51403 | - | 2.56" | - | 600 psi | Brass | PTFE | Brass | Brass | €89.03 | |
| 51404HV | 1 SWT | 3.31" | - | 600 psi | Brass | PTFE | Brass | Brass | €107.32 | |
| 51405HV | 1.25" | 3.44" | SWT | 600 psi | Brass | PTFE | Brass | Brass | €129.45 | |
| 51406HV | 1.5" | 4.38" | SWT | 600 psi | Brass | PTFE | Brass | Brass | €182.43 |
