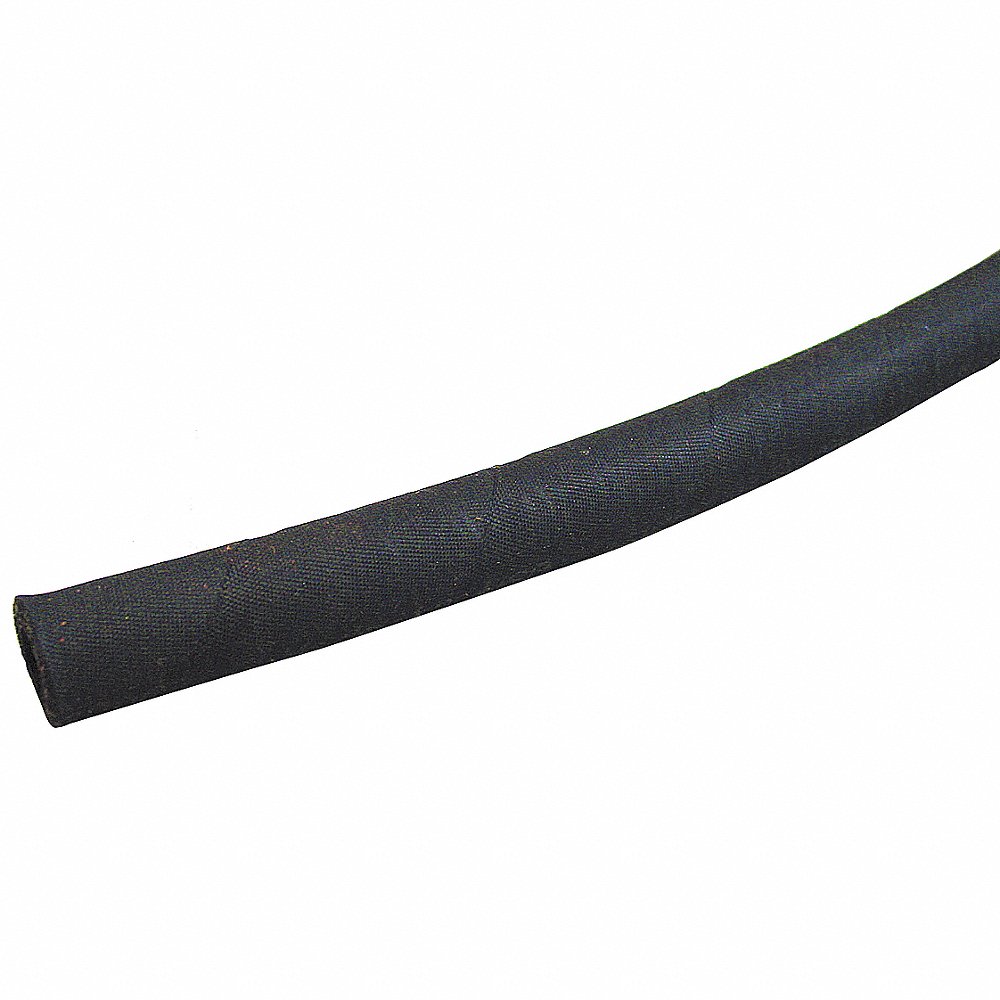

WEATHERHEAD H03920 Hydraulic Hose, 200 PSI, 1 53/64 Inch Outside Dia., 50ft. Length
Item: CJ2MKJModel: H03920Cross Ref: 20KH04
7 In Stock
Ships within 2 days via
€1,630.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose |
| Bend Radius | 4" |
| Compatible Chemicals | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lithium Grease, Lubricated Air, Min.Eral Oil, Motor Oil, Salt Water |
| Compatible Fittings | U, S, 039 K, Z |
| Cover Color | Black |
| Factory Crimp | Yes |
| For Media Type | Air, Automatic Transmission Fluid, Diesel Fuel, Ethylene Glycol, Fuel Oil, Gasoline, Hydraulic Fluid, Kerosene, Lithium Grease, Lubricated Air, Mineral Oil, Motor Oil, Water |
| Hose Color | Black |
| Hose Configuration | Bulk Hose |
| Hose Cover Material | Neoprene |
| Hose Covering Material | Synthetic Rubber |
| Hose Dash Size | -20 |
| Hose Inside Dia. | 1 1/4" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 1 53/64" |
| Hose Reinforcement | 1 Helical Cable Wire Between Two Textile Layers. 1 Fiber Braid |
| Hose Reinforcement Material | Fiber |
| Hose Tube Material | Synthetic Rubber |
| Hose Weight | 37.5 lbs. |
| Max. Length | 50 ft. |
| Max. Working Pressure @ 70f | 200 psi |
| Min. Pressure | 800 psi |
| Min. Temp. | -40°F |
| Min. Working Temp. | -40°F |
| Operating Pressure | 200 psi |
| Overall Length | 250 ft. |
| Safety Factor | 4:1 |
| Segment Code | A |
| Temp. | -40°F to +275°F |
| Tube Material | Synthetic Rubber |
| Tube Wall Thickness | 0.29" |
| Type | Crimped |
| Wall Thickness | 0.29" |
| Weight Per 100 Feet | 75 lbs. |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Temp. | Hose Cover Material | Hose Tube Material | Hose Reinforcement Material | Max. Working Pressure @ 70f | Operating Pressure | Hose Inside Dia. | Hose Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
H43020 | -40°F to +260°F | Synthetic Rubber | Nitrile | Carbon Steel | 4500 psi | 4500 psi | 1 1/4" | Black | €3,621.09 |
