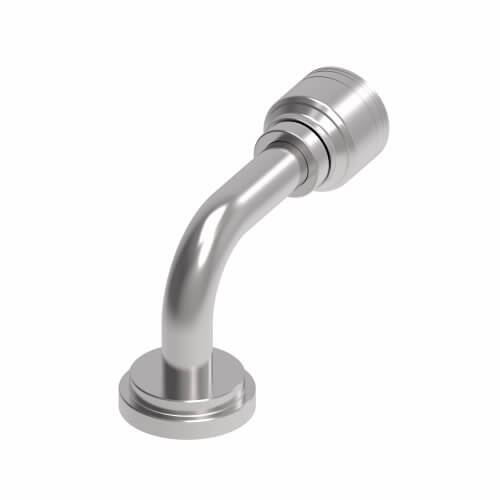

WEATHERHEAD 32Z-G92 Hydraulic Flange Fitting, 2 Inch Hydraulic Hose I.D., 2 Inch Hydraulic Flange Size
Item: AF6UZTModel: 32Z-G92Cross Ref: 20JX15
7 In Stock
Ships within 2 days via
13.00% off
€296.89 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | 90° |
| Application | General Purpose Low, Medium, And High Pressure Hydraulic |
| Assembly Type | Fitting Assembly |
| Body Material | Carbon Steel |
| Compatible Hose Inside Dia. | 2" |
| Compatible Tube Outside Dia. | 2" |
| Connection 1 Short Name | Flanged |
| Construction | Crimp |
| Construction Style | Crimp |
| Dash Size | -32 |
| Drop Dimension | 4.5 |
| End 1 Type | Flanged |
| End Type | Flanged |
| End Type 1 | Flanged |
| End Type 2 | Line, Hose, Tube |
| Finish | Trivalent Chromate, Zinc |
| Finish Plating | Dura Kote |
| Fitting Description | 90° Split Flange Tube Elbow (SAE Code 61) |
| Fitting Material | Carbon Steel |
| Fitting Shape | 90° Elbow |
| Flange Code | 61 |
| Flange Type | Code 61 |
| For Use With Hose Series | G115 Series, H017 Series, H039 Series, H114 Series, H145 Series, H146 Series, H245 Series, H324 Series, H325 Series, H350 Series, H425 Series, H545 Series, H900 Series |
| Height | 6.11" |
| Hex | 3.224" |
| Hole Dia. | 1.62" |
| Hose Cut Off Factor | 4 18/25" |
| Hose Dash Size | -32 |
| Hose Inside Dia. | 2" |
| Hydraulic Fitting Connection Type | Crimpable |
| Hydraulic Flange Size | 2" |
| Hydraulic Hose Inside Dia. | 2" |
| Inside Dia. | 1 3/4" |
| Item Type | Fitting Assembly |
| Length | 7.2" , 8.87" |
| Material | Carbon Steel |
| Plating | Zinc Yellow Dichromate Finish |
| Product Type | Hose Fittings |
| Rigid/swivel | Rigid |
| Series | Z Series |
| Style | Crimp |
| Thread Sealant | No |
| Tube Outside Dia. | 2" |
| Type | Fitting Assembly |
| Width | 3.22" |
Shipping Info:
| Ship weight (kg) | 1.65 |
| Ship height (cm) | 15.52 |
| Ship length (cm) | 22.53 |
| Ship width (cm) | 8.18 |
| HS code | 7307929000 |
| Country of Origin | US |
