Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | 180° |
| Body Material | Carbon Steel |
| Compatible Tube Outside Dia. | 0.41" |
| Connection 1 Short Name | JIC 37 |
| Construction | Reusable |
| Construction Style | Reusable |
| Dash Size | -8 |
| End 1 Size | 3/4" |
| End 1 Type | JIC 37 |
| End Gender 1 | Female |
| End Size 1 | 3/4" |
| End Type | JIC 37° & Hose Barb |
| Finish Plating | Dura-Kote |
| Finish, Coating | Trivalent Chromate Zinc |
| Fitting Description | JIC Female Swivel |
| Fitting Material | Steel |
| Fitting Shape | Straight |
| For Hose Dash Size | -8 |
| For Hose Inside Dia. | 3/8" |
| For Use With Hose Series | H059 Series, H069 Series, H166 Series, H169 Series, H229 Series, H366 Series, H569 Series |
| Height | 0.93" |
| Hex Size 1 | 22/25" |
| Hex Size 2 | 22/25" |
| Hole Dia. | 9/25" |
| Hose Fitting A Connection Type | Jic |
| Hose Fitting A Gender | Female |
| Hose Fitting A Size | 3/4" |
| Hose Fitting B Connection Type | Hose |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 3/8" |
| Hose Inside Dia. | 13/32" |
| Hydraulic Fitting Connection Type | Reusable |
| Hydraulic Fitting Thread Type | Female JIC |
| Label Set | FS-600 |
| Material Grade | Grade 12L14, Grade 12L15 |
| Max. Working Pressure @ 70f | 2000 psi |
| Overall Length | 2.82 mm |
| Plating | Zinc Yellow Dichromate Finish |
| Product Type | Hose Fittings |
| Reusable | Yes |
| Rigid/swivel | Swivel |
| Series | 247 "N" Series |
| Shape | Straight |
| Socket Hex Size | 15/16" |
| Thread Angle | 37° |
| Thread Sealant | No |
| Thread Size | 3/4"-16 |
| Thread Type | JIC |
| Tube Outside Dia. | 1/2" |
| Tube Size | 1/2" |
| Type | Fitting Assembly |
| Width | 0.93" |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Explore Products
- TSUBAKI 40NPSK1CL Attachment Link, For Nickel-Plated Steel Roller Chains, SK-1, 40, Single Strand, Steel
- WOODHEAD 1200660378 884031K05M020 Double Ended Cordset, 4 Pole, Female To Male, 22 AWG, TPE Cable, 2m
- DAYTON 4YD90 Air Filter 45 Ppi Fan Size 6 3/8
- ECONOLINE 202836-LED Lamp Box Assembly
- APPROVED VENDOR 205836BG Coupling Nut, M4x7 Thread Size, Steel, 3/8 In Wd., 7/16 In Lg., Gr. 2, Zn Chromate
- GORLITZ 3014A Pressure Gauge Flange, Stainless Steel
- GATES AX31 Cogged V-Belt
- BRENNAN INDUSTRIES N2709-LN-02-02-SS Bulkhead Adapter, 316 Stainless Steel, Compression x Tube Stub
Explore More
- KEYSHAFT
- Coolant Fed Drill Bits
- Direct Drive Blower Wheels
- Carbide Burs
- Dowel Pins
- Dishes and Petri Dishes Accessories
- ANSELL Coated Nitrile Gloves, Gray White
- LUMAPRO Miniature Incandescent Bulbs, G4 1/2 Lamp Shape
- MUELLER INDUSTRIES 101MDT Silent Check Valves
- ANVIL AS520BTB Series Welded Channels
- HOFFMAN Type 4X Flat Cover With Latch Window Enclosures
- EATON Pringle Series Arcing Parts
- MARTIN SPROCKET SK Series QD Bushings
- WATTS PWC (1-2CUFT) Series Water Filtration Systems
- HUBBELL - BRYANT Standard Duty Support Grips, Single Eye, Closed Mesh
Contact us
Contact your account manager right away to get personal advice.
We're available Monday through Friday, from 07:30 until 17:00.

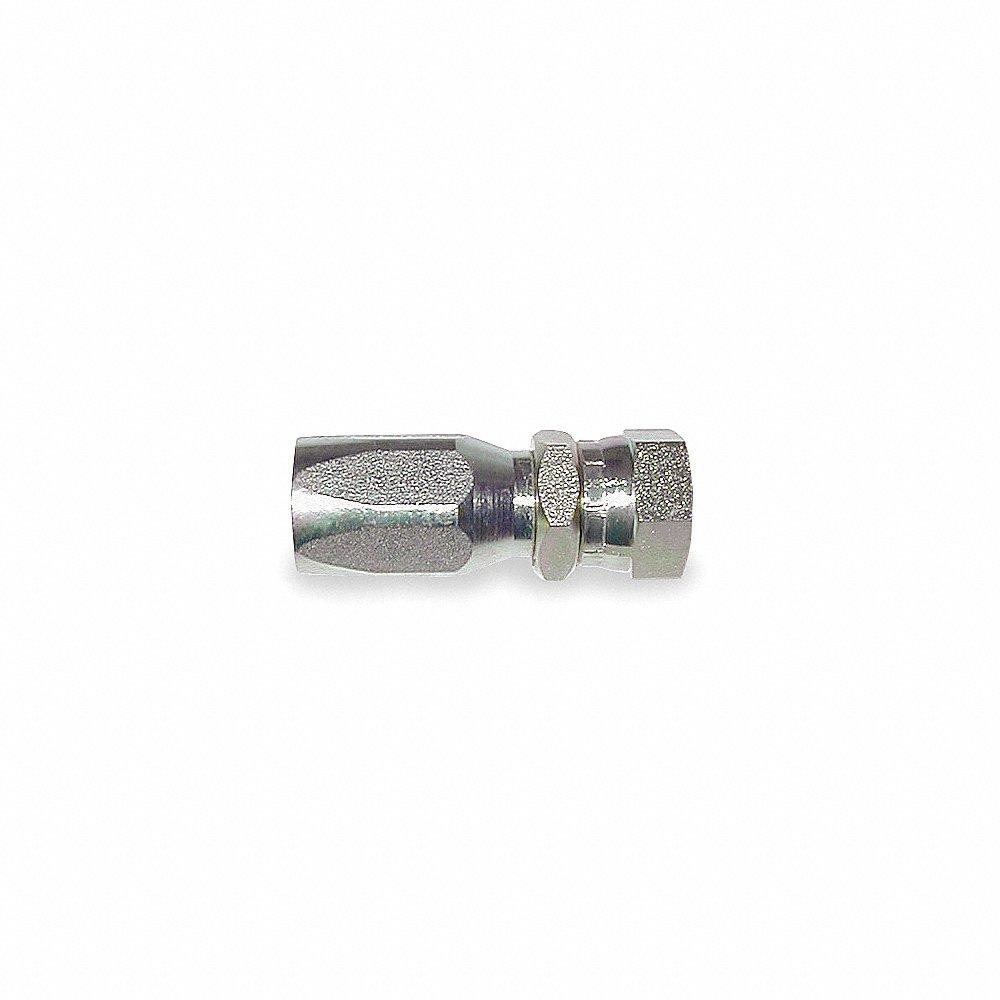

WEATHERHEAD 24708N-608 Hydraulic Hose Fitting, 3/4 x 3/8 Inch Fitting Size, JIC x Hose
