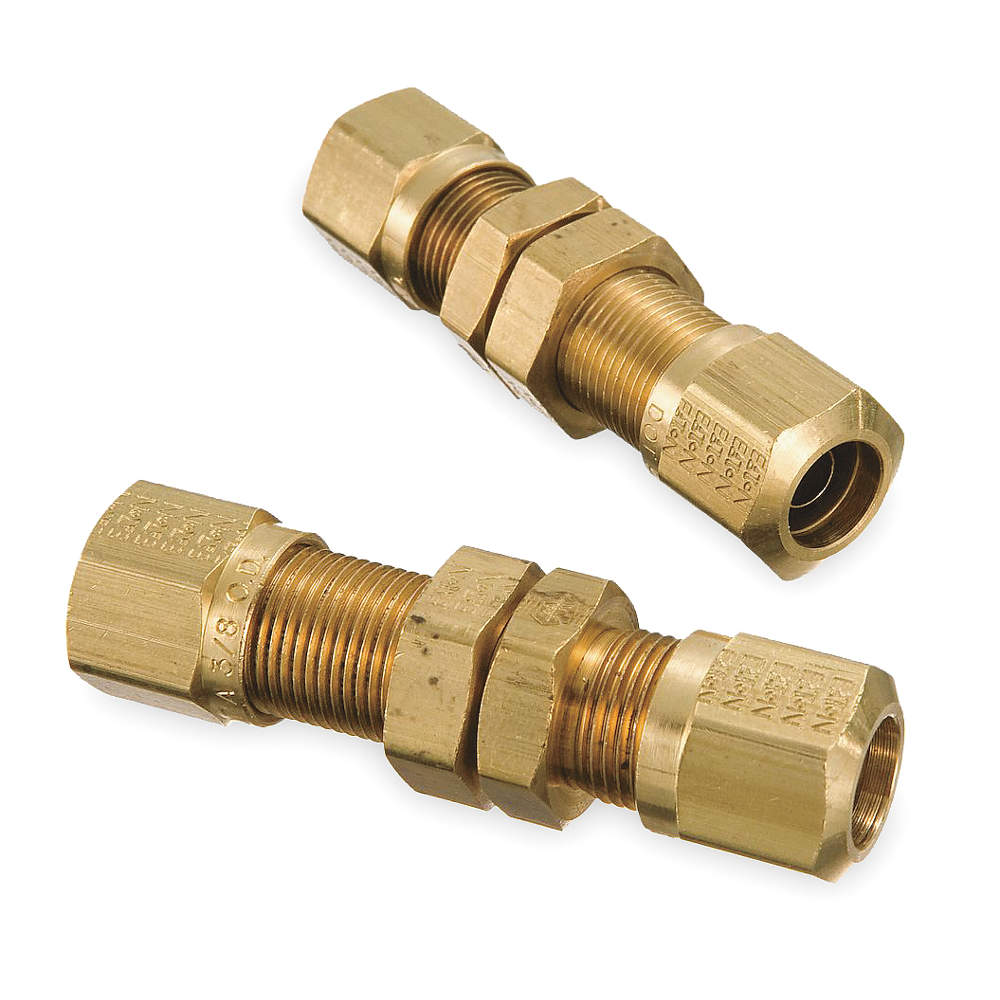

WEATHERHEAD 1474X6 Bulkhead Union 3/8 Inch Tube Size
Item: AC4FTQModel: 1474X6Cross Ref: 2ZLR9
7 In Stock
Ships within 2 days via
10.00% off
€51.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bulkhead Union |
| Application | Air |
| Compatible Tube Material | Nylon |
| Connection | Compression Nylon Tube |
| Connection Type | Compression Nylon Tube |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Compression |
| Fitting Side A Tube Outer Diameter | 3/8" |
| Fitting Side B Connection Type | Compression |
| Fitting Side B Tube Outer Diameter | 3/8" |
| Hex Size | 11/16" |
| Includes Pre-applied Thread Sealant | No |
| Material | Brass |
| Maximum Operating Pressure | 150 psi |
| Maximum Operating Temperature | 200°F |
| Minimum Operating Temperature | 40°F |
| Overall Length | 2 1/8" |
| Pressure Rating | 150 psi |
| Resistance Properties | Vibration Resistant |
| Specific Fitting Shape | Straight Bulkhead Union |
| Standards | Dot Fmvss 571.106, Sae |
| System Of Measurement | Imperial |
| Temp. Range | -40°F to +200°F |
| Thread Size A | 17/32"-24 |
| Thread Size B | 17/32"-24 |
| Tube Size | 3/8" |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 4.32 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 5.08 |
| HS code | 7412200015 |
| Country of Origin | MX |
Product Variants
| Model | Connection Type | Tube Size | Connection | Fitting Side A Connection Type | Fitting Side A Tube Outer Diameter | Fitting Side B Connection Type | Overall Length | Fitting Side B Pipe Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

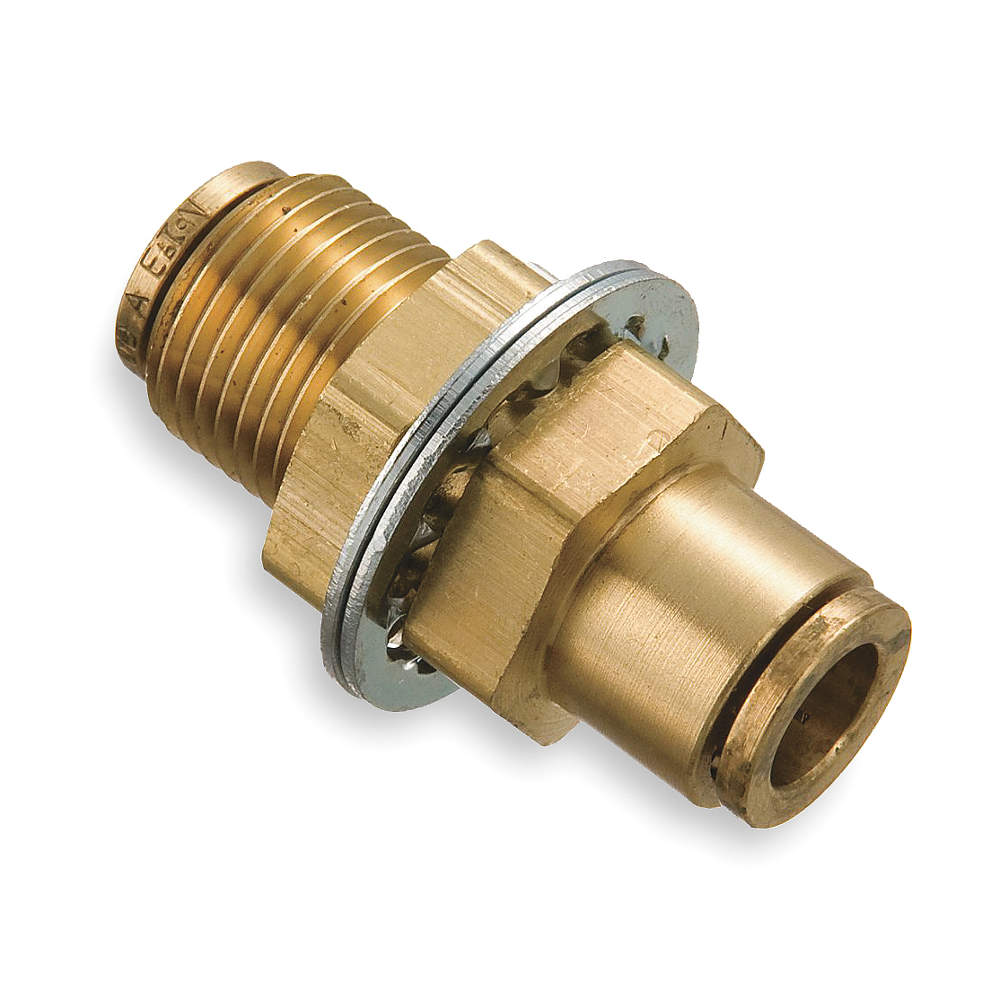

| 1874X10X10 | Quick Connect | 5/8" | Quick Connect | Push-To-Connect | 5/8" | NPTF | 2 13/32" | 5/8" | €143.21 | |
| 1874X4X4 | Quick Connect | - | Quick Connect | Push-To-Connect | 1/4" | NPTF | 1 5/8" | 1/4" | €60.69 | |
| 1874X6X6 | Quick Connect | 3/8" | Quick Connect | Push-To-Connect | 3/8" | NPTF | 1 31/32" | 3/8" | €70.81 | |
| 1474X4 | Compression Nylon Tube | 1/4" | Compression Nylon Tube | Compression | 1/4" | Compression | 1 25/32" | - | €43.45 |
