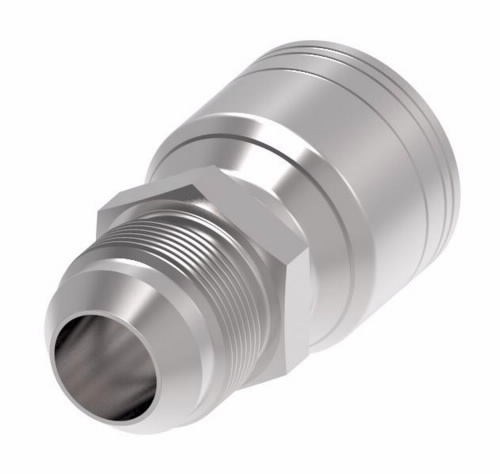

WEATHERHEAD 04Z-504 Hydraulic Crimp Fitting, Steel x Steel, JIC x Crimp
Item: AF6UNGModel: 04Z-504Cross Ref: 20JU53
7 In Stock
Ships within 2 days via
13.00% off
€19.27 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hydraulic Hose Fitting |
| Angle | Straight |
| Application | General Purpose Low And Medium Pressure Hydraulics. Use H277 Or H435 Where Shock Hazards Exist |
| Body Material | Carbon Steel |
| Compatible Hose Inside Dia. | 1/4" |
| Compatible Tube Outside Dia. | 1/4" |
| Connection 1 Short Name | JIC 37 |
| Construction Style | Crimp |
| Dash Size | -4 |
| Dia. | 22/25" |
| End 1 Size | 7/16" |
| End 1 Type | JIC 37 |
| End Gender 1 | Male |
| End Size 1 | 7/16" |
| End Type 1 | JIC 37 |
| End Type 2 | Line, Hose, Tube |
| Finish Plating | Dura Kote |
| Fitting Material | Steel |
| Fitting Movement | Rigid |
| Fitting Shape | Straight |
| Fitting Type | JIC 37° Male Rigid |
| For Use With Hose Series | -06 Series, -08 Series, -08) Series, -12 Series, -16) Series, -20) Series, EC110 Series, EC115 Series, EC118 Series, EC210 Series, EC215 Series, H0105 (-06 THROUGH -12 Series, H0106 (-04 THROUGH -10) Series, H104 Series, H115 (-04 THROUGH -20) Series, H116 (-04 Series, H145 Series, H145R Series, H190 Series, H190H Series, H245 Series, H245L Series, H265 (-04 Series, H275 (-04 THROUGH -16) Series, H280 Series, H290 Series, H290H Series, H290L Series, H345 Series |
| Height | 22/25" |
| Hex Size 1 | 14/25" |
| Hex Size 2 | 14/25" |
| Hole Dia. | 0.17" |
| Hose Cut Off Factor | 1.07" |
| Hose Dash Size | -4 |
| Hose Fitting A Connection Type | Jic |
| Hose Fitting A Gender | Male |
| Hose Fitting A Size | 7/16" |
| Hose Fitting B Connection Type | Crimp |
| Hose Fitting B Gender | Genderless |
| Hose Fitting B Size | 1/4" |
| Hose Inside Dia. | 1/4" |
| Hydraulic Fitting Connection Type | Crimpable |
| Hydraulic Fitting Thread Type | Male JIC |
| Inside Dia. | 0.17" |
| Item Type | Fitting Assembly |
| Jic Thread (in.) | 7/16-20 |
| Length | 2" |
| Material | Carbon Steel |
| Material Grade | Grade 12L14, Grade 12L15 |
| Outside Dia. | 22/25" |
| Plating | Danfoss Dura-Kote Plating |
| Product Type | Hose Fittings |
| Reusable | No |
| Rigid/swivel | Rigid |
| Series | Z Series |
| Shape | Straight |
| Style | Crimp |
| Thread Sealant | No |
| Thread Size | 7/16"-20 |
| Thread Size 1 | 7/16"-20 |
| Thread Type | JIC |
| Tube Outside Dia. | 1/4" |
| Type | Fitting Assembly |
| Vacuum | Not Rated |
| Width | 22/25" |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.24 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 2.24 |
| HS code | 7307929000 |
| Country of Origin | US |
