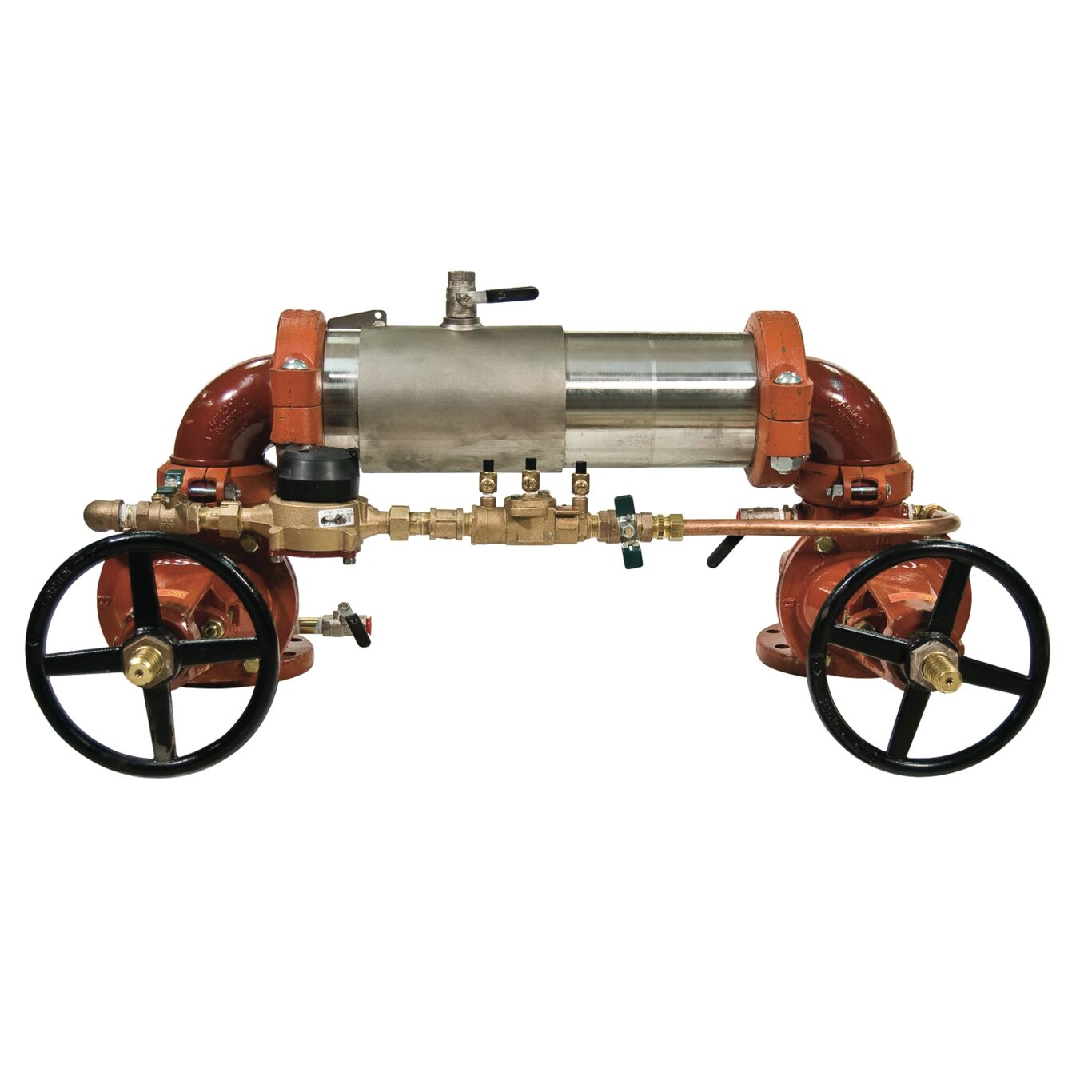

WATTS LFM300N-DOSY-C 3 0124391 Double Check Detector Backflow Assembly, 3 Inch Size, Shutoff Valve
€7,789.28 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Check Valve Assembly |
| Backflow Preventer Type | Double Check Detector Assembly |
| Body Finish | Stainless Steel |
| Body Material | Stainless Steel |
| Body Pattern | N Pattern |
| Buy American Act Compliant | No |
| By Pass | Yes |
| Bypass Size | 3/4" |
| Cap And Tether | No |
| Cross Reference | 0124391 |
| Disc Material | Silicone |
| Elbow Fitting | Yes |
| Hazard Protection Level | Non Health Hazard |
| Hot And Harsh Water | No |
| Hydrant Connection | No |
| Inlet Connection Size | 3" |
| Inlet Shutoff Valve Type | Outside Stem And Yoke Gate Valve |
| Inlet Size | 3" |
| Inlet Thread Type | Not Applicable |
| Inlet Type | Flanged Joint |
| Lead Free | Yes |
| Material | Stainless Steel |
| Max. Temp. | 110°F |
| Max. Working Pressure | 175 psi |
| Maximum Working Pressure | 12.06 Bar |
| Meter Type | cfm |
| Min. Temp. | 33°F |
| Outlet Connection Size | 3" |
| Outlet Connection Thread Type | Flanged Joint |
| Outlet Shutoff Valve Type | Outside Stem And Yoke Gate Valve |
| Outlet Thread Type | Not Applicable |
| Outlet Type | Flanged Joint |
| Polymer Coating | No |
| Pressure Operation | Continuous |
| Protection Type | Backpressure, Back Siphonage |
| Seat Material | Not Applicable |
| Series | LFM300 Series |
| Strainer | No |
| Tradename | Maxim |
Product Details:
Double Check Detector Backflow Assembly, 3 Inch Size, Shutoff Valve
Product Variants
| Model | Body Pattern | Max. Working Pressure | Min. Temp. | Inlet Type | Outlet Type | Meter Type | Outlet Size | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| LFM300-OSY-GPM 6 | Straight | 175 psi | 33°F | Flanged Joint | Flanged Joint | GPM | - | Stainless Steel | €9,222.11 | RFQ
|
| LFM300-OSY-GPM 8 | Straight | 12.06 Bar | 0.5°C | Flanged Joint | Flanged Joint | GPM | 8" | Stainless Steel | €16,689.88 | RFQ
|
| LFM300N-OSY-CFM 2 1/2 | N Pattern | 175 psi | 33°F | Flanged Joint | Flanged Joint | CFM | - | Stainless Steel | €6,250.40 | RFQ
|
| LFM300N-OSY-CFM 3 | N Pattern | 175 psi | 33°F | Flanged Joint | Flanged Joint | CFM | - | Stainless Steel | €6,892.18 | RFQ
|
| LFM300N-OSY-CFM 4 | N Pattern | 12.06 Bar | 0.5°C | Flanged Joint | Flanged Joint | CFM | 4" | Stainless Steel | €8,047.37 | RFQ
|
| LFM300N-OSY-CFM 6 | N Pattern | 175 psi | 33°F | Flanged Joint | Flanged Joint | - | - | Stainless Steel | €10,416.40 | RFQ
|
| LFM300N-OSY-CFM 8 | N Pattern | 175 psi | 33°F | Flanged Joint | Flanged Joint | - | - | Stainless Steel | €17,990.60 | RFQ
|
