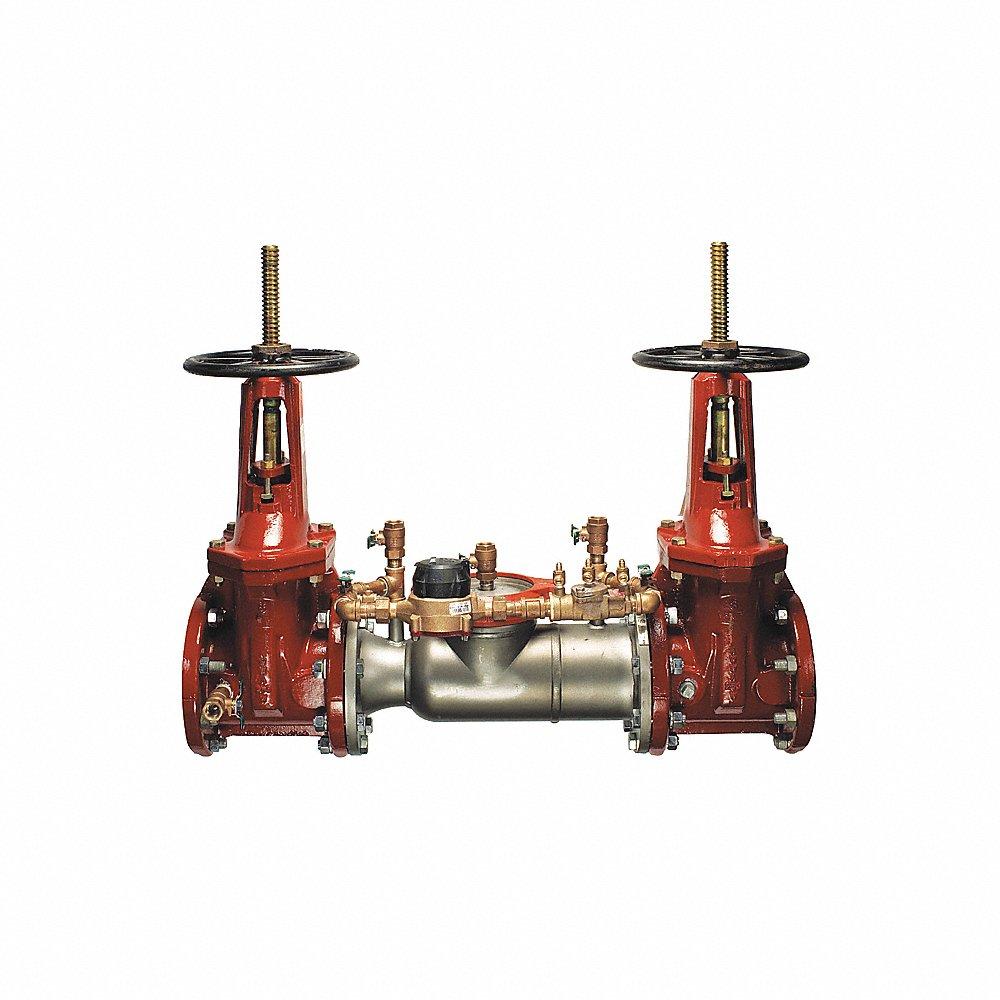

WATTS 774DCDA-OSY-CFM Double Check Detector Assembly, 8 Inch Size, Flanged, SS, 33 to 110 Deg. F
Get it by Monday, Dec 22
10.00% off
€8,597.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Backflow Preventer |
| Backflow Preventer Type | Double Check Detector Assembly (Dcda) |
| Body Material | Stainless Steel |
| Check Mechanism Material | Thermoplastic |
| Check Valve Length | 22" |
| Connection Size - Side 1 | 2 1/2" |
| Connection Size - Side 2 | 2 1/2" |
| Connection Type | Flange |
| Connection Type - Side 1 | Flange |
| Connection Type - Side 2 | Flange |
| Flow Rate | 525 GPM |
| For Media | Water |
| Hazard Protection Level | Low Health Hazard |
| Includes Flow Meter | Includes Cfm Flow Meter |
| Includes Freeze Protection | No Freeze Sensor |
| Includes Strainer | No |
| Manufacturer Warranty | 1 yr. |
| Max. Media Temperature | 110°F |
| Max. Pressure (cwp) | 175 psi |
| Media Temperature Range | 33°F 110°F |
| Min. Media Temperature | 33°F |
| Mounting Orientation | Horizontal, Vertical |
| Number Of Test Ports | 4 |
| Overall Height | 19.88" |
| Overall Length | 37" |
| Overall Width | 12 1/2" |
| Pipe Size | 2 1/2" |
| Protection Type | Back Pressure, Back Siphonage |
| Seat Material | Plastic |
| Shut-off Valve Type | Osy Gate Valve |
| Spring Material | Stainless Steel |
| Valve Series | 774DCDA |
Shipping Info:
| Ship weight (kg) | 95.4 |
| Ship height (cm) | 41.59 |
| Ship length (cm) | 96.52 |
| Ship width (cm) | 31.75 |
| Country of Origin | US |
Product Variants
| Product | Model | Seat Material | Body Finish | Min. Temp. | Inlet Type | Outlet Size | Max. Working Pressure | Outlet Type | Body Pattern | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

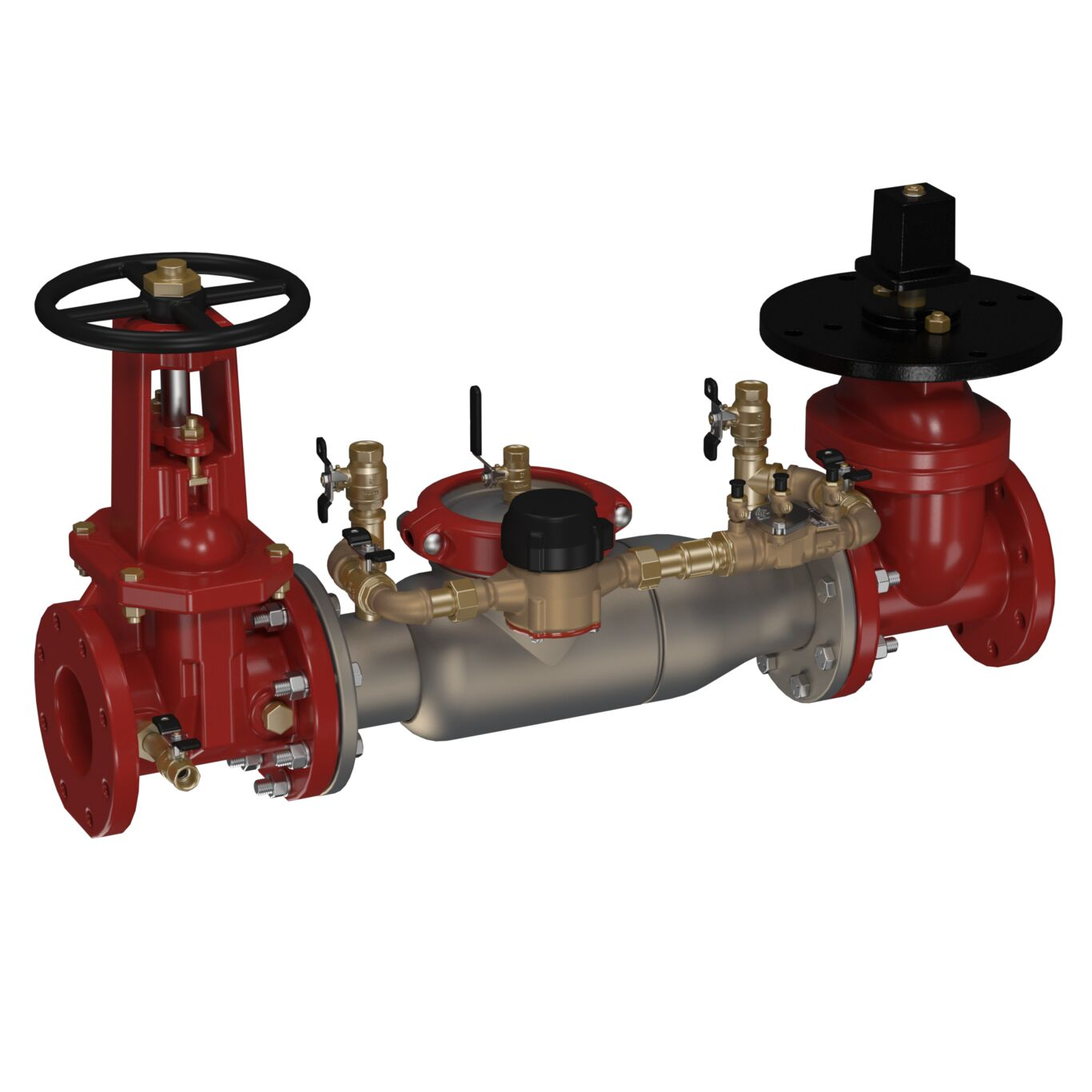

774DCDA-OSYXPIV-GPM 10 | Engineered Plastic | Stainless Steel | 33°F | Flanged Joint | 10" | 175 psi | Flanged Joint | Not Applicable | €23,661.55 | RFQ
|
 |

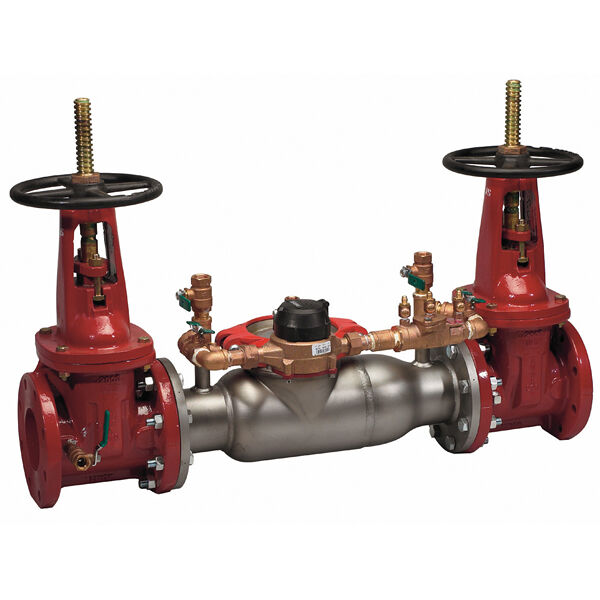

SR774DCDA-OSY-CFM 10 | - | Plain | 33°F | Flanged Joint | 10" | 175 psi | Flanged Joint | Straight | €24,370.24 | RFQ
|
 |

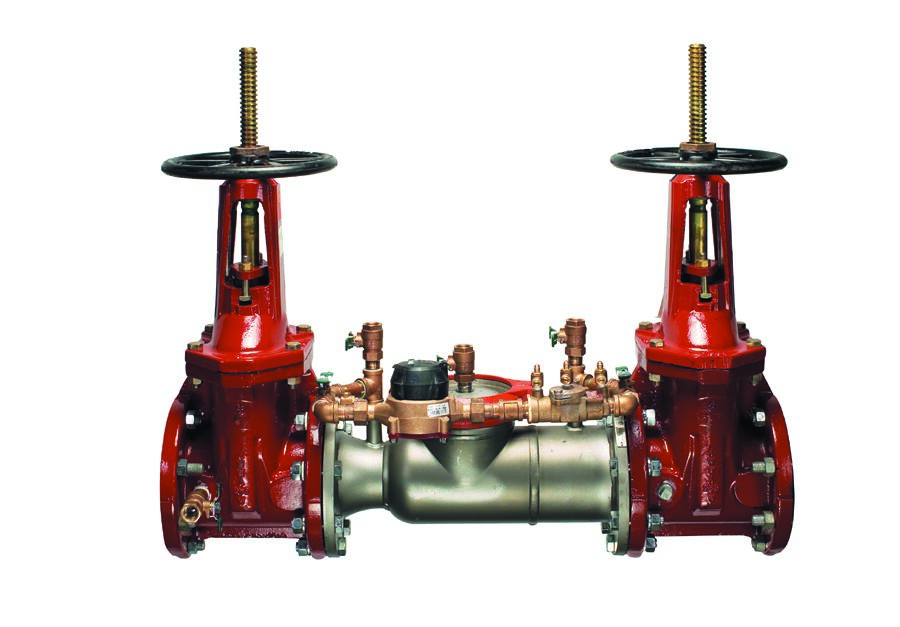

774DCDA-OSY-CFM 12 | Engineered Plastic | Stainless Steel | 33°F | Flanged Joint | 12" | 175 psi | Flanged Joint | Not Applicable | €29,816.40 | RFQ
|
|
SR774DCDA-OSY-CFM 4 | - | Stainless Steel | 0.5°C | Flanged Joint | 4" | 12.1 Bar | Flanged Joint | Straight | €7,602.33 | RFQ
|
|
SR774DCDA-OSY-GPM 4 | - | Stainless Steel | 33°F | Flanged Joint | 4" | 175 psi | Flanged Joint | Straight | €7,602.33 | RFQ
|
|
SR774DCDA-OSY-CFM 8 | - | Stainless Steel | 33°F | Flanged Joint | 8" | 175 psi | Flanged Joint | Straight | €17,834.02 | RFQ
|
 |

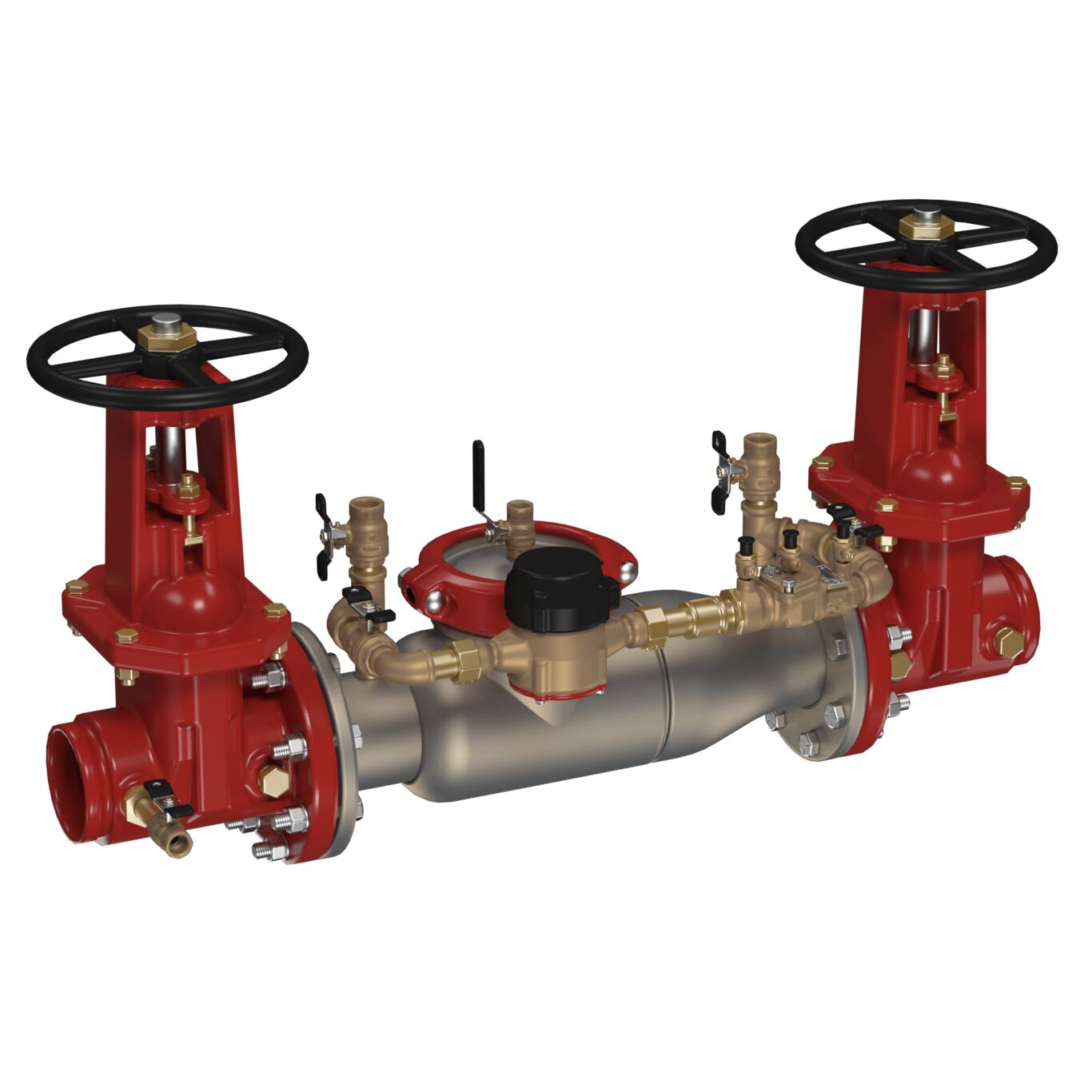

774DCDA-OSY-GXG-GPM 4 | Engineered Plastic | Stainless Steel | 33°F | Grooved Joint | 4" | 12.1 Bar | Grooved Joint | Not Applicable | €8,008.33 | RFQ
|
