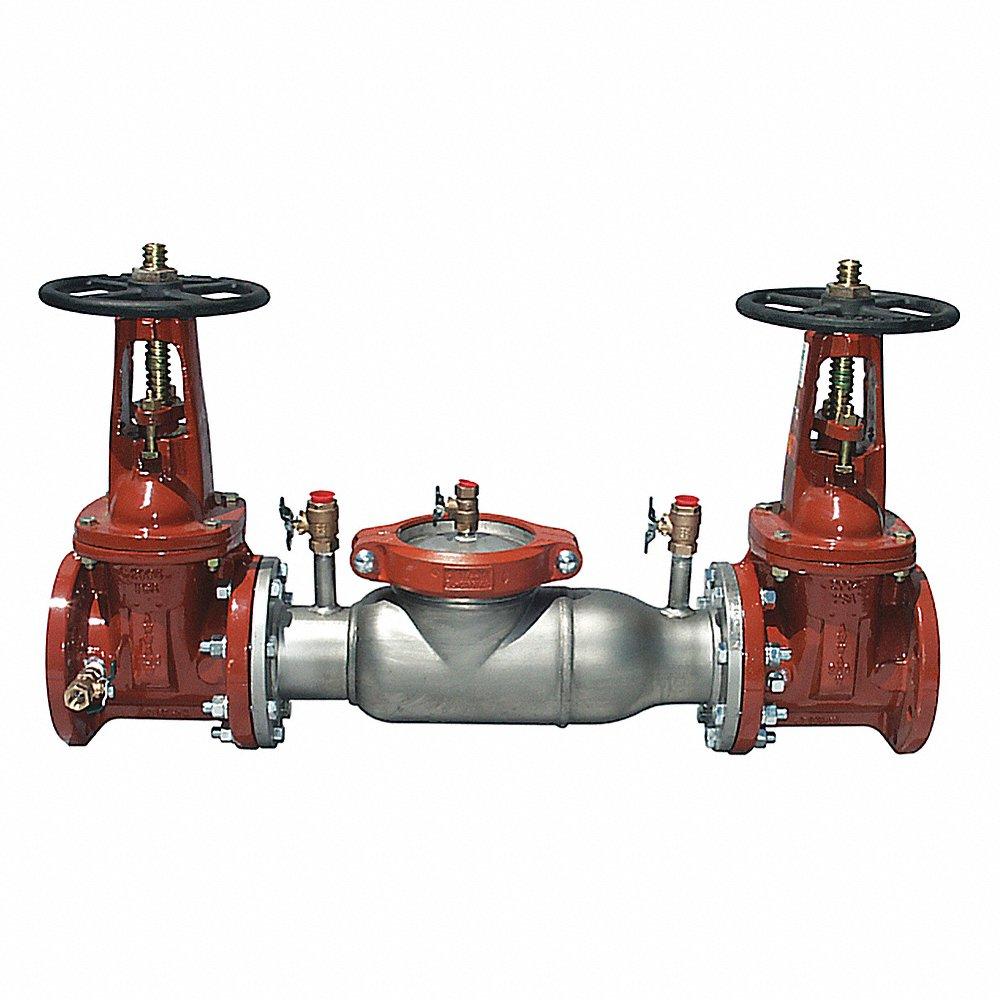

WATTS 774-OSY Double Check Valve Assembly, 2 1/2 Inch Size, Flanged, Stainless Steel
Get it by Wednesday, Dec 17
10.00% off
€5,780.43 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Check Valve Assembly |
| Backflow Preventer Type | Double Check Assembly (Dc) |
| Body Material | Stainless Steel |
| Check Mechanism Material | Thermoplastic |
| Check Valve Length | 22" |
| Configuration | Standard Configuration |
| Connection Size - Side 1 | 2 1/2" |
| Connection Size - Side 2 | 2 1/2" |
| Connection Type | Flange x Flange |
| Connection Type - Side 1 | Flange |
| Connection Type - Side 2 | Flange |
| Flow Rate | 525 GPM |
| For Media | Water |
| Hazard Protection Level | Low Health Hazard |
| Includes Flow Meter | No Flow Meter |
| Includes Freeze Protection | No Freeze Sensor |
| Includes Strainer | No |
| Manufacturer Warranty | 1 yr. |
| Max. Media Temperature | 110°F |
| Max. Pressure (cwp) | 175 psi |
| Media Temperature Range | 33°F to 110°F |
| Min. Media Temperature | 33°F |
| Mounting Orientation | Horizontal, Vertical |
| Number Of Test Ports | 4 |
| Overall Height | 19.88" |
| Overall Length | 37" |
| Overall Width | 7" |
| Pipe Size | 2 1/2" |
| Protection Type | Back Pressure, Back Siphonage |
| Shut-off Valve Type | Osy Gate Valve |
| Spring Material | Stainless Steel |
| Valve Series | 774 |
Shipping Info:
| Ship weight (kg) | 102.6 |
| Ship height (cm) | 50.48 |
| Ship length (cm) | 96.52 |
| Ship width (cm) | 17.78 |
| Country of Origin | US |
Product Variants
| Model | Body Finish | Max. Working Pressure | Min. Temp. | Inlet Type | Outlet Type | Outlet Size | Overall Height | Body Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 774-OSY 2 1/2 | Plain | 175 psi | 33°F | Flanged Joint | Flanged Joint | 2 1/2" | - | - | €3,983.23 | RFQ
|
| 774-OSY 3 | Stainless Steel | 175 psi | 33°F | Flanged Joint | Flanged Joint | 3" | - | Stainless Steel | €4,559.45 | RFQ
|
| 774-OSY 4 | Stainless Steel | 175 psi | 33°F | Flanged Joint | Flanged Joint | 4" | - | Stainless Steel | €4,705.93 | RFQ
|
| 774-OSY 6 | Plain | 175 psi | 33°F | Flanged Joint | Flanged Joint | 6" | - | Stainless Steel | €7,356.79 | RFQ
|
| 774-OSY 8 | Stainless Steel | 12.1 Bar | 0.5°C | Flanged Joint | Flanged Joint | 8" | - | Stainless Steel | €14,537.75 | RFQ
|

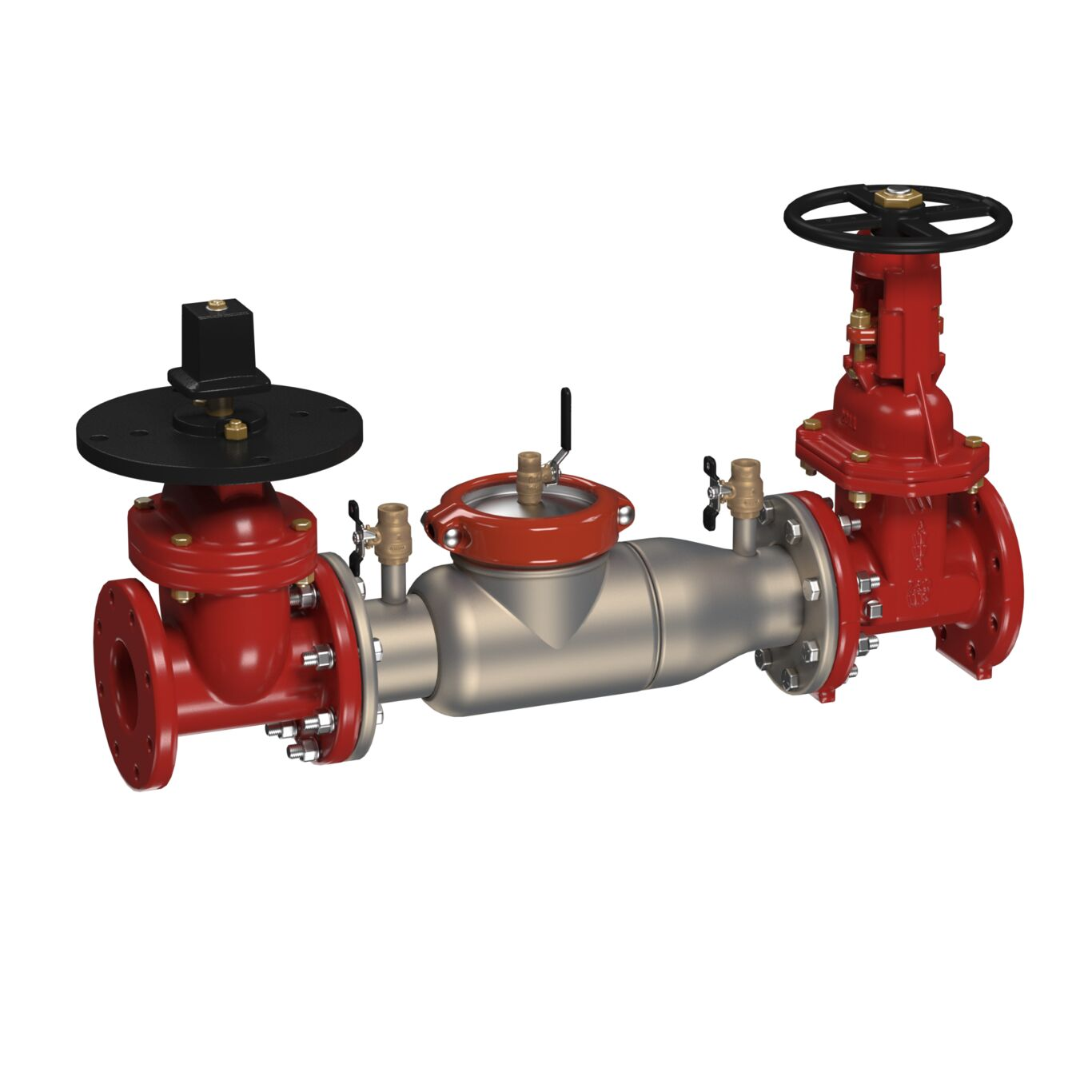

| 774-PIVXOSY 3 | Plain | 12.1 Bar | 33°F | Flanged Joint | Flanged Joint | 3" | - | Stainless Steel | €4,877.55 | RFQ
|
| 774-PIVXOSY 6 | Stainless Steel | 12.1 Bar | 33°F | Flanged Joint | Flanged Joint | 6" | - | Stainless Steel | €7,871.59 | RFQ
|
