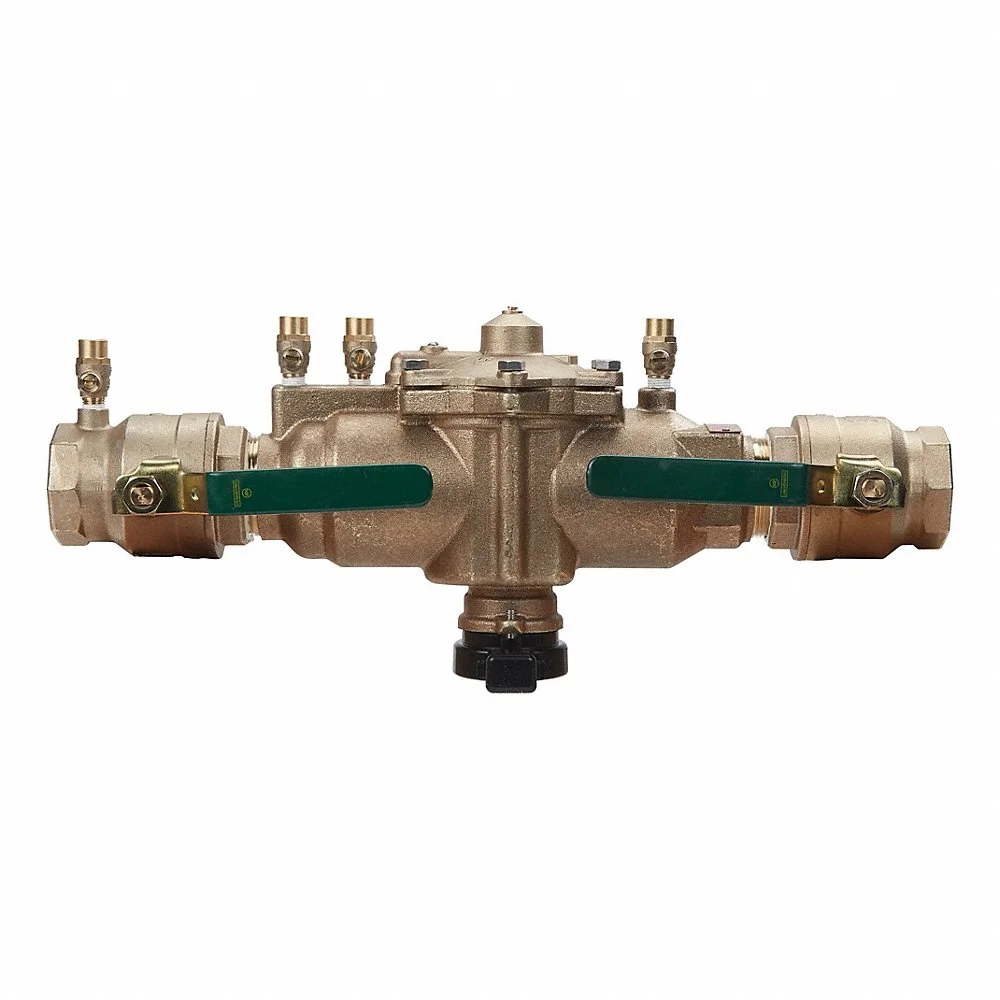

WATTS 2 009M2-QT Backflow Preventer, 009, 2 in, NPT, Bronze, 21 3/8 Inch Length, 7 3/4 Inch Height
Get it by Thursday, Dec 18
10.00% off
€2,632.29 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Backflow Preventer |
| Backflow Preventer Type | Reduced Pressure Assembly (Rp) |
| Body Material | Bronze |
| Check Valve Length | 13 1/2" |
| Connection Gender - Side 1 | Female |
| Connection Gender - Side 2 | Female |
| Connection Size - Side 1 | 2" |
| Connection Size - Side 2 | 2" |
| Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| Features | Ball Valve Test Cocks, Captured Springs For Safe Maintenance, Compact, Space Saving Design, Internal Relief Valve For Reduced Installation Clearances, Large Body Passages Provides Low Pressure Drop, No Special Tools Required For Servicing, Replaceable Seats For Economical Repair, Single Access Cover And Modular Check Construction For Ease Of Maintenance, Top Entry - All Internals Immediately Accessible |
| Flow Rate | 200 GPM |
| For Media | Water |
| Freeze Protection | No |
| Handle Type | Tee |
| Hazard Protection Level | High Health Hazard |
| Height | 7 3/4" |
| Includes Flood Protection | No Flood Protection |
| Includes Flow Meter | No Flow Meter |
| Includes Freeze Protection | No Freeze Sensor |
| Includes Strainer | No |
| Length | 21 3/8" |
| Manufacturer Warranty | 1 yr. |
| Material | Bronze |
| Max. Pressure | 175 psi |
| Max. Pressure (cwp) | 175 psi |
| Max. Temp. | 180°F |
| Media Temp. Range | 33°F to 180°F |
| Number Of Test Ports | 4 |
| Overall Height | 8 3/4" |
| Overall Length | 21.38" |
| Pipe Size | 2" |
| Protection Type | Back Pressure, Back Siphonage |
| Seat Material | Plastic |
| Series | 9 |
| Shut-off Valve Type | Ball Valve |
| Size | 2" |
| Temp. Range | +33°F to +180°F |
| Valve Series | 009 Series |
Shipping Info:
| Ship weight (kg) | 12.29 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Connection Type | Body Material | Seat Material | Height | Overall Height | Max. Pressure | Temp. Range | Backflow Preventer Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1/2 LF009-QT-PRESS | Press | Bronze | Stainless Steel | 4 3/4" | 5.88" | 175 psi | +33°F to +180°F | Reduced Pressure Assembly (Rp) | €1,338.13 | |
|
1 LF009M2-QT-PRESS | Press | Bronze | Stainless Steel | 6.859" | 6 1/4" | 175 psi | +33°F to +180°F | Reduced Pressure Assembly (Rp) | €1,609.28 | |
|
1 1/4 009M2-QT | FNPT | Bronze | Plastic | 6" | 6 3/4" | 175 psi | +33°F to +180°F | Reduced Pressure Assembly (Rp) | €2,315.37 | |
|
1 009M2-QT | FNPT | Bronze | Plastic | 5 1/2" | 6 1/4" | 175 psi | +33°F to +180°F | Reduced Pressure Assembly (Rp) | €1,537.53 | |
 |
1/2 009-QT | FNPT | Bronze | Plastic | 4 5/8" | 5.88" | 175 psi | +33°F to +180°F | Reduced Pressure Assembly (Rp) | €1,195.81 | |
 |
3/4 009M3-QT | FNPT | Bronze | Plastic | 5" | 6 1/4" | 175 psi | +33°F to +180°F | Reduced Pressure Assembly (Rp) | €1,393.16 | |
 |
1 1/2 LF009M2-QT-S | FNPT | Bronze | Plastic | 6" | 6 3/4" | 175 psi | +33°F to +180°F | Reduced Pressure Assembly (Rp) | €2,373.74 |
