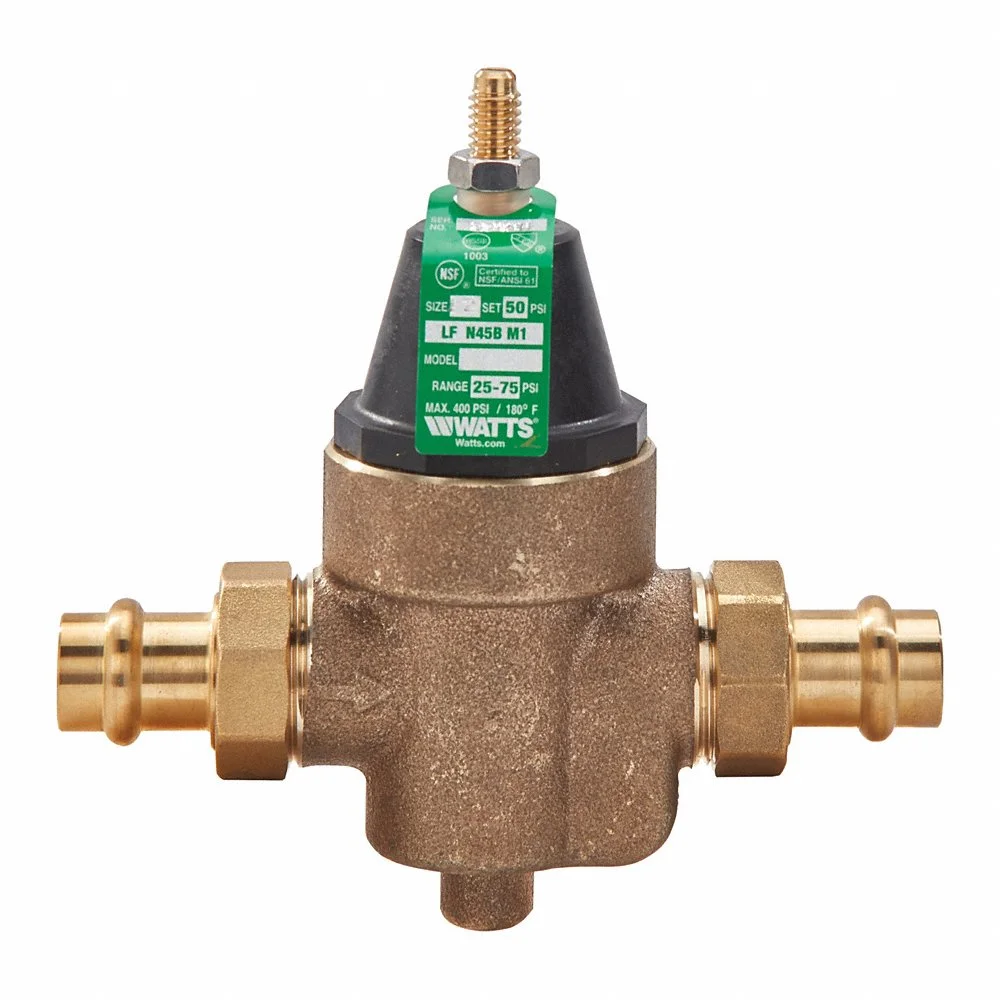

WATTS 1 LFN45BM1-PRESS Water Pressure Reducing Valve, Lfn45B, Lead Free Copper Silicon Alloy, 1 Inch Size, Press
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€611.74 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Water Pressure Reducing Valve |
| Adjustable Pressure Range | 25 psi to 75 psi |
| Application | Commercial Use, Residential Use |
| Body Material | Cast Copper Silicon Alloy |
| Coating/lining | NSF Listed Fusion Bonded Epoxy Lining And Coating |
| Connection Type | Press |
| Connections | Press x Press |
| Disc Material | Elastomer |
| Factory Set Pressure | 50 psi |
| For Media | Water |
| Height | 6 1/8" |
| Includes Strainer | Strainer Included |
| Inlet Connection Size | 1" |
| Length | 6 1/4" |
| Low-lead Compliance | Low Lead Compliant |
| Material | Lead Free Copper Silicon Alloy |
| Max. Operating Temperature | 180°F |
| Max. Pressure | 400 psi |
| Max. Temp. | 180°F |
| Mfr. Series | LFN45B |
| Nsf Certifications For Food And Drinking Water | NSF 61G |
| Operating Pressure Range | 400 psi |
| Outlet Connection Size | 1" |
| Overall Height | 6 1/4" |
| Pipe Size | 1" |
| Port Design | Full Port |
| Preset Pressure Settings | 50 psi |
| Pressure Adjustment Range | 25 psi to 75 psi |
| Seat Material | TPE |
| Strainer | Yes |
| Type | Standard |
Shipping Info:
| Ship weight (kg) | 1.38 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Connection Type | Height | Max. Pressure | Disc Material | Type | Inlet Type | Pressure Setting Range | Outlet Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LFN45BM1-DU 3/4 | Union x Joint | 6 1/4" | 300 psi | Elastomer | Standard | - | - | - | €326.26 | |
|
LFN45BM1-DU-1 | Union x Joint | 6 1/4" | 300 psi | Elastomer | Standard | - | - | - | €544.07 | |
 |
LFN45BM1-DU-PEXXPEX | Crimp | 6 1/4" | 300 psi | Elastomer | Standard | Union PEX | 3.4 Bar | Union PEX | €251.45 | |
 |
LFN45BM1-DU-CPVC 3/4 | Union x Joint | 6 1/4" | 300 psi | Elastomer | Standard | - | - | - | €159.59 | |
 |
LFN45BM1-DU-CPVC 1 | Union x Joint | 6 1/4" | 300 psi | Elastomer | Standard | - | - | - | €175.72 | |
 |
LFN45BM1-U 1/2 | - | - | 300 psi | Elastomer | - | Union Joint | 3.4 Bar | Female Threaded | €202.46 | |
 |
LFN45BM1-U-S 3/4 | - | - | 20.7 Bar | Elastomer | - | Socket | 3.4 Bar | Female Threaded | €95.91 |
