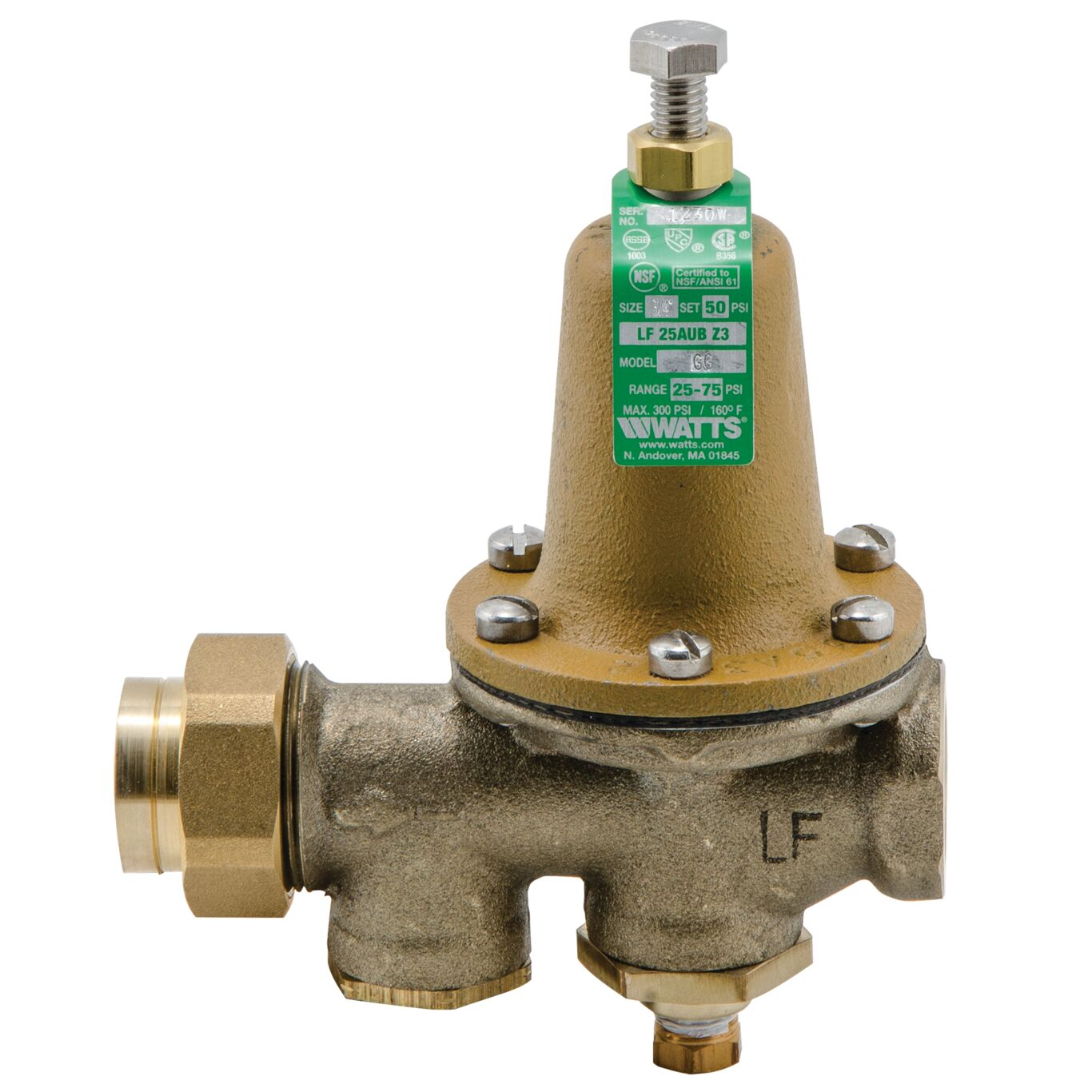

WATTS 1 LF 25AUB-Z3 0009309 Water Pressure Reducing Valve, NPT x NPT, 1 Inch Pipe Size, Copper Silicon Alloy
Item: AE3JFCModel: 1 LF 25AUB-Z3Cross Ref: 5DMA7 / 0009309
7 In Stock
Ships within 2 days via
5.00% off
€684.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Water Pressure Reducing Valve |
| Adjustable Pressure | 25 psi to 75 psi |
| Adjustable Reduced Pressure Range | 1.7 Bar to 5.2 Bar |
| Application | Commercial Use, Residential Use |
| Body Material | Copper Silicon Alloy |
| Buy American Act Compliant | Yes |
| Coating/lining | NSF Listed Fusion Bonded Epoxy Lining And Coating |
| Connection Type | FNPT Union x FNPT |
| Connections | NPT x NPT |
| Corrosion Resistant Coating | No |
| Cross Reference | 0009309 |
| Disc Material | EPDM |
| Factory Set Pressure | 50 psi |
| For Media | Water |
| Gauge Option | No Gauge |
| Height | 9" |
| High Pressure Reduced Pressure Range | Not Applicable |
| High Pressure Reduced Pressure Setting | Not Applicable |
| Included Strainer | Strainer Included |
| Inlet Connection Size | 1" |
| Inlet Connection Type | Union Female Threaded |
| Inlet Thread Type | NPT |
| Lead Free | Yes |
| Length | 7.812" |
| Low-lead Compliance | Low Lead Compliant |
| Material | Lead Free Brass |
| Max. Operating Temp. | 180°F |
| Max. Pressure | 300 psi |
| Max. Temp. | 160°F |
| Max. Working Pressure | 300 psi |
| Min. Temp. | 33°F |
| Nsf Certifications For Food And Drinking Water | NSF 61G |
| Operating Pressure | 300 psi |
| Outlet Connection Size | 1" |
| Outlet Connection Thread Type | Female Threaded |
| Outlet Thread Type | NPT |
| Overall Height | 8" |
| Pipe Size | 1" |
| Port Design | Full Port |
| Preset Pressure Settings | 50 psi |
| Pressure Adjustment Range | 25 psi to 75 psi |
| Seat Material | Polymer |
| Series | LF25AUB-Z3 Series |
| Standard Reduced Pressure Setting | 50 psi |
| Strainer | Yes |
| Strainer | No |
| Strainer Material | Stainless Steel |
| Thermal Expansion Bypass | Yes |
| Trim Material | Not Applicable |
| Type | Standard |
| Valve Style | Standard |
Shipping Info:
| Ship weight (kg) | 2.33 |
| Ship height (cm) | 22.61 |
| Ship length (cm) | 18.03 |
| Ship width (cm) | 11.18 |
| HS code | 8481801095 |
| Country of Origin | US |
Product Variants
| Product | Model | Material | Height | Strainer | Max. Pressure | Adjustable Reduced Pressure Range | Inlet Thread Type | Trim Material | High Pressure Reduced Pressure Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
1/2 LF 25 AUB Z3 | Lead Free Brass | 7" | Yes | 300 psi | - | - | - | - | €498.99 | |
 |
3/4 LF 25 AUB-Z3 | Lead Free Brass | 8" | Yes | 300 psi | - | - | - | - | €454.44 | |
|
11/4 LF 25AUBZ3 | Lead Free Brass | 9 1/2" | No | 300 psi | - | - | - | - | €1,042.03 | |
 |
11/2 LF 25AUBZ3 | Lead Free Brass | 9 1/2" | Yes | - | - | - | - | - | €1,437.17 | |
 |
1/2 LF25AUB-GG-Z3 | Lead Free Brass | 9.437" | No | 300 psi | - | - | - | - | €382.40 | |
 |
3/4 LF25AUB-GG-Z3 | Lead Free Brass | 9.437" | Yes | 300 psi | - | - | - | - | €388.94 | |
|
2 LF25AUB-GG-Z3 | Lead Free Brass | 13.688" | No | 300 psi | - | - | - | - | €1,323.69 |
