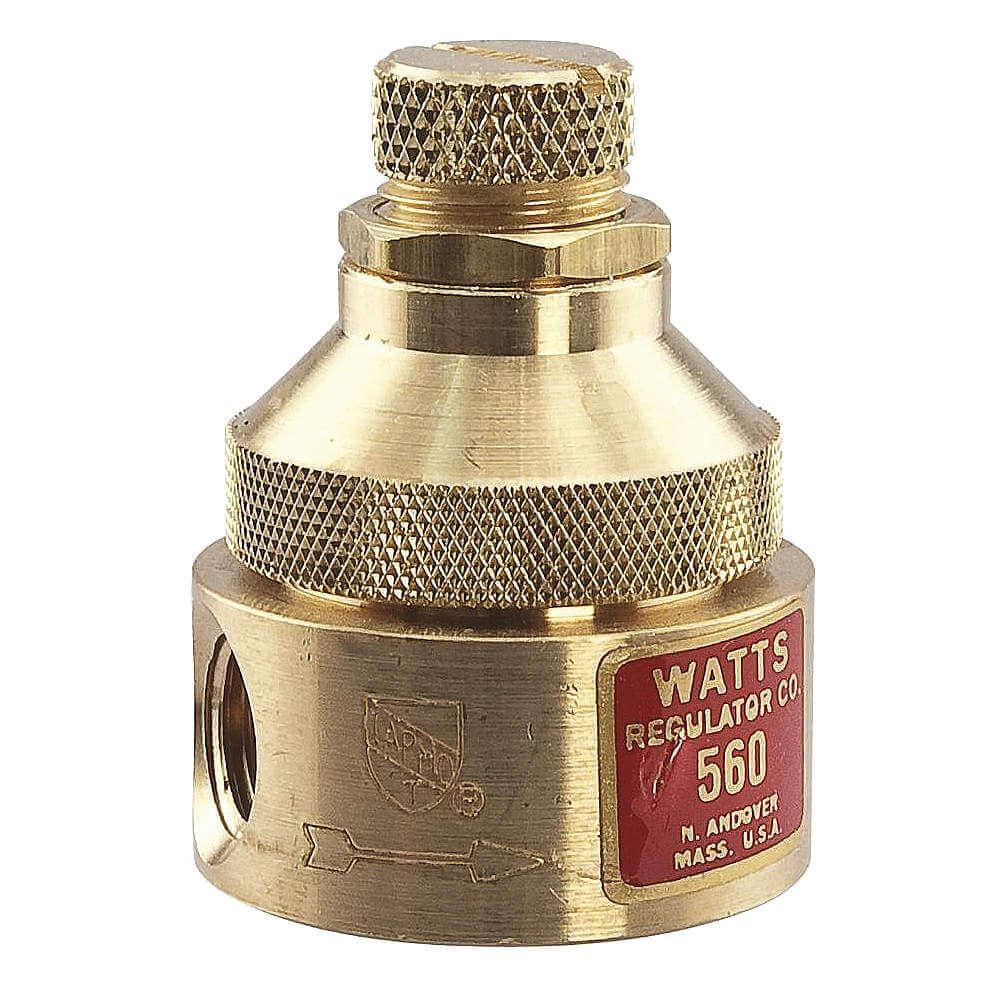

WATTS 1/8 LF560 0-125 Pressure Regulator, FNPT x FNPT, 1/8 in Pipe, Brass, 0 to 125 PSI, 140 Deg F Max. Op Temp
Item: AB8QYGModel: 1/8 LF560 0-125Cross Ref: 26X146
7 In Stock
Ships within 2 days via
5.00% off
€169.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Pressure Regulator |
| Adjustable Pressure | 0 psi to 125 psi |
| Application | Industrial Use |
| Body Material | Brass |
| Connection Type | FNPT |
| Connections | FNPT x FNPT |
| For Media | Water |
| Gauge Port | 1/8" |
| Gauge Port Size | 1/8" |
| Height | 2" |
| Inlet Connection Size | 1/8" |
| Inlet Size | 1/8" |
| Length | 1 1/2" |
| Low-lead Compliance | Low Lead Compliant |
| Max. Operating Temp. | 140°F |
| Max. Pressure | 300 psi |
| Max. Temp. | 140°F |
| Min. Operating Temp. | 33°F |
| Nsf Certifications For Food And Drinking Water | Nsf 372 |
| Operating Pressure | 300 psi |
| Outlet Size | 1/8" |
| Overall Height | 2" |
| Overall Width | 1 1/2" |
| Pressure Adjustment Range | 0 psi to 125 psi |
| Seal Material | Buna N |
| Series | 560 Series |
Shipping Info:
| Ship weight (kg) | 0.25 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 4.83 |
| Ship width (cm) | 5.84 |
| HS code | 8481809015 |
| Country of Origin | US |
