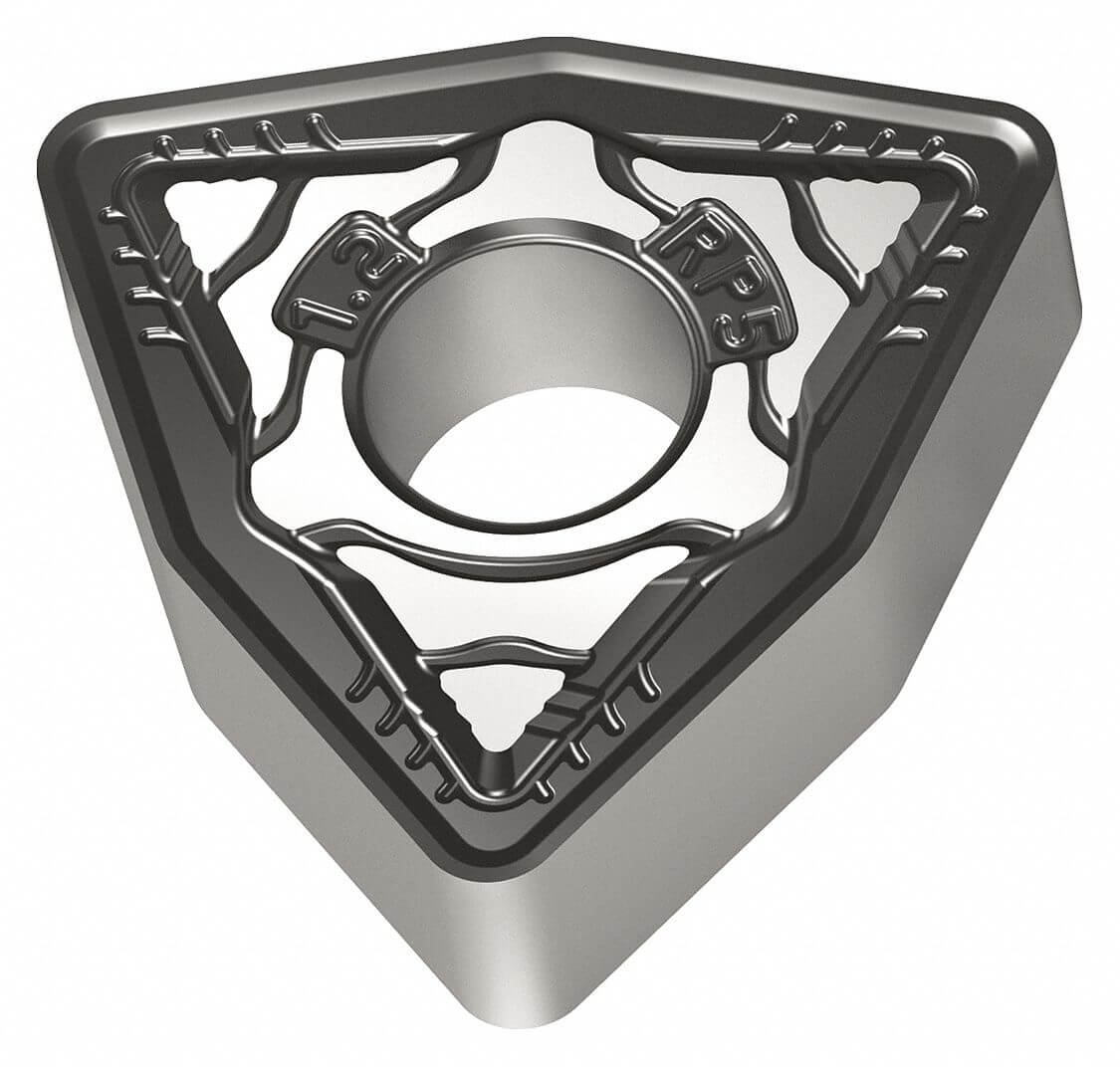

WALTER TOOLS WNMG433 Carbide Turning Insert WNMG080412-RP5
Item: AH4YZLModel: WNMG433Cross Ref: 35RG88
7 In Stock
Ships within 2 days via
10.00% off
€30.29 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | WNMG433-RP5 WKK10S |
| Applications | Medium |
| Chip-breaker | Yes |
| Chip-breaker Code | RP5 |
| Clearance Angle | 0° |
| Coating | Chemical vapor deposition |
| Coating Process | CVD |
| Corner Radius | 1.2 mm |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 8.7 mm |
| Depth Of Cut | 1 mm to 6 mm |
| Finish - Machining | Ticn+Al2O3+Ticn |
| Grade | Grade WKK10S |
| Included Angle | 80° |
| Inscribed Circle | 0.5" |
| Insert Code | Wnmg433 |
| Insert Holding Type | Straight Hole |
| Insert Material | Carbide |
| Insert Size | 433 |
| Insert Style | WNMG |
| Iso Number | WNMG080412-RP5 |
| Iso Number | WNMG080412-RP5 WKK10S |
| Manufacturer Grade | Wkk10S |
| Material - Machining | Carbide |
| Measurement System | Metric |
| Mounting Style | Screw |
| No. Of Edges | 3 |
| Primary Application | Medium |
| Primary Material Application | Cast Iron |
| Primary Material Application Iso Code | K |
| Rake | Negative |
| Relief Angle | 0° |
| Relief Angle | 0 Degrees |
| Shape | Trigon |
| Style | WNMG |
| Thickness | 4.76 mm |
| Through Hole Inside Dia. | 5.16 mm |
Shipping Info:
| Ship weight (kg) | 0.41 |
| Ship height (cm) | 1.1 |
| Ship length (cm) | 9.8 |
| Ship width (cm) | 1.4 |
| Country of Origin | DE |
Product Details:
- Workpiece Compatibility : Cast Iron (K)
- Steel (P) Compatibility : No
- Stainless (M) Compatibility : No
- Cast Iron (K) Compatibility : Yes
- Non Ferrous (N) Compatibility : No
- Super Alloy (S) Compatibility : No
- Hardened (H) Compatibility : No
Product Variants
| Model | Insert Code | Insert Style | Clearance Angle | Inscribed Circle | Thickness | Corner Radius | Grade | Chip-breaker Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| WCGT030202-X15 WK1 | WCGT1.81.5.5 | WCGT | 7° | 7/32" | 2.38 mm | 0.2 mm | WK1 | X15 | €31.98 | |
| WCGT030202-X25 WK1 | WCGT1.81.5.5 | WCGT | 7° | 7/32" | 2.38 mm | 0.2 mm | WK1 | X25 | €32.21 | |
| WCGT030204-X25 WK1 | WCGT1.81.51 | WCGT | 7° | 7/32" | 2.38 mm | 0.4 mm | WK1 | X25 | €33.95 | |
| WNMG432 | WNMG432 | WNMG | 0° | 0.5" | 4.76 mm | 0.8 mm | Grade WKK10S | RP5 | €34.24 |
