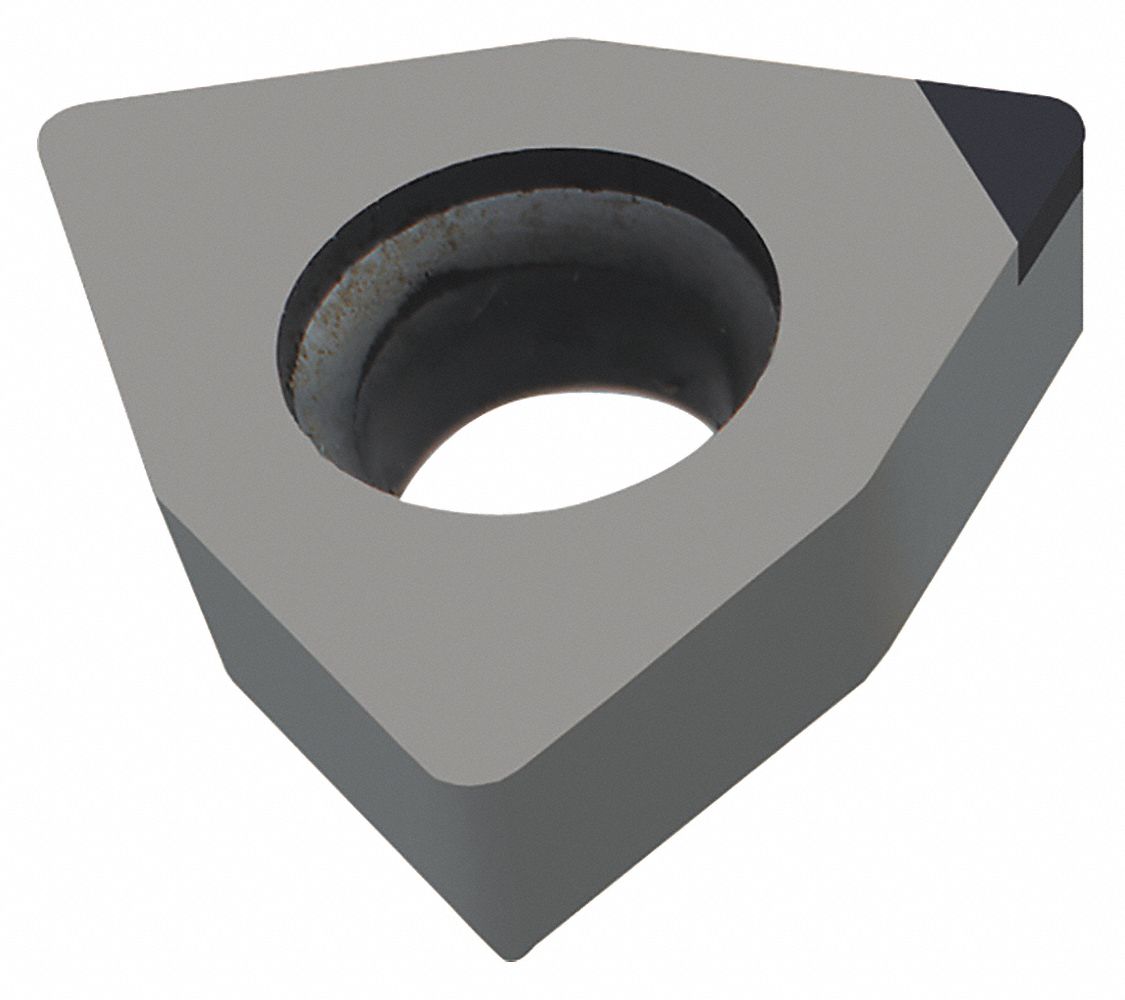

WALTER TOOLS WCMW020102 WCB50 5043154 Carbide Turning Insert Hardened Material
Item: AF9NEYModel: WCMW020102 WCB50Cross Ref: 30FW37 / 5043154
7 In Stock
Ships within 2 days via
5.00% off
€131.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | WCMW1.2(1)0.5 WCB50 |
| Chip Breaker | Yes |
| Chip-breaker Code | A27 |
| Clearance Angle | 7° |
| Coating | Uncoated |
| Corner Radius | 0.2 mm |
| Cutting Application | Boring |
| Cutting Edge Length | 2.7 mm |
| Feed Type | High |
| Grade | Grade WCB50 |
| Included Angle | 80° |
| Inscribed Circle | 0.1563" |
| Insert Code | WCMW1.21.5 |
| Insert Holding Type | 40° to 60°Countersink Hole |
| Insert Material | Carbide |
| Insert Size | 2 |
| Insert Style | WCMW |
| Iso Number | WCMW020102WCB50 |
| Manufacturer Grade | Wcb50 |
| Material-machining | CBN |
| Measurement System | Metric |
| Mounting Style | Screw Clamp |
| No. Of Cutting Edges | 1 |
| No. Of Edges | 3 |
| Primary Material Application | Hardened Steel |
| Primary Material Application Iso Code | H |
| Radius | 0.008" |
| Rake | Positive |
| Relief Angle | 7 Degrees |
| Relief Angle | 7° |
| Secondary Material Application | Cast Iron |
| Secondary Material Application Iso Code | K |
| Shape | Trigon |
| Style | WCMW |
| Thickness | 1.59 mm |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 1.5 |
| Ship length (cm) | 4.19 |
| Ship width (cm) | 3.99 |
| HS code | 8209000030 |
| Country of Origin | DE |
Product Details:
- Cast Iron (K) Compatibility (No)
- Hardened (H) Compatibility (Yes)
- Non Ferrous (N) Compatibility (No)
- Stainless (M) Compatibility (No)
- Steel (P) Compatibility (No)
- Super Alloy (S) Compatibility (No)
Product Variants
| Product | Model | Primary Material Application Iso Code | Manufacturer Grade | Material-machining | Grade | Corner Radius | Insert Code | Ansi Code | Iso Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
WCMW020104 WCB50 | H | Wcb50 | CBN | Grade WCB50 | 0.4 mm | WCMW1.211 | WCMW1.2(1)1 WCB50 | WCMW020104WCB50 | €138.80 | |
 |

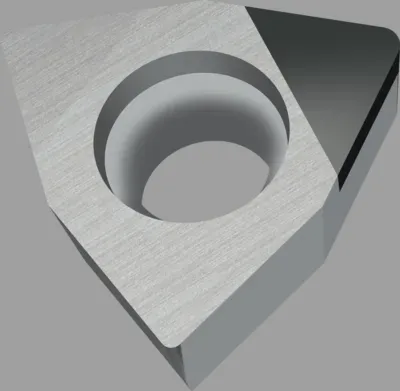

WCMW020104 WCD10 | N | Wcd10 | Polycrystalline Diamond | Grade WCD10 | 0.4 mm | WCMW1.211 | WCMW1.2(1)1 WCD10 | WCMW020104WCD10 | €186.35 |
