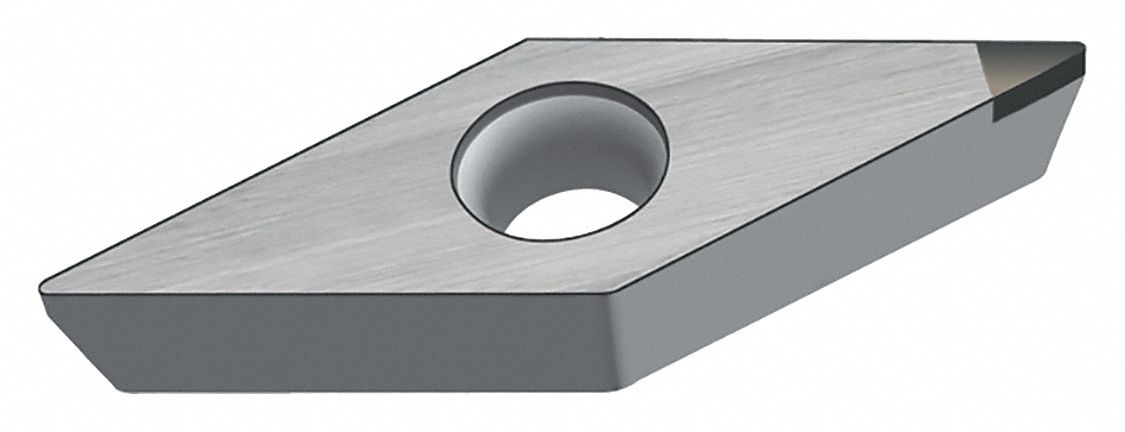

WALTER TOOLS VBMW160404-2 WCB50 Carbide Turning Insert Hardened Material
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Turning Insert |
| Ansi Code | VBMW331-2 |
| Clearance Angle | 5° |
| Coating | Uncoated |
| Corner Radius | 1/64" |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 16 mm |
| Depth Of Cut | 0.1 mm to 0.3 mm |
| Grade | Grade WCB50 |
| Included Angle | 35° |
| Inscribed Circle | 3/8" |
| Insert Code | VBMW331 |
| Insert Holding Type | 40° to 60°Countersink Hole |
| Insert Material | Carbide |
| Insert Size | 16 |
| Insert Style | VBMW |
| Iso Number | VBMW160404-2 |
| Iso Number | VBMW160404-2WCB50 |
| Manufacturer Grade | Wcb50 |
| Material - Machining | CBN |
| Measurement System | Fractional Inch |
| Mounting Style | Screw Clamp |
| No. Of Edges | 2 |
| Nose Radius | 0.015" |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Hardened Steel |
| Primary Material Application Iso Code | H |
| Rake | Positive |
| Relief Angle | 5 Degrees |
| Relief Angle | 5° |
| Shape | Rhombic |
| Style | VBMW |
| Thickness | 3/16" |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 1.5 |
| Ship length (cm) | 4.09 |
| Ship width (cm) | 3.91 |
| HS code | 8209000030 |
| Country of Origin | JP |
Product Details:
- Cast Iron (K) Compatibility (No)
- Hardened (H) Compatibility (Yes)
- Non Ferrous (N) Compatibility (No)
- Stainless (M) Compatibility (No)
- Steel (P) Compatibility (No)
- Super Alloy (S) Compatibility (No)
