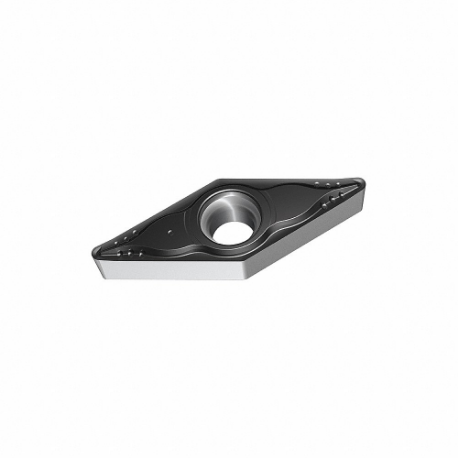

WALTER TOOLS VBMT160412-MP4 WPP20S Diamond Turning Insert, Neutral, 3/16 Inch Thick, 3/64 Inch Corner Radius
Get it by Friday, Aug 21
This product can only be shipped in multiples of 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Turning Insert |
| Ansi Code | VBMT333-MP4 WPP20S |
| Chip Breaker | Yes |
| Chip-breaker Code | MP4 |
| Clearance Angle | 5° |
| Corner Radius | 3/64" |
| Cutting Application | Turning |
| Cutting Depth | 0.5 mm to 2 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 16 mm |
| Cutting Speed | 560 SFPM to 950 SFPM |
| Dia. Of Inscribed Circle | 3/8" |
| Feed Rate | 0.005" to 0.013" |
| Finish-machining | Ticn+Al2O3+Ticn |
| Included Angle | 35° |
| Inscribed Circle | 3/8" |
| Insert Code | VBMT333 |
| Insert Holding Angle | 40° to 60.0° |
| Insert Holding Type | 40° To 60° Countersink Hole |
| Insert Style | VBMT |
| Insert Thickness | 0.188" |
| Iso Number | VBMT160412-MP4 WPP20S |
| Major Clearance Angle | 5° |
| Manufacturer Grade | Wpp20S |
| Material | Carbide |
| Material-machining | Carbide |
| Measurement System | Fractional Inch |
| No. Of Cutting Edges | 2 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Radius | 0.047" |
| Rake | Positive |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 3/16" |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Cutting Edge Length | Thickness | Material | Manufacturer Grade | Material-machining | Finish-machining | Primary Material Application Iso Code | Cutting Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X5 WAK15 | 0.254" | - | Carbide | Wak15 | Carbide | Ticn+Al2O3+(Tin) | K | - | €39.70 | |
| CCGT060202-X15 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 | |
| CCGT060204-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.28 | |
| CCGT060204-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.23 | |
| CCGT060204-X5 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 |
