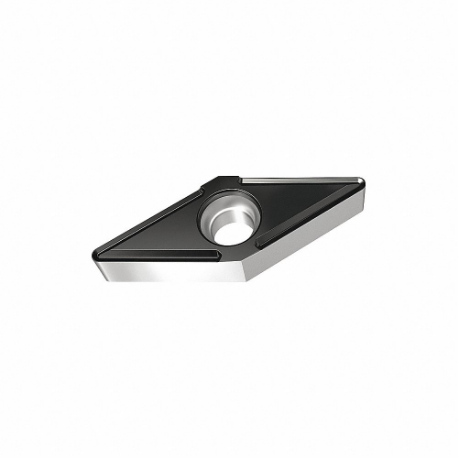

WALTER TOOLS VBMT110304-FP6 WPP10S Diamond Turning Insert, Neutral, 1/8 Inch Thick, 1/64 Inch Corner Radius
Get it by Thursday, Dec 18
This product can only be shipped in multiples of 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Turning Insert |
| Ansi Code | VBMT221-FP6 WPP10S |
| Chip-breaker | Yes |
| Chip-breaker Code | FP6 |
| Clearance Angle | 5° |
| Corner Radius | 1/64" |
| Cutting Application | Turning |
| Cutting Depth | 0.3 mm to 2 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 11.07 mm |
| Finish - Machining | Ticn+Al2O3+Ticn |
| Included Angle | 35° |
| Inscribed Circle | 1/4" |
| Insert Code | VBMT221 |
| Insert Holding Angle | 40° to 60.0° |
| Insert Style | VBMT |
| Iso Number | VBMT110304-FP6 WPP10S |
| Manufacturer Grade | Wpp10S |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Rake | Positive |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Insert Code | Corner Radius | Clearance Angle | Cutting Direction | Insert Style | Thickness | Inscribed Circle | Chip-breaker Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | €40.13 | |
| CCGT060202-X5 WAK15 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X5 | €39.70 | |
| CCGT060202-X15 WTP35 | CCGT.5 | 0.008" | 7° | Neutral | CCGT | - | - | X15 | €40.13 | |
| CCGT060202-X15 WXM15 | CCGT.5 | 0.008" | - | Neutral | CCGT | - | - | X15 | €39.70 | |
| CCGT060204-X5 WTP35 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | €40.28 | |
| CCGT060204-X15 WXM15 | CCGT1 | 1/64" | - | Neutral | CCGT | - | - | X15 | €39.23 | |
| CCGT060204-X5 WXM15 | CCGT1 | 1/64" | 7° | Neutral | CCGT | - | - | X5 | €39.70 |
