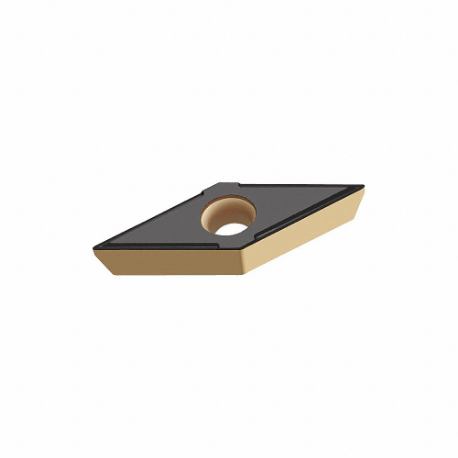

WALTER TOOLS VBGT110302-PF5 WPP20 Diamond Turning Insert, Neutral, 1/8 Inch Thick, 0.0080 Inch Corner Radius
Item: CU9NUPModel: VBGT110302-PF5 WPP20Cross Ref: 53VG85
7 In Stock
Ships within 2 days via
5.00% off
€46.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | VBGT2(2)0.5-PF5 WPP20 |
| Chip Breaker | Yes |
| Chip-breaker Code | PF5 |
| Clearance Angle | 5° |
| Corner Radius | 0.008" |
| Cutting Direction | Neutral |
| Cutting Edge Length | 11.07 mm |
| Depth Of Cut | 0.004" to 0.024" |
| Dia. Of Inscribed Circle | 1/4" |
| Feed Rate | 0.002" to 0.004" |
| Finish-machining | Ticn+Al2O3+Tin |
| Included Angle | 35° |
| Inscribed Circle | 1/4" |
| Insert Code | VBGT22.5 |
| Insert Holding Angle | 40° to 60.0° |
| Insert Holding Type | 40° To 60° Countersink Hole |
| Insert Style | VBGT |
| Insert Thickness | 1/8" |
| Iso Number | VBGT110302-PF5 WPP20 |
| Major Clearance Angle | 5° |
| Manufacturer Grade | WPP20 |
| Material | Carbide |
| Material-machining | Carbide |
| Measurement System | Fractional Inch |
| No. Of Cutting Edges | 2 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Radius | 0.008" |
| Rake | Positive |
| Shape | Rhombic |
| System Of Measurement | Imperial |
| Thickness | 1/8" |
Shipping Info:
| Ship weight (kg) | 0.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Cutting Edge Length | Thickness | Material | Manufacturer Grade | Material-machining | Finish-machining | Primary Material Application Iso Code | Cutting Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| CCGT060202-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X5 WAK15 | 0.254" | - | Carbide | Wak15 | Carbide | Ticn+Al2O3+(Tin) | K | - | €39.70 | |
| CCGT060202-X15 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.13 | |
| CCGT060202-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 | |
| CCGT060204-X5 WTP35 | 0.254" | - | - | Wtp35 | - | Ticn+Tin | P | - | €40.28 | |
| CCGT060204-X15 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.23 | |
| CCGT060204-X5 WXM15 | 0.254" | - | - | Wxm15 | - | Tialn+Tin | - | - | €39.70 |
