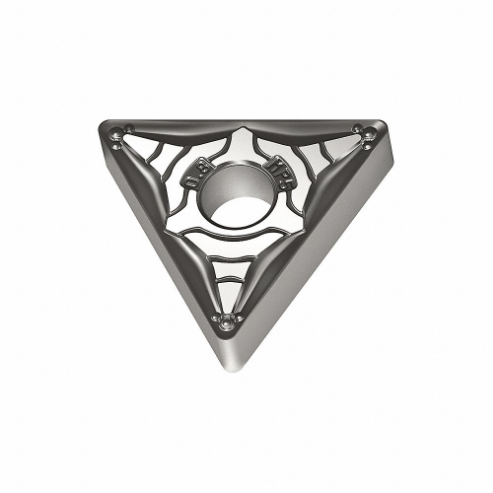

WALTER TOOLS TNMG220408-MP5 WPP10S Triangle Turning Insert, 1/2 Inch Inscribed Circle, Neutral, Mp5 Chip-Breaker
Get it by Monday, Aug 17
This product can only be shipped in multiples of 10
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Turning Insert |
| Ansi Code | TNMG432-MP5 WPP10S |
| Chip Breaker | Yes |
| Chip-breaker Code | MP5 |
| Clearance Angle | 0° |
| Coating Process | CVD |
| Corner Radius | 0.8 mm |
| Cutting Application | Turning |
| Cutting Depth | 0.8 mm to 5 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 22 mm |
| Dia. Of Inscribed Circle | 1/2" |
| Feed Rate | 0.007" to 0.014" |
| Finish-machining | Ticn+Al2O3+Ticn |
| Included Angle | 60° |
| Inscribed Circle | 1/2" |
| Insert Code | TNMG432 |
| Insert Holding Type | Straight Hole |
| Insert Style | TNMG |
| Insert Thickness | 0.188" |
| Iso Number | TNMG220408-MP5 WPP10S |
| Major Clearance Angle | 0° |
| Manufacturer Grade | Wpp10S |
| Material | Carbide |
| Material-machining | Carbide |
| No. Of Cutting Edges | 3 , 6 |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Radius | 0.031" |
| Rake | Negative |
| Secondary Material Application | Cast Iron |
| Secondary Material Application Iso Code | K |
| Shape | Triangle |
| System Of Measurement | Metric |
| Thickness | 4.76 mm |
| Through Hole Inside Dia. | 5.16 mm |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Country of Origin | DE |
Product Variants
| Product | Model | Cutting Edge Length | Thickness | Material | Manufacturer Grade | Material-machining | Finish-machining | Cutting Depth | Primary Material Application Iso Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
WCGT020104-FN2 WNN10 | 0.106" | - | - | - | - | - | - | - | €31.68 | |
|
WCGT020102-FN2 WNN10 | 0.106" | - | - | - | - | - | - | - | €32.51 | |
 |
WNMG080412-MU5 WMP20S | 0.342" | - | - | - | - | - | - | - | €34.68 | |
 |
WNGA080408TM-3 WBH10 | 0.342" | - | - | - | - | - | - | - | €248.20 | |
 |
WNMG080404-MS3 WSM10S | 0.342" | - | - | - | - | - | - | - | €34.06 | |
 |
WNMG080408-NRS WSM01 | 0.342" | - | - | - | - | - | - | - | €34.88 | |
|
WNMG080412-MU5 WPP10S | 0.342" | - | - | - | - | - | - | - | - | RFQ
|
