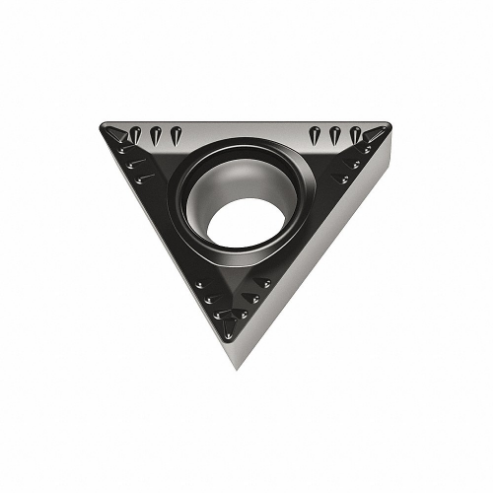

WALTER TOOLS TCMT110204-RM4 WMP20S 6955958 Triangle Turning Insert, 1/4 Inch Inscribed Circle, Neutral, Rm4 Chip-Breaker
Item: CU9QHRModel: TCMT110204-RM4 WMP20SCross Ref: 53WJ63 / 6955958
7 In Stock
Ships within 2 days via
5.00% off
€23.24 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | TCMT2(1.5)1-RM4 WMP20S |
| Chip Breaker | Yes |
| Chip-breaker Code | RM4 |
| Clearance Angle | 7° |
| Corner Radius | 0.4 mm |
| Cutting Application | Turning |
| Cutting Depth | 0.4 mm to 3 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 11 mm |
| Cutting Speed | 350 SFPM to 570 SFPM |
| Dia. Of Inscribed Circle | 1/4" |
| Feed Rate | 0.005" to 0.01" |
| Finish-machining | Ticn+Al2O3+Ticn |
| Included Angle | 60° |
| Inscribed Circle | 1/4" |
| Insert Code | TCMT21.51 |
| Insert Holding Angle | 40° to 60.0° |
| Insert Holding Type | 40° To 60° Countersink Hole |
| Insert Style | TCMT |
| Insert Thickness | 0.094" |
| Iso Number | TCMT110204-RM4 WMP20S |
| Major Clearance Angle | 7° |
| Manufacturer Grade | WMP20S |
| Material | Carbide |
| Material-machining | Carbide |
| No. Of Cutting Edges | 3 |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P |
| Radius | 0.016" |
| Rake | Positive |
| Shape | Triangle |
| System Of Measurement | Metric |
| Thickness | 2.38 mm |
| Through Hole Inside Dia. | 2.8 mm |
Shipping Info:
| Ship weight (kg) | 0.01 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
