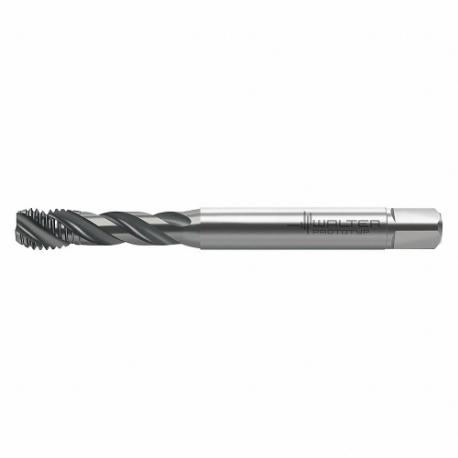

WALTER TOOLS TC121-M2-C0-WW60RG 7240800 Spiral Flute Tap, M2X0.4 Thread Size, 4 mm Thread Length, 45 mm Length, Tialn
Item: CU9FCBModel: TC121-M2-C0-WW60RGCross Ref: 429F76 / 7240800
7 In Stock
Ships within 2 days via
€133.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | #51 |
| 65% Thread Drill Size | 1.65 mm |
| 75% Thread Drill Size | 1.6 mm |
| Clamping Width | 0.083" |
| Connection Dia. | 0.11" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 1.6 mm |
| Driving Square Length | 0.197" |
| Extended Neck | Yes |
| Finish | Titanium Aluminum Nitride Coated |
| Functional Length | 1.772" |
| Grade | Grade WW60RG |
| Helix Angle | 40° |
| Material Grade-machining | Grade WW60RG |
| No. Of Flutes | 3 |
| No. Of Grooves | 3 |
| Overall Length | 45 mm |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Aluminum, Brass, Bronze, Cast Iron, Copper, Stainless Steel |
| Secondary Material Application Iso Code | K, M, N |
| Shank Dia. | 2.8 mm |
| Shank Length | 37.4 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 2.1 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | TiAlN |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 371 |
| Tap Style | Spiral Flute |
| Tap Thread Size | M2 x 0.4 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 4 mm |
| Thread Limit | 6HX |
| Thread Limit/class Of Fit | 6HX |
| Thread Size | M2 x 0.4 |
| Thread Standard | Metric Coarse |
| Usable Length | 0.299" |
Shipping Info:
| Ship height (cm) | 2.54 |
| Ship length (cm) | 4.5 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Direction | Thread Limit | Thread Length | Overall Length | 75% Thread Drill Size | Tap Finish | Tap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
23400-UNF0 | #0-80 | Right Hand | H1 | 6 mm | 40 mm | 1.2 mm | Bright | High Speed Steel | €109.99 | |
|
23410-UNF0 | #0-80 | Right Hand | H1, H2 | 6 mm | 40 mm | 1.2 mm | Bright | High Speed Steel | €106.75 | |
 |
AS2251005-UNC10 | #10-24 | Right Hand | H3, H4 | 11 mm | 70 mm | #25 | TiN, Vap | High Speed Steel | €70.70 | |
 |
EP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 8 mm | 70 mm | #25 | THL | High Speed Steel | €87.87 | |
 |
22410-UNC10 | #10-24 | Right Hand | H3, H4 | 8 mm | 70 mm | #25 | Bright | High Speed Steel | €68.67 | |
 |
AEP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 8 mm | 70 mm | #25 | THL | High Speed Steel | €87.87 | |
 |
TC115-UNC10-C0-WY80AA | #10-24 | Right Hand | H3, H4 | 8 mm | 70 mm | #25 | TiN | High Speed Steel | €32.73 |
