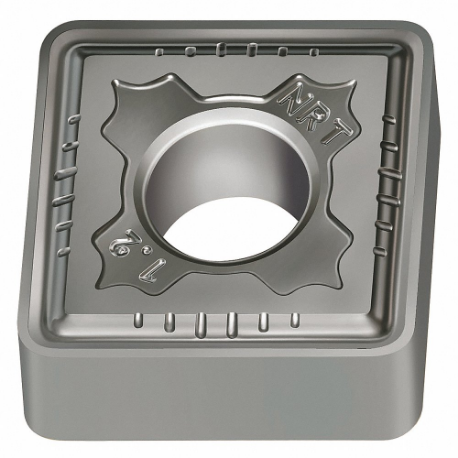

WALTER TOOLS SNMG150612-NRT WSM20S Square Turning Insert, 5/8 Inch Inscribed Circle, Neutral, 3/64 Inch Corner Radius
Item: CU9PZQModel: SNMG150612-NRT WSM20SCross Ref: 449Y29
7 In Stock
Ships within 2 days via
10.00% off
€46.55 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | SNMG544-NRT |
| Chip-breaker | Yes |
| Chip-breaker Code | NRT |
| Clearance Angle | 0° |
| Coating Process | PVD |
| Corner Radius | 3/64" |
| Cutting Application | Turning |
| Cutting Depth | 1 mm to 7.5 mm |
| Cutting Direction | Neutral |
| Cutting Edge Length | 15.88 mm |
| Finish - Machining | Tialn+Al2O3+Al |
| Included Angle | 90° |
| Inscribed Circle | 5/8" |
| Insert Code | SNMG543 |
| Insert Holding Type | Straight Hole |
| Insert Style | SNMG |
| Iso Number | SNMG150612-NRT |
| Manufacturer Grade | Wsm20S |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number Of Cutting Edges | 8 |
| Primary Material Application | Nickel, Stainless Steel, Titanium |
| Primary Material Application Iso Code | M, S |
| Rake | Negative |
| Shape | Square |
| System Of Measurement | Imperial |
| Thickness | 1/4" |
Shipping Info:
| Ship weight (kg) | 0.2 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Insert Code | Cutting Direction | Clearance Angle | Insert Style | Corner Radius | Inscribed Circle | Thickness | Chip-breaker Code | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SNMM250716-NRF WPP30S | SNMM154 | Neutral | 0° | SNMM | 0.062" | 1" | 0.312" | NRF | - | RFQ
|
 |
SNMM250716-NRR WPP20S | SNMM154 | Neutral | 0° | SNMM | 1/16" | 1" | 5/16" | NRR | - | RFQ
|
|
SNMM250916-NRF WPP20S | SNMM164 | Neutral | 0° | SNMM | 1/16" | 1" | 3/8" | NRF | - | RFQ
|
 |
SNMM250924-HU5 WSM20S | SNMM166 | Neutral | 0° | SNMM | 3/32" | 1" | 3/8" | HU5 | - | RFQ
|
|
SNMM250924-NRF WPP20S | SNMM166 | Neutral | 0° | SNMM | 3/32" | 1" | 3/8" | NRF | - | RFQ
|
|
SNMM250724-NRR WAK30 | SNMM156 | Neutral | 0° | SNMM | 3/32" | 1" | 5/16" | NRR | - | RFQ
|
|
SNMM250924-NRF WPP30S | SNMM166 | Neutral | 0° | SNMM | 3/32" | 1" | 3/8" | NRF | - | RFQ
|
