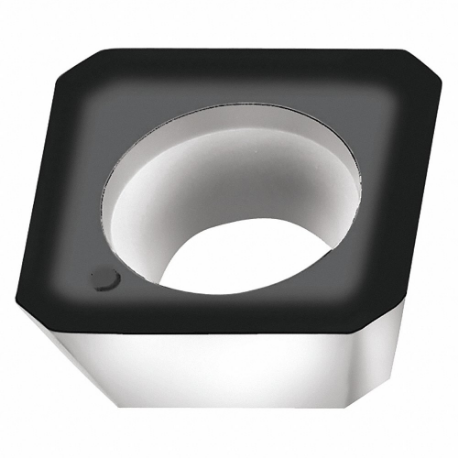

WALTER TOOLS SEHT1204AFN WKP35S Square Milling Insert, 1/2 Inch Inscribed Circle, 1/32 Inch Corner Radius, 3/16 Inch Thick
Item: CU8MLNModel: SEHT1204AFN WKP35SCross Ref: 56RE69
7 In Stock
Ships within 2 days via
5.00% off
€56.65 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Ansi Code | SEHT1204AFN |
| Ansi Number | SEHT1204AFN |
| Chip Breaker | Yes |
| Chip-breaker Code | A57 |
| Clearance Angle | 20° |
| Coating | Chemical vapor deposition |
| Coating Process | CVD |
| Corner Radius | 1/32" |
| Cutting Edge Length | 12.7 mm |
| Finish | Titanium Carbonitride, Aluminum Oxide |
| Finish-machining | Ticn+Al2O3+(Ticn) |
| Hole Type | With Hole |
| Indexable Insert Tolerance Class | Class H |
| Inscribed Circle | 1/2" |
| Insert Size | 1204 |
| Insert Style | SEHT |
| Insert Thickness | 0.187" |
| Iso Number | SEHT1204AFN |
| Major Clearance Angle | 20° |
| Manufacturer Grade | Wkp35S |
| Material | Carbide |
| Material-machining | Carbide |
| Measurement System | Fractional Inch |
| No. Of Cutting Edges | 4 |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Radius | 0.031" |
| Rake | Positive |
| Shape | Square |
| Style | SEHT |
| System Of Measurement | Imperial |
| Thickness | 3/16" |
| Wiper Cutting Edge Length | 0.079" |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Insert Size | Cutting Edge Length | Thickness | Manufacturer Grade | No. Of Cutting Edges | Style | Rake | Ansi Number | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SPMW070308-A67 WKP25S | 70308 | 7.94 mm | 1/8" | - | 4 | SPMW | Positive | SPMW070308-A67 | €21.61 | |
 |
SNHQ1205ZZR-A57T WKP35S | 1205 | 12 mm | 0.197" | Wkp35S | 8 | SNHQ | Negative | SNHQ1205ZZR-A57T | €87.52 | |
|
SNHQ1205ZZR-A57T WAK15 | 1205 | 12 mm | 0.197" | Wak15 | 8 | SNHQ | Negative | SNHQ1205ZZR-A57T | €85.92 | |
|
SNHQ1205ZZR-A57T WKP25S | 1205 | 12 mm | 0.197" | - | 8 | SNHQ | Negative | SNHQ1205ZZR-A57T | €87.52 | |
 |
SNMX160620-D27 WKP35G | 160620 | 16 mm | 0.251" | Wkp35G | 4 | SNMX | Negative | SNMX160620-D27 | - | RFQ
|
|
SNMX160640-F57 WKP35G | 160640 | 16 mm | 0.251" | Wkp35G | 4 | SNMX | Negative | SNMX160640-F57 | - | RFQ
|
 |
SDMW1204AZN-A57 WKP35S | 1204 | 12.7 mm | 3/16" | Wkp35S | 4 | SDMW | Positive | SDMW1204AZN-A57 | €34.18 |
