WALTER TOOLS SDGT09T3PDR-D57 WKP25S 6556205 Square Milling Insert, 3/8 Inch Inscribed Circle, 1/32 Inch Corner Radius, 5/32 Inch Thick
Item: CU8MUDModel: SDGT09T3PDR-D57 WKP25SCross Ref: 56RH23 / 6556205
7 In Stock
Ships within 2 days via
10.00% off
€32.34 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Ansi Code | SDGT09T3PDR-D57 |
| Ansi Number | SDGT09T3PDR-D57 |
| Chip-breaker | Yes |
| Chip-breaker Code | D57 |
| Clearance Angle | 15° |
| Coating | Chemical vapor deposition |
| Coating Process | CVD |
| Corner Radius | 1/32" |
| Cutting Edge Length | 9.52 mm |
| Finish | Titanium Carbonitride, Aluminum Oxide |
| Finish - Machining | Ticn+Al2O3+(Ticn) |
| Hole Type | With Hole |
| Inscribed Circle | 3/8" |
| Insert Size | 09T3 |
| Insert Style | SDGT |
| Iso Number | SDGT09T3PDR-D57 |
| Manufacturer Grade | Wkp25S |
| Material | Carbide |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Number Of Cutting Edges | 4 |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Rake | Positive |
| Shape | Square |
| Style | SDGT |
| System Of Measurement | Imperial |
| Thickness | 5/32" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Ansi Number | Inscribed Circle | Thickness | Iso Number | Corner Radius | Insert Size | Number Of Cutting Edges | Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

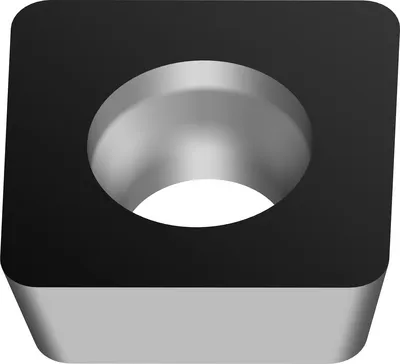

SPMW070308-A67 WKP25S | SPMW070308-A67 | 0.314" | 1/8" | - | 0.031" | 70308 | 4 | SPMW | €21.61 | |
 |

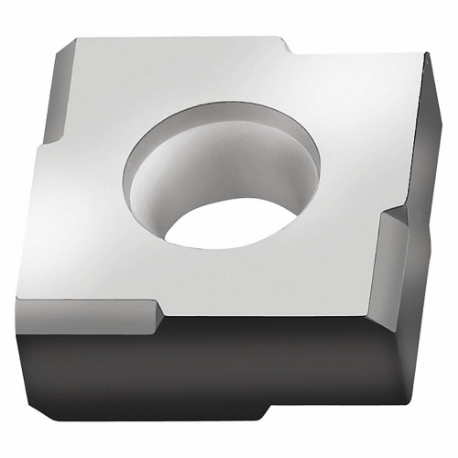

SNHQ1205ZZR-A57T WKP35S | SNHQ1205ZZR-A57T | 0.472" | 0.197" | SNHQ1205ZZR-A57T | - | 1205 | 8 | SNHQ | €87.52 | |
|
SNHQ1205ZZR-A57T WAK15 | SNHQ1205ZZR-A57T | 0.472" | 0.197" | SNHQ1205ZZR-A57T | - | 1205 | 8 | SNHQ | €85.92 | |
|
SNHQ1205ZZR-A57T WKP25S | SNHQ1205ZZR-A57T | 0.472" | 0.197" | - | - | 1205 | 8 | SNHQ | €87.52 | |
 |

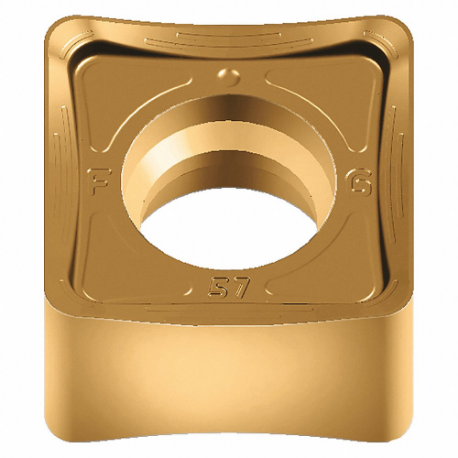

SNMX160620-D27 WKP35G | SNMX160620-D27 | - | 0.251" | SNMX160620-D27 | 0.079" | 160620 | 4 | SNMX | - | RFQ
|
|
SNMX160640-F57 WKP35G | SNMX160640-F57 | 0.63" | 0.251" | SNMX160640-F57 | 0.157" | 160640 | 4 | SNMX | - | RFQ
|
 |

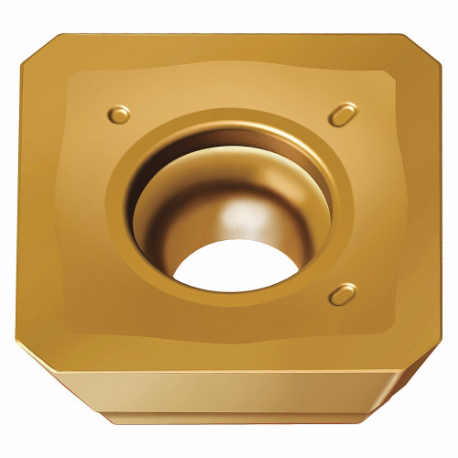

SDMW1204AZN-A57 WKP35S | SDMW1204AZN-A57 | 1/2" | 3/16" | SDMW1204AZN-A57 | 0.012" | 1204 | 4 | SDMW | €34.18 |
