WALTER TOOLS SCMT433-RM4 Carbide Turning Insert SCMT120412-RM4
Item: AH4YRZModel: SCMT433-RM4Cross Ref: 35RF38
7 In Stock
Ships within 2 days via
10.00% off
€32.89 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Turning Insert |
| Ansi Code | SCMT433-RM4 |
| Applications | Medium |
| Chip-breaker | Yes |
| Chip-breaker Code | RM4 |
| Clearance Angle | 7° |
| Coating | PVD |
| Coating Process | PVD |
| Corner Radius | 3/64" |
| Cutting Application | Turning |
| Cutting Direction | Neutral |
| Cutting Edge Length | 12.7 mm |
| Depth Of Cut | 0.8 mm to 5 mm |
| Finish - Machining | Ticn+Al2O3+Ticn |
| Grade | WMP20S |
| Included Angle | 90° |
| Inscribed Circle | 0.5" |
| Insert Code | SCMT433 |
| Insert Holding Type | 40° to 60°Countersink Hole |
| Insert Size | 433 |
| Insert Style | SCMT |
| Iso Number | SCMT120412-RM4 |
| Manufacturer Grade | WMP20S |
| Material - Machining | Carbide |
| Measurement System | Fractional Inch |
| Mounting Style | Screw |
| No. Of Edges | 4 |
| Number Of Cutting Edges | 4 |
| Primary Application | Medium |
| Primary Material Application | Stainless Steel, Steel |
| Primary Material Application Iso Code | M, P |
| Rake | Positive |
| Relief Angle | 7° |
| Relief Angle | 7 Degrees |
| Shape | Square |
| Style | SCMT |
| Thickness | 3/16" |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 1.1 |
| Ship length (cm) | 9.8 |
| Ship width (cm) | 1.4 |
| Country of Origin | DE |
Product Details:
- Workpiece Compatibility : Stainless (M), Steel (P)
- Steel (P) Compatibility : Yes
- Stainless (M) Compatibility : Yes
- Cast Iron (K) Compatibility : No
- Non Ferrous (N) Compatibility : No
- Super Alloy (S) Compatibility : No
- Hardened (H) Compatibility : No
Product Variants
| Product | Model | Inscribed Circle | Thickness | Grade | Insert Code | Insert Style | Clearance Angle | Corner Radius | Primary Material Application | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

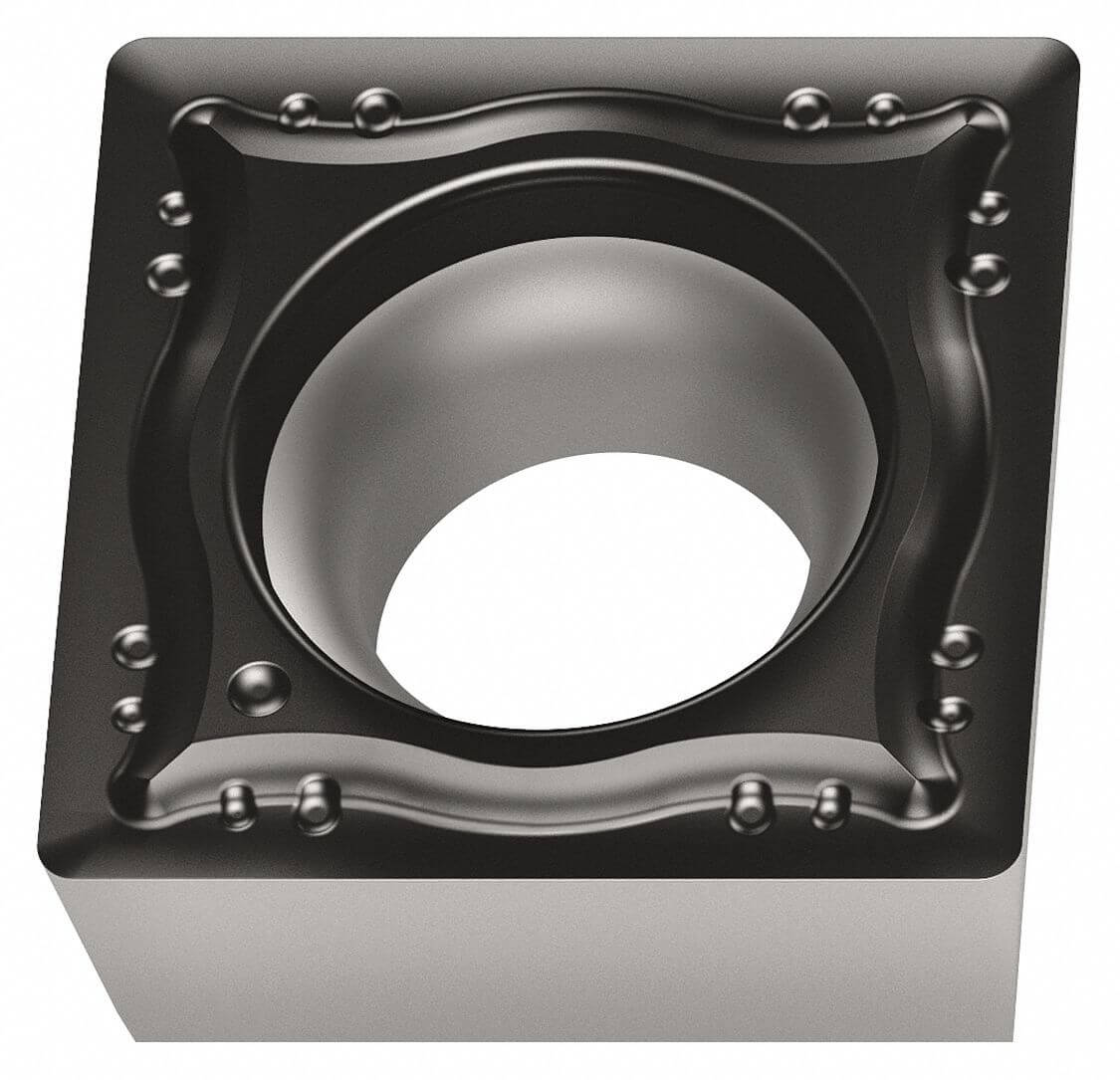

SCGT3(2.5)1-MP4 | 0.375" | 5/32" | Grade WPP20S | SCGT32.51 | SCGT | 7° | 1/64" | Steel | €46.67 | |
 |
SPGT3(2.5)2-MP4 | 0.375" | 5/32" | Grade WPP20S | SPGT32.52 | SPGT | 11° | 1/32" | Steel | - | RFQ
|
 |
SCMT3(2.5)2-FP4 | 0.375" | 5/32" | Grade WPP10S | SCMT32.52 | SCMT | 7° | 1/32" | Steel | - | RFQ
|
|
SCMT3(2.5)1-FP4 | 0.375" | 5/32" | Grade WPP20S | SCMT32.51 | SCMT | 7° | 1/64" | Steel | €22.68 | |
|

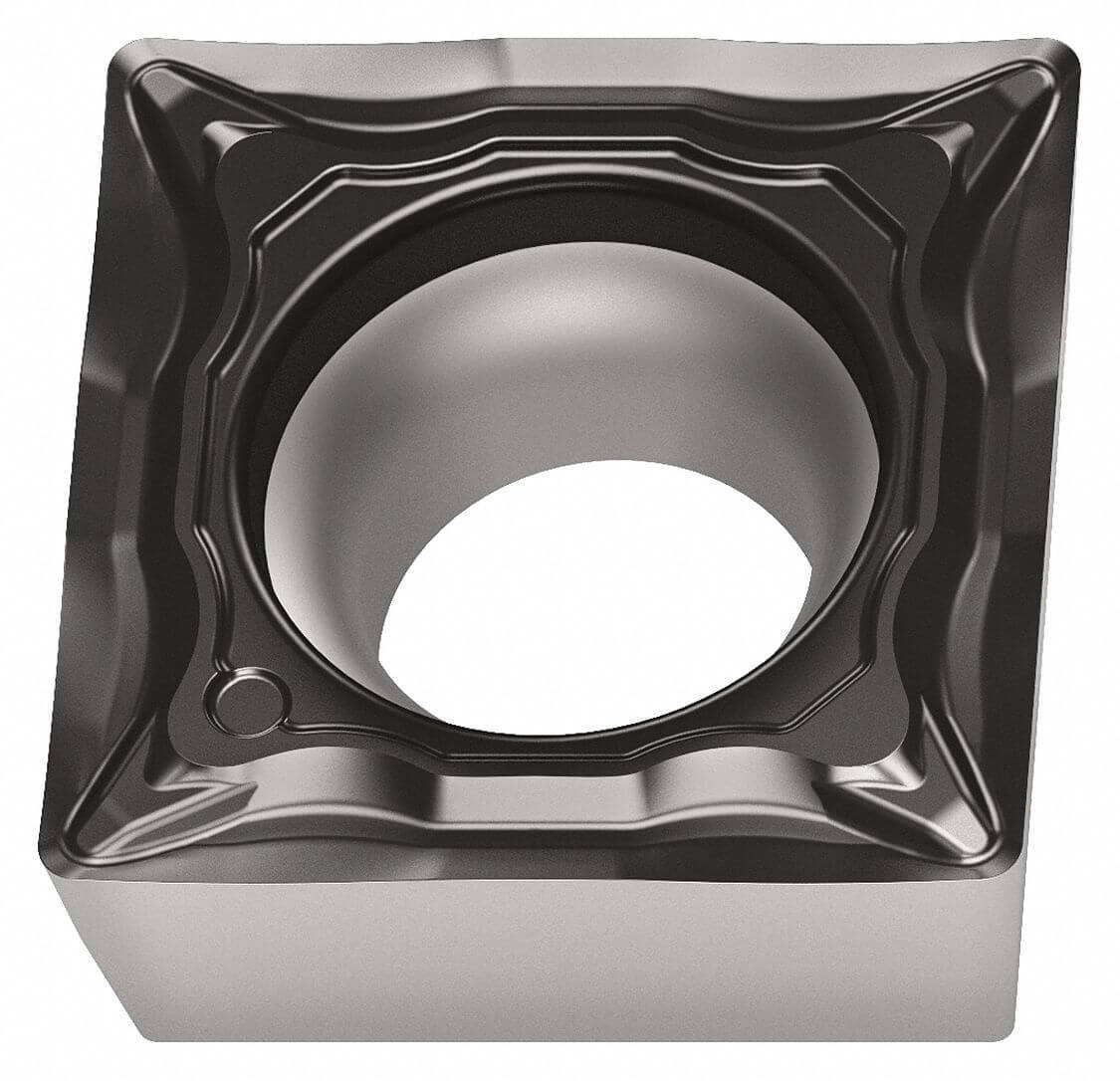

SCMT3(2.5)2-FP4 | 0.375" | 5/32" | Grade WPP20S | SCMT32.52 | SCMT | 7° | 1/32" | Steel | - | RFQ
|
|
SCMT431-FP4 | 0.5" | 3/16" | Grade WPP20S | SCMT431 | SCMT | 7° | 1/64" | Steel | - | RFQ
|
|

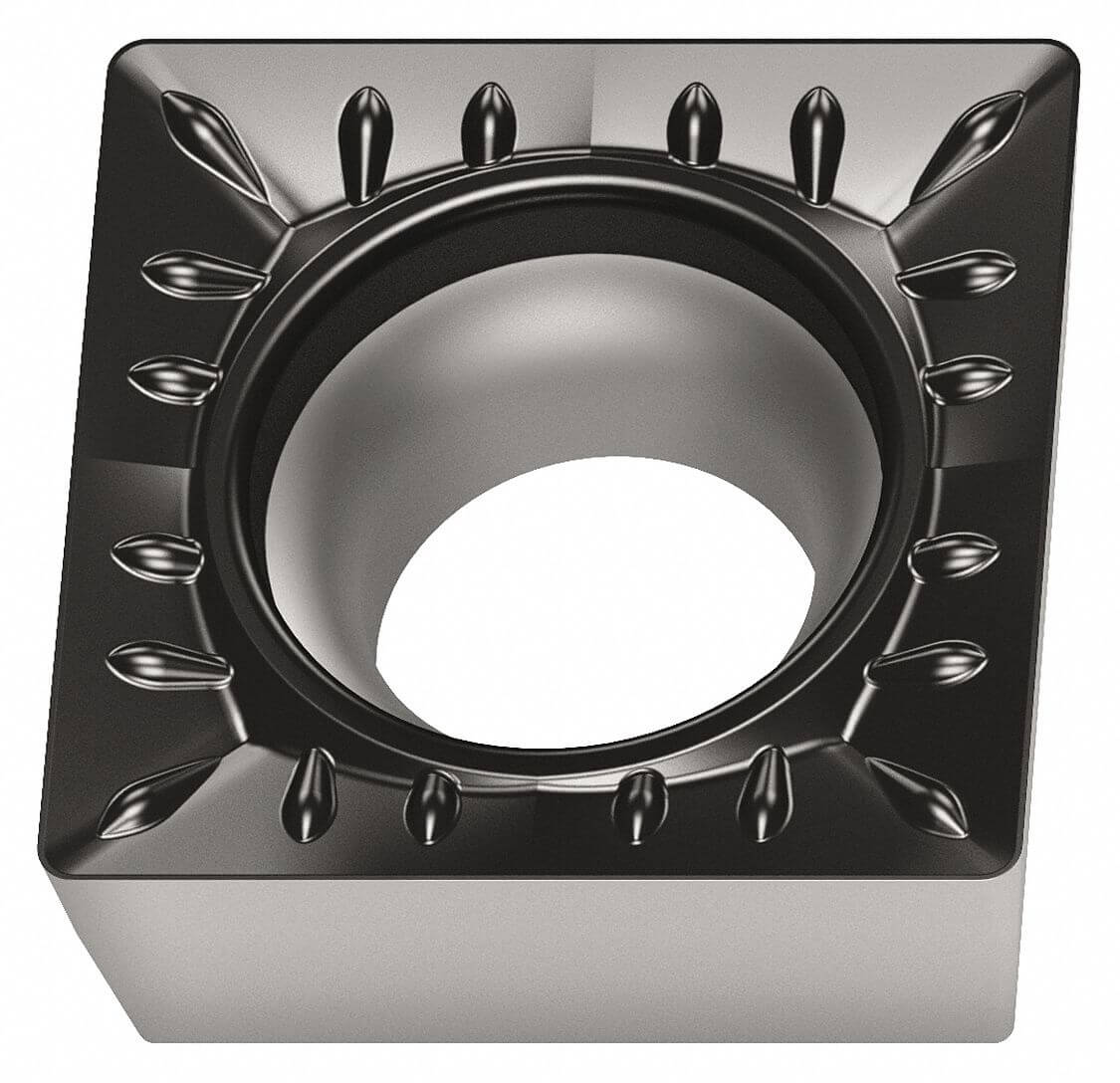

SCMT432-FP4 | 0.5" | 3/16" | Grade WPP20S | SCMT432 | SCMT | 7° | 1/32" | Steel | - | RFQ
|
