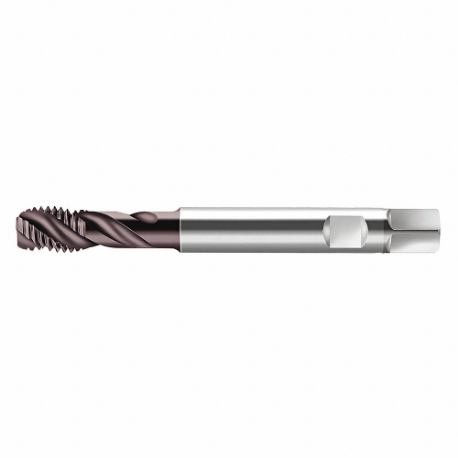

WALTER TOOLS S2056302-M16 5101696 Spiral Flute Tap, M16X2 Thread Size, 21 mm Thread Length, 110 mm Length
Item: CU9EUAModel: S2056302-M16Cross Ref: 429D45 / 5101696
7 In Stock
Ships within 2 days via
€189.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 14.5 mm |
| 65% Thread Drill Size | 9/16" |
| 75% Thread Drill Size | 14 mm |
| Clamping Width | 0.472" |
| Connection Dia. | 0.63" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 14 mm |
| Driving Square Length | 0.591" |
| Extended Neck | Yes |
| Finish | Titanium Halogen Nitride Coated |
| Functional Length | 4.331" |
| Helix Angle | 40° |
| No. Of Flutes | 4 |
| Overall Length | 110 mm |
| Primary Material Application | Cast Iron, Stainless Steel, Steel |
| Primary Material Application Iso Code | K, M, P |
| Secondary Material Application | Aluminum, Brass, Bronze, Composite, Copper, Nickel, Titanium |
| Secondary Material Application Iso Code | N, O, S |
| Shank Dia. | 16 mm |
| Shank Length | 55 mm |
| Shank Type | Weldon Flat |
| Shank Type-machining | Weldon Flat |
| Spiral Direction | Right Hand |
| Square Size | 12 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | THL |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 376 |
| Tap Style | Spiral Flute |
| Tap Thread Size | M16 x 2 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 21 mm |
| Thread Limit | 6HX |
| Thread Limit/class Of Fit | 6HX |
| Thread Pitch | 2 mm |
| Thread Size | M16 x 2 |
| Thread Standard | Metric Coarse |
| Usable Length | 2.165" |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 11 |
| Ship width (cm) | 2.54 |
| Country of Origin | IN |
Product Variants
| Product | Model | Thread Size | Thread Direction | Thread Limit | Overall Length | 75% Thread Drill Size | Tap Finish | Tap Material | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
23400-UNF0 | #0-80 | Right Hand | H1 | 40 mm | 1.2 mm | Bright | High Speed Steel | Fine | €98.99 | |
|
23410-UNF0 | #0-80 | Right Hand | H1, H2 | 40 mm | 1.2 mm | Bright | High Speed Steel | Fine | €96.08 | |
 |
AS2251005-UNC10 | #10-24 | Right Hand | H3, H4 | 70 mm | #25 | TiN, Vap | High Speed Steel | Coarse | €64.00 | |
 |
EP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 70 mm | #25 | THL | High Speed Steel | Coarse | €75.51 | |
 |
22410-UNC10 | #10-24 | Right Hand | H3, H4 | 70 mm | #25 | Bright | High Speed Steel | Coarse | €61.80 | |
 |
AEP2251302-UNC10 | #10-24 | Right Hand | H3, H4 | 70 mm | #25 | THL | High Speed Steel | Coarse | €75.20 | |
 |
TC115-UNC10-C0-WY80AA | #10-24 | Right Hand | H3, H4 | 70 mm | #25 | TiN | High Speed Steel | Coarse | €29.45 |
