WALTER TOOLS S2051312-M8 Spiral Flute Tap, M8X1.25 Thread Size, 13.50 mm Thread Length, 90 mm Length | CU9FYL 429D26

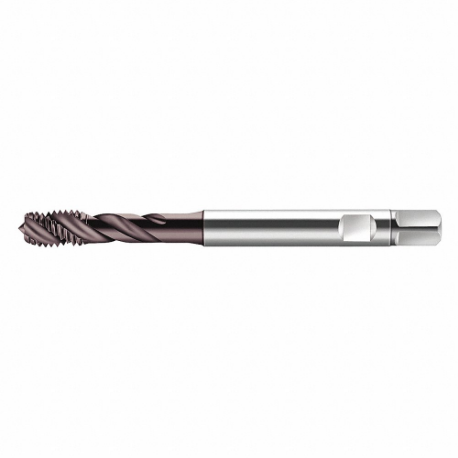

WALTER TOOLS S2051312-M8 5101704 Spiral Flute Tap, M8X1.25 Thread Size, 13.50 mm Thread Length, 90 mm Length

Item: CU9FYLModel: S2051312-M8Cross Ref: 429D26 / 5101704
7 In Stock

Ships within 2 days via

€187.76
10.00% off
€168.98 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Spiral Flute Tap
55% Thread Drill Size 7.1 mm
65% Thread Drill Size I
75% Thread Drill Size H
Coolant Fed Non Coolant Through
Drill Bit Size 6.8 mm
Extended Neck Yes
Features For Long-Chipping Materials, Rigid Tapping
Finish Titanium Nitride Coated
Helix Angle 40°
Number Of Flutes 3
Overall Length 90 mm
Primary Material Application Cast Iron, Stainless Steel, Steel
Primary Material Application Iso Code K, M, P
Secondary Material Application Aluminum, Brass, Bronze, Composite, Copper, Nickel, Titanium
Secondary Material Application Iso Code N, O, S
Shank Dia. 8 mm
Shank Length 55 mm
Shank Type Weldon Flat
Shank Type - Machining Weldon Flat
Spiral Direction Right Hand
Square Size 6.2 mm
Standards DIN 371
System Of Measurement Metric
Tap Chamfer Modified Bottoming, Semi Bottoming
Tap Finish Tin
Tap Material High Speed Steel
Tap Shank Standard DIN 371
Tap Style Spiral Flute
Tap Thread Size M8 x 1.25
Tap Type Spiral Flute
Thread Direction Right Hand
Thread Length 13.5 mm
Thread Limit 6HX
Thread Limit/class Of Fit 6HX
Thread Pitch 1.25 mm
Thread Size M8 x 1.25
Thread Standard Metric Coarse

Shipping Info:

Ship weight (kg) 0.01
Ship height (cm)2.54
Ship length (cm)9
Ship width (cm)2.54
Country of OriginIN

Product Variants

ProductModelThread SizeThread DirectionThread LimitNumber Of FlutesOverall LengthThread Length75% Thread Drill SizeTap FinishPrice
WALTER TOOLS 23400-UNF0 Spiral Flute Tap, #0-80 Thread Size, 6 mm Thread Length, 40 mm Length | CU9CWP 427D94 23400-UNF0#0-80Right HandH1340 mm6 mm1.2 mmBright€141.41
WALTER TOOLS 23410-UNF0 Spiral Flute Tap, #0-80 Thread Size, 6 mm Thread Length, 40 mm Length, Pipe | CU9CWQ 427F37 23410-UNF0#0-80Right HandH1, H2340 mm6 mm1.2 mmBright€131.93
WALTER TOOLS AS2251005-UNC10 Spiral Flute Tap, #10-24 Thread Size, 11 mm Thread Length, 70 mm Length | CU9CWR 427X07 AS2251005-UNC10#10-24Right HandH3, H4370 mm11 mm#25Tin/Vap€91.44
WALTER TOOLS EP2251302-UNC10 Spiral Flute Tap, #10-24 Thread Size, 8 mm Thread Length, 70 mm Length | CU9CWX 428H29 EP2251302-UNC10#10-24Right HandH3, H4370 mm8 mm#25THL€107.87
WALTER TOOLS 22410-UNC10 Spiral Flute Tap, #10-24 Thread Size, 8 mm Thread Length, 70 mm Length, Pipe | CU9CWZ 427D21 22410-UNC10#10-24Right HandH3, H4370 mm8 mm#25Bright€78.08
WALTER TOOLS AEP2251302-UNC10 Spiral Flute Tap, #10-24 Thread Size, 8 mm Thread Length, 70 mm Length, Thl | CU9CXB 427W20 AEP2251302-UNC10#10-24Right HandH3, H4370 mm8 mm#25THL€107.42
WALTER TOOLS TC115-UNC10-C0-WY80AA Spiral Flute Tap, #10-24 Thread Size, 8 mm Thread Length, 70 mm Length, Tin | CU9CXD 429F60 TC115-UNC10-C0-WY80AA#10-24Right HandH3, H4370 mm8 mm#25Tin€40.56
