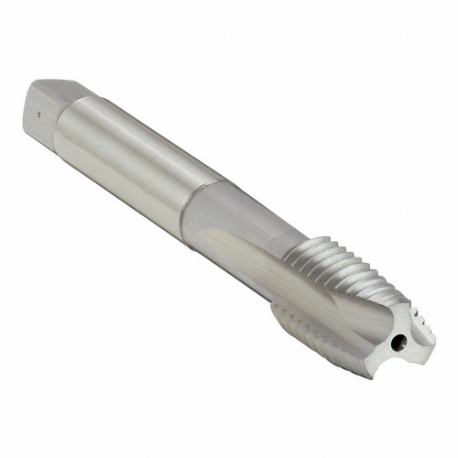

WALTER TOOLS P40360-M16 Spiral Point Tap, M16X2 Thread Size, 25 mm Thread Length, 110 mm Length | CU9HBM 429C70

WALTER TOOLS P40360-M16 6149541 Spiral Point Tap, M16X2 Thread Size, 25 mm Thread Length, 110 mm Length

Item: CU9HBMModel: P40360-M16Cross Ref: 429C70 / 6149541
7 In Stock

Ships within 2 days via

€128.49 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Spiral Point Tap
55% Thread Drill Size 14.5 mm
65% Thread Drill Size 9/16"
Clamping Width 0.354"
Connection Dia. 0.472"
Coolant Fed Non Coolant Through
Drill Bit Size 14 mm
Driving Square Length 0.472"
Extended Neck Yes
Finish Bright
Fits Class Class 2B
Functional Length 4.331"
No. Of Flutes 3
Overall Length 110 mm
Primary Material Application Aluminum, Brass, Bronze, Cast Iron, Copper, Steel
Primary Material Application Iso Code K, N, P
Secondary Material Application Composite
Secondary Material Application Iso Code O
Shank Dia. 12 mm
Shank Length 42 mm
Shank Type Straight
Shank Type-machining Straight
Spiral Direction Neutral
Square Size 9 mm
System Of Measurement Metric
Tap Chamfer Plug
Tap Finish Bright
Tap Material High Speed Steel
Tap Thread Size M16 x 2
Thread Direction Right Hand
Thread Length 25 mm
Thread Limit D5, D6
Thread Limit/class Of Fit D5, 2B, D6, 2B
Thread Pitch 2 mm
Thread Size M16 x 2
Thread Standard Metric Coarse
Usable Length 2.677"

Shipping Info:

Ship weight (kg) 0.04
Ship height (cm)2.54
Ship length (cm)11
Ship width (cm)2.54
Country of OriginDE

Product Variants

ProductModelThread SizeThread DirectionThread LimitOverall LengthTap Finish75% Thread Drill SizeTap MaterialCoolant FedPrice
WALTER TOOLS A2340876-UNF0 Spiral Flute Tap, #0-80 Thread Size, 5.50 mm Thread Length, 41.30 mm Length, Ticn | CU9CWM 427T39 A2340876-UNF0#0-80Right HandH141.3 mmTiCN1.2 mmHigh Speed SteelNon Coolant Through€117.00
WALTER TOOLS A2340806-UNF0 Spiral Flute Tap, #0-80 Thread Size, 5.50 mm Thread Length, 41.30 mm Length, Ticn | CU9CWN 427T32 A2340806-UNF0#0-80Right HandH141.3 mmTiCN1.2 mmHigh Speed SteelNon Coolant Through€103.06
WALTER TOOLS 224101-UNJC10 Spiral Flute Tap, #10-24 Thread Size, 13.50 mm Thread Length, 70 mm Length | CU9CWT 427C96 224101-UNJC10#10-24Right Hand3B70 mmBright#25High Speed SteelNon Coolant Through€132.77
WALTER TOOLS 224164-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length | CU9CWU 427D31 224164-UNC10#10-24Right HandH2, H370 mmBright#25High Speed SteelNon Coolant Through€82.98
WALTER TOOLS 22416-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length, Pipe | CU9CWV 427D37 22416-UNC10#10-24Right HandH3, H470 mmBright#25High Speed SteelNon Coolant Through€68.63
WALTER TOOLS 224102-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length, Pipe | CU9CWW 427D04 224102-UNC10#10-24Right HandH3, H470 mmBright#25High Speed SteelNon Coolant Through€68.63
WALTER TOOLS P22509-UNC10 Spiral Flute Tap, #10-24 Thread Size, 8 mm Thread Length, 70 mm Length | CU9CWY 428Z45 P22509-UNC10#10-24Right HandH2, H370 mm-#25High Speed SteelNon Coolant Through€50.64
