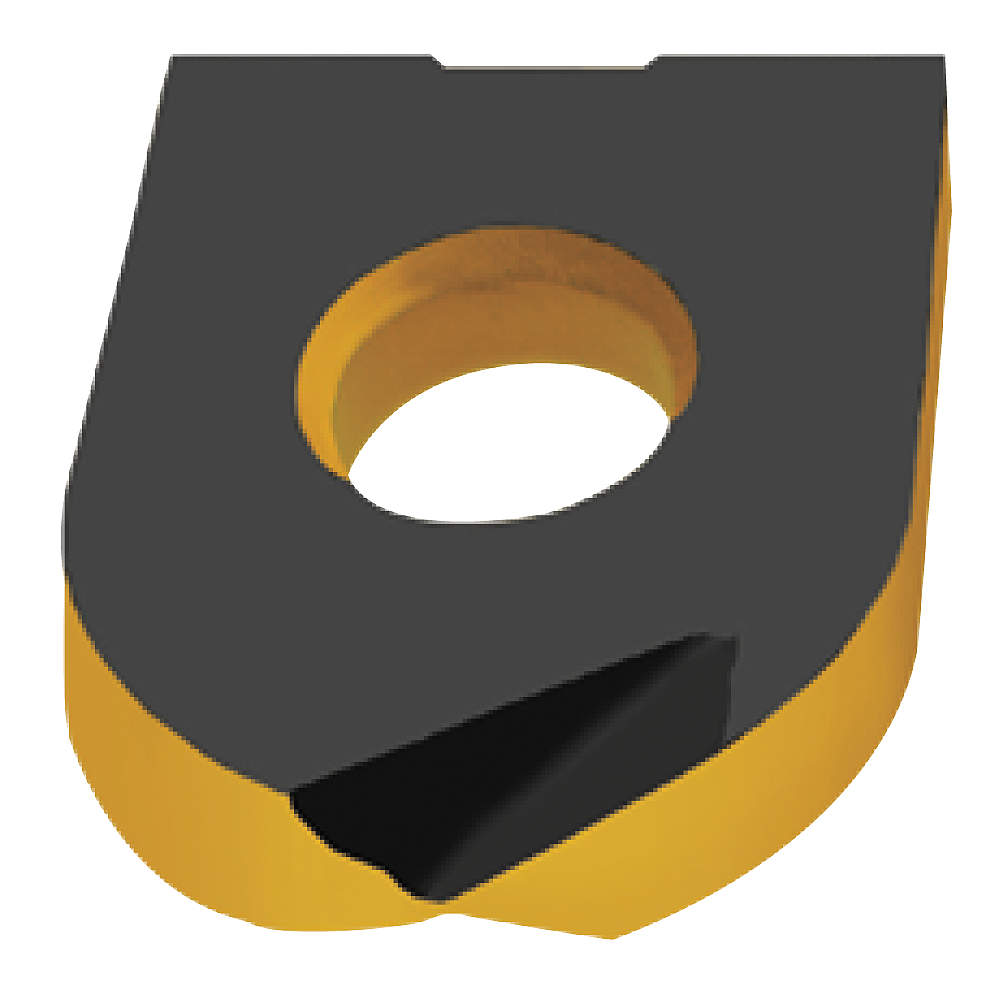

WALTER TOOLS P3201-D20 WKP35 5052103 Carbide Milling Insert P3201-d20
Item: AD4ZEYModel: P3201-D20 WKP35Cross Ref: 44T056 / 5052103
7 In Stock
Ships within 2 days via
5.00% off
€101.96 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Ansi Code | P3201-D20 |
| Ansi Number | P3201-D20 WKP35 |
| Chip Breaker | Yes |
| Chip-breaker Code | A57 |
| Chip-breaker Style | 0° Chipbreaker Groove |
| Clearance Angle | 0° |
| Coating | Chemical vapor deposition |
| Coating Process | CVD |
| Connection Dia. | 0.197" |
| Corner Radius | 10 mm |
| Cutting Application | Medium |
| Cutting Direction | Right Hand |
| Cutting Edge Length | 20 mm |
| Finish-machining | Ticn+Al2O3+Tin |
| For Use With | Profile Milling Cutter |
| Grade | Grade WKP35 |
| Indexable Insert Tolerance Class | Class H |
| Inscribed Circle | 0.787" |
| Insert Size | D20 |
| Insert Style | RP_P3201 |
| Insert Thickness | 0.118" |
| Iso Number | P3201-D20 |
| Length | 0.236" |
| Manufacturer Grade | Wkp35 |
| Material | Carbide |
| Material-machining | Carbide |
| Max. Cutting Edge Dia. Tolerance | 0.787" |
| Measurement System | Metric |
| Mounting Hole Dia. | 5 mm |
| Mounting Style | Screw Held |
| No. Of Cutting Edges | 2 |
| No. Of Edges | 2 |
| Nose Radius | 0.394" |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Rake | Positive |
| Shape | Ball Nose |
| Style | Positive |
| Thickness | 0.118" |
| Through Hole Inside Dia. | 5 mm |
| Workpiece Material | Cast Iron, Steel |
Shipping Info:
| Ship weight (kg) | 0.13 |
| Ship height (cm) | 0.74 |
| Ship length (cm) | 13.79 |
| Ship width (cm) | 5.61 |
| HS code | 8209000030 |
| Country of Origin | DE |
Product Variants
| Model | Thickness | Insert Size | Cutting Edge Length | Manufacturer Grade | Primary Material Application | Primary Material Application Iso Code | Finish-machining | Insert Thickness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| P3201-D10 WKP25 | 0.098" | D10 | 10 mm | Wkp25 | Cast Iron, Steel | K, P | Ticn+Al2O3+Tin | 0.098" | €80.68 | |
| P3201-D10 WKP35 | 0.098" | D10 | 10 mm | Wkp35 | Cast Iron, Steel | K, P | Ticn+Al2O3+Tin | 0.098" | €78.00 | |
| P3201-D12 WKP25 | 0.098" | D12 | 12 mm | Wkp25 | Cast Iron, Steel | K, P | Ticn+Al2O3+Tin | 0.098" | €85.76 | |
| P3201-D12 WKP35 | 0.098" | D12 | 12 mm | Wkp35 | Cast Iron, Steel | K, P | Ticn+Al2O3+Tin | 0.098" | €81.54 | |
| P3201-D16 WKP25 | 0.118" | D16 | 16 mm | Wkp25 | Cast Iron, Steel | K, P | Ticn+Al2O3+Tin | 0.118" | €90.26 | |
| P3201-D16 WKP35 | 0.118" | D16 | 16 mm | Wkp35 | Cast Iron, Steel | K, P | Ticn+Al2O3+Tin | 0.118" | €85.94 | |
| P3201-D19.05 WHH15 | 0.118" | D19.05 | 3/4" | Whh15 | Hardened Steel | H | TiAlN | 0.118" | €99.79 |
