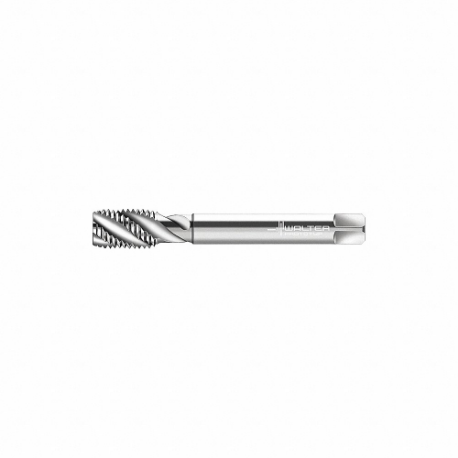

WALTER TOOLS P22569-UNC1 6244710 Spiral Flute Tap, 1-8 Thread Size, 30 mm Thread Length, 160 mm Length
Item: CU9DLVModel: P22569-UNC1Cross Ref: 428Z74 / 6244710
7 In Stock
Ships within 2 days via
10.00% off
€351.56 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Flute Tap |
| 55% Thread Drill Size | 29/32" |
| 65% Thread Drill Size | 57/64" |
| 75% Thread Drill Size | 22.25 mm |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.876" |
| Extended Neck | Yes |
| Features | For Long Chipping Materials |
| Finish | Bright |
| Fits Class | Class 2B |
| Helix Angle | 45° |
| Measurement System | Fractional Inch |
| Number Of Flutes | 4 |
| Overall Length | 160 mm |
| Primary Material Application | Steel |
| Primary Material Application Iso Code | P |
| Secondary Material Application | Aluminum, Brass, Bronze, Composite, Copper |
| Secondary Material Application Iso Code | N, O |
| Shank Dia. | 18 mm |
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Spiral Direction | Right Hand |
| Square Size | 14.5 mm |
| Standards | DIN 2184-1 |
| System Of Measurement | Imperial |
| Tap Chamfer | Modified Bottoming, Semi Bottoming |
| Tap Finish | Bright |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 2184-1 |
| Tap Style | Spiral Flute |
| Tap Thread Size | 1"-8 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 30 mm |
| Thread Limit | H6, H7 |
| Thread Limit/class Of Fit | H6, 2B, H7, 2B |
| Thread Size | 1"-8 |
| Thread Standard | Coarse |
| Threads Per Inch | 8 |
Shipping Info:
| Ship weight (kg) | 0.14 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 16 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Thread Size | Thread Direction | Number Of Flutes | Thread Length | Thread Limit | Overall Length | Tap Finish | 75% Thread Drill Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A2340876-UNF0 | #0-80 | Right Hand | 3 | 5.5 mm | H1 | 41.3 mm | TiCN | 1.2 mm | €167.14 | |
 |
A2340806-UNF0 | #0-80 | Right Hand | 2 | 5.5 mm | H1 | 41.3 mm | TiCN | 1.2 mm | €147.22 | |
 |
224101-UNJC10 | #10-24 | Right Hand | 3 | 13.5 mm | 3B | 70 mm | Bright | #25 | €189.67 | |
 |
224164-UNC10 | #10-24 | Right Hand | 3 | 16 mm | H2, H3 | 70 mm | Bright | #25 | €118.54 | |
 |
22416-UNC10 | #10-24 | Right Hand | 3 | 16 mm | H3, H4 | 70 mm | Bright | #25 | €98.04 | |
 |
224102-UNC10 | #10-24 | Right Hand | 3 | 16 mm | H3, H4 | 70 mm | Bright | #25 | €98.04 | |
 |
P22509-UNC10 | #10-24 | Right Hand | 3 | 8 mm | H2, H3 | 70 mm | - | #25 | €72.34 |
