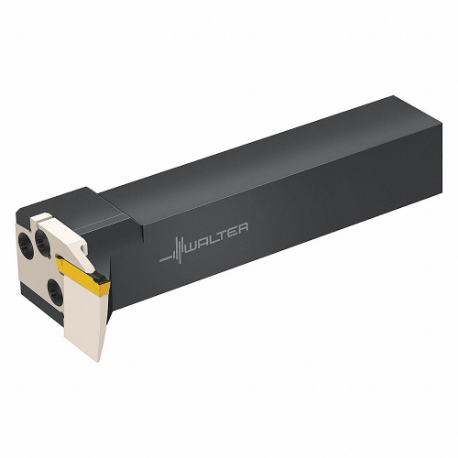

WALTER TOOLS NCHE25-2525R-GX24-3-4 Indexable Parting and Grooving Tool Holder, Novex-Cut, GX Insert, Screw Clamping
Get it by Tuesday, Sep 1
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Grooving Tool Holder |
| Ansi Code | NCHE25-2525R-GX24-3-4 |
| Ansi Number | NCHE25-2525R-GX24-3-4 |
| Body Width | 0.116" |
| Cutting Angle | 90° |
| Cutting Application | 90掳 Axial Grooving |
| Cutting Direction | Right Hand |
| Cutting Type | Axial Grooving |
| Functional Length | 5.469" |
| Functional Width | 1.85" |
| Hand | R |
| Indexable Insert Width | 0.157" to 0.197" |
| Insert Holding Type | Screw Clamping |
| Insert Style | GX |
| Iso Number | NCHE25-2525R-GX24-3-4 |
| Length | 5.567" |
| Max. Cutting Depth | 0.591" |
| Max. Workpiece Dia. | 11.811" |
| Min. Dia. | 5.906" |
| Overall Length | 5.567" |
| Product Family | NOVEX-CUT |
| Shank Height | 0.984" |
| Shank Width | 0.984" |
| Toolholder Style | NCHE |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 14.14 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Shank Dia. | Cutting Direction | Toolholder Style | Iso Number | Ansi Number | Insert Holding Type | Ansi Code | Insert Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G4014-1212L-2T12DX18-P | - | Left Hand | G4014 | G4014-1212L-2T12DX18-P | G4014-1212L-2T12DX18-P | Side Clamping Screw | G4014-1212L-2T12Dx18-P | DX | €431.28 | |
 |
G4014-1616L-2.5T17DX18-P | - | Left Hand | G4014 | - | G4014-1616L-2.5T17DX18-P | Side Clamping Screw | - | DX | €452.42 | |
 |
G4014-1212L-2T12DX18 | - | Left Hand | G4014 | G4014-1212L-2T12DX18 | G4014-1212L-2T12DX18 | Side Clamping Screw | G4014-1212L-2T12DX18 | DX | €284.19 | |
|
G4014-1616L-3T17DX18-P | - | Left Hand | G4014 | G4014-1616L-3T17DX18-P | G4014-1616L-3T17DX18-P | Side Clamping Screw | G4014-1616L-3T17DX18-P | DX | €452.42 | |
|
G4014-1616L-2T12DX18 | - | Left Hand | G4014 | G4014-1616L-2T12DX18 | G4014-1616L-2T12DX18 | Side Clamping Screw | G4014-1616L-2T12DX18 | DX | €298.43 | |
 |
G4014-1616R-3T17DX18-P | - | Right Hand | G4014 | G4014-1616R-3T17DX18-P | G4014-1616R-3T17DX18-P | Side Clamping Screw | G4014-1616R-3T17DX18-P | DX | €452.42 | |
 |
G4014-1616R-3T17DX18 | - | Right Hand | G4014 | G4014-1616R-3T17DX18 | G4014-1616R-3T17DX18 | Side Clamping Screw | G4014-1616R-3T17DX18 | DX | €298.43 |
