WALTER TOOLS MPHX080305-A57 WKP25S 6071503 Diamond Milling Insert, 0.3150 Inch Inscribed Circle, 0.0200 Inch Corner Radius
Item: CU8KZRModel: MPHX080305-A57 WKP25SCross Ref: 56RF44 / 6071503
7 In Stock
Ships within 2 days via
10.00% off
€31.22 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Milling Insert |
| Ansi Code | MPHX080305-A57 |
| Ansi Number | MPHX080305-A57 |
| Chip-breaker | Yes |
| Chip-breaker Code | A57 |
| Clearance Angle | 11° |
| Coating | Chemical vapor deposition |
| Coating Process | CVD |
| Corner Radius | 0.02" |
| Cutting Edge Length | 8.3 mm |
| Finish | Titanium Carbonitride, Aluminum Oxide |
| Finish - Machining | Ticn+Al2O3+(Ticn) |
| Hole Type | With Hole |
| Included Angle | 86° |
| Inscribed Circle | 0.315" |
| Insert Style | MPHX |
| Iso Number | MPHX080305-A57 |
| Manufacturer Grade | Wkp25S |
| Material | Carbide |
| Material - Machining | Carbide |
| Number Of Cutting Edges | 2 |
| Primary Material Application | Cast Iron, Steel |
| Primary Material Application Iso Code | K, P |
| Rake | Positive |
| Shape | Diamond |
| Style | MPHX |
| Thickness | 1/8" |
| Width | 0.327" |
Shipping Info:
| Ship weight (kg) | 0.02 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Corner Radius | Thickness | Ansi Number | Iso Number | Inscribed Circle | Rake | Shape | Clearance Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ENMX08T316R-D27 WSM35S | 0.063" | - | ENMX08T316R-D27 | ENMX08T316R-D27 | - | Negative | Diamond | 0° | - | RFQ
|
|
ENMX08T316R-D27 WKP25S | 0.063" | 0.142" | ENMX08T316R-D27 | ENMX08T316R-D27 | - | Negative | Diamond | 0° | €42.53 | |
 |

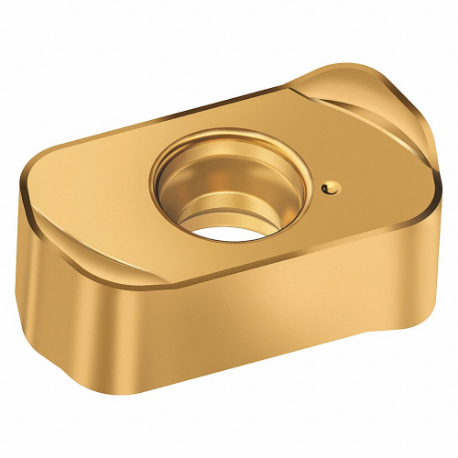

ENMX08T316R-F47 WKP25S | 0.063" | 0.142" | ENMX08T316R-F47 | - | - | Negative | Diamond | 0° | €42.53 | |
|
ENMX08T316R-F47 WKP35G | 0.063" | 0.142" | ENMX08T316R-F47 | - | - | Negative | Diamond | 0° | €50.99 | |
 |
ZDGT20A516R-K85 WMG40 | 0.063" | 0.219" | ZDGT20A516R-K85 | ZDGT20A516R-K85 | - | Positive | Rhombic | 15° | €66.70 | |
 |

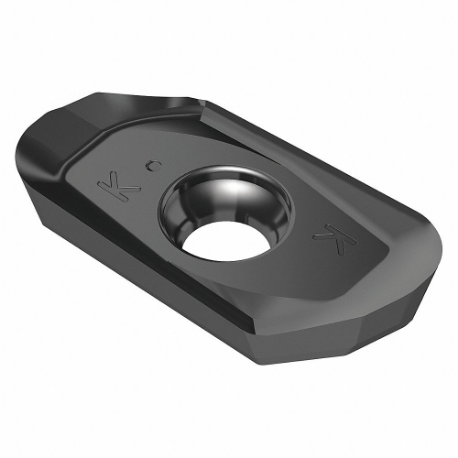

ZDGT150416R-K85 WNN15 | 0.063" | 3/16" | ZDGT150416R-K85 | ZDGT150416R-K85 | - | Positive | Rhombic | 15° | €65.28 | |
|
ZDGT15A416R-K85 WMG40 | 0.063" | 3/16" | ZDGT15A416R-K85 | ZDGT15A416R-K85 | - | Positive | Rhombic | 15° | €48.04 |
