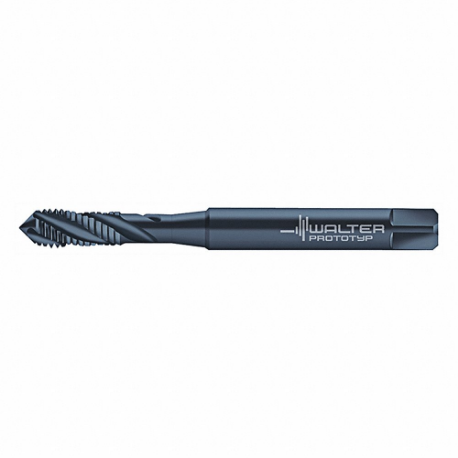

WALTER TOOLS M23513-UNF10 Spiral Flute Tap, #10-32 Thread Size, 8 mm Thread Length, 70 mm Length, Vap | CU9CXW 428P56

WALTER TOOLS M23513-UNF10 6150008 Spiral Flute Tap, #10-32 Thread Size, 8 mm Thread Length, 70 mm Length, Vap

Item: CU9CXWModel: M23513-UNF10Cross Ref: 428P56 / 6150008
7 In Stock

Ships within 2 days via

€73.13 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Spiral Flute Tap
55% Thread Drill Size 4.25 mm
65% Thread Drill Size 4.15 mm
75% Thread Drill Size #21
Clamping Width 0.193"
Connection Dia. 0.236"
Coolant Fed Non Coolant Through
Drill Bit Size 0.161"
Driving Square Length 0.315"
Extended Neck Yes
Features For Long Chipping Materials
Finish Vaporized
Fits Class Class 2B
Functional Length 2.756"
Helix Angle 40°
Material Grade-machining Grade VAP
Measurement System Pipe
No. Of Flutes 3
No. Of Grooves 3
Overall Length 70 mm
Primary Material Application Stainless Steel
Primary Material Application Iso Code M
Secondary Material Application Steel
Secondary Material Application Iso Code P
Shank Dia. 6 mm
Shank Length 45 mm
Shank Type Straight
Shank Type-machining Straight
Spiral Direction Right Hand
Square Size 4.9 mm
Tap Chamfer Modified Bottoming, Semi Bottoming
Tap Finish Vap
Tap Material High Speed Steel
Tap Shank Standard DIN 2184-1
Tap Style Spiral Flute
Tap Thread Size #10-32
Tap Type Spiral Flute
Thread Direction Right Hand
Thread Length 8 mm
Thread Limit H2, H3
Thread Limit/class Of Fit H2, 2B, H3, 2B
Thread Size #10-32
Thread Standard Fine
Thread Type UNF
Threads Per Inch 32
Usable Length 0.984"

Shipping Info:

Ship weight (kg) 0.01
Ship height (cm)2.54
Ship length (cm)7
Ship width (cm)2.54
Country of OriginDE
