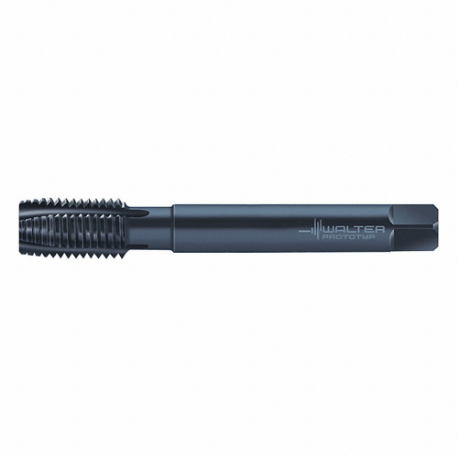

WALTER TOOLS M21263-M16X1 6150063 Spiral Point Tap, M16X1 Thread Size, 21 mm Thread Length, 100 mm Length
Item: CU9JHBModel: M21263-M16X1Cross Ref: 428M72 / 6150063
7 In Stock
Ships within 2 days via
€215.22 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Spiral Point Tap |
| Clamping Width | 0.354" |
| Connection Dia. | 0.472" |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 15 mm |
| Driving Square Length | 0.472" |
| Extended Neck | Yes |
| Finish | Vaporized |
| Fits Class | Class H3 |
| Functional Length | 3.937" |
| No. Of Flutes | 4 |
| No. Of Grooves | 4 |
| Overall Length | 100 mm |
| Primary Material Application | Stainless Steel |
| Primary Material Application Iso Code | M |
| Secondary Material Application | Steel |
| Secondary Material Application Iso Code | P |
| Shank Dia. | 12 mm |
| Shank Length | 42 mm |
| Shank Type | Straight |
| Shank Type-machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 9 mm |
| System Of Measurement | Metric |
| Tap Chamfer | Plug |
| Tap Finish | Vap |
| Tap Material | High Speed Steel E |
| Tap Thread Size | M16 x 1 |
| Thread Direction | Right Hand |
| Thread Length | 21 mm |
| Thread Limit | 6HX |
| Thread Limit/class Of Fit | 6HX, H3 |
| Thread Pitch | 1 mm |
| Thread Size | M16 x 1 |
| Thread Standard | Metric Fine |
| Usable Length | 2.283" |
Shipping Info:
| Ship weight (kg) | 0.04 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 10 |
| Ship width (cm) | 2.54 |
| Country of Origin | IN |
Product Variants
| Product | Model | Thread Size | Thread Length | Thread Direction | Thread Limit | Overall Length | Tap Finish | 75% Thread Drill Size | Tap Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A2340876-UNF0 | #0-80 | 5.5 mm | Right Hand | H1 | 41.3 mm | TiCN | 1.2 mm | High Speed Steel | €129.31 | |
 |
A2340806-UNF0 | #0-80 | 5.5 mm | Right Hand | H1 | 41.3 mm | TiCN | 1.2 mm | High Speed Steel | €116.12 | |
 |
224101-UNJC10 | #10-24 | 13.5 mm | Right Hand | 3B | 70 mm | Bright | #25 | High Speed Steel | €154.44 | |
 |
224164-UNC10 | #10-24 | 16 mm | Right Hand | H2, H3 | 70 mm | Bright | #25 | High Speed Steel | €96.88 | |
 |
22416-UNC10 | #10-24 | 16 mm | Right Hand | H3, H4 | 70 mm | Bright | #25 | High Speed Steel | €80.15 | |
 |
224102-UNC10 | #10-24 | 16 mm | Right Hand | H3, H4 | 70 mm | Bright | #25 | High Speed Steel | €87.24 | |
 |
P22509-UNC10 | #10-24 | 8 mm | Right Hand | H2, H3 | 70 mm | - | #25 | High Speed Steel | €59.04 |
