WALTER TOOLS M20513-M3 Spiral Flute Tap, M3X0.5 Thread Size, 6 mm Thread Length, 56 mm Length, Vap | CU9FGJ 428L95

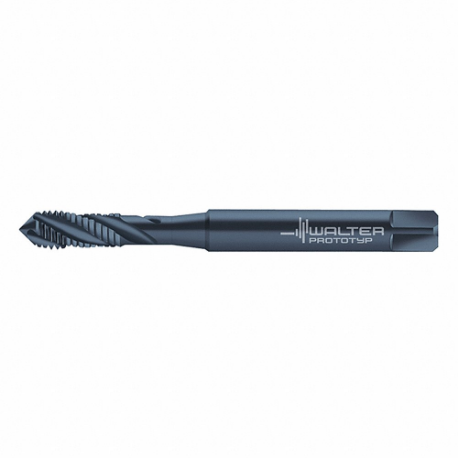

WALTER TOOLS M20513-M3 6149735 Spiral Flute Tap, M3X0.5 Thread Size, 6 mm Thread Length, 56 mm Length, Vap

Item: CU9FGJModel: M20513-M3Cross Ref: 428L95 / 6149735
7 In Stock

Ships within 2 days via

€65.61
13.00% off
€57.07 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Spiral Flute Tap
65% Thread Drill Size #38
75% Thread Drill Size 2.5 mm
Clamping Width 0.106"
Connection Dia. 0.138"
Coolant Fed Non Coolant Through
Drill Bit Size 2.5 mm
Driving Square Length 0.236"
Extended Neck Yes
Features For Long Chipping Materials
Finish Vaporized
Functional Length 2.205"
Helix Angle 40°
Material Grade-machining Grade VAP
No. Of Flutes 3
No. Of Grooves 3
Overall Length 56 mm
Primary Material Application Stainless Steel
Primary Material Application Iso Code M
Secondary Material Application Steel
Secondary Material Application Iso Code P
Shank Dia. 3.5 mm
Shank Length 38 mm
Shank Type Straight
Shank Type-machining Straight
Spiral Direction Right Hand
Square Size 2.7 mm
System Of Measurement Metric
Tap Chamfer Modified Bottoming, Semi Bottoming
Tap Finish Vap
Tap Material High Speed Steel
Tap Shank Standard DIN 371
Tap Style Spiral Flute
Tap Thread Size M3 x 0.5
Tap Type Spiral Flute
Thread Direction Right Hand
Thread Length 6 mm
Thread Limit 6HX
Thread Limit/class Of Fit 6HX
Thread Pitch 0.5 mm
Thread Size M3 x 0.5
Thread Standard Metric Coarse
Usable Length 0.709"

Shipping Info:

Ship height (cm)2.54
Ship length (cm)5.6
Ship width (cm)2.54
Country of OriginDE

Product Variants

ProductModelThread SizeThread LengthThread DirectionThread LimitOverall LengthTap Finish75% Thread Drill SizeTap MaterialPrice
WALTER TOOLS A2340876-UNF0 Spiral Flute Tap, #0-80 Thread Size, 5.50 mm Thread Length, 41.30 mm Length, Ticn | CU9CWM 427T39 A2340876-UNF0#0-805.5 mmRight HandH141.3 mmTiCN1.2 mmHigh Speed Steel€129.31
WALTER TOOLS A2340806-UNF0 Spiral Flute Tap, #0-80 Thread Size, 5.50 mm Thread Length, 41.30 mm Length, Ticn | CU9CWN 427T32 A2340806-UNF0#0-805.5 mmRight HandH141.3 mmTiCN1.2 mmHigh Speed Steel€116.12
WALTER TOOLS 224101-UNJC10 Spiral Flute Tap, #10-24 Thread Size, 13.50 mm Thread Length, 70 mm Length | CU9CWT 427C96 224101-UNJC10#10-2413.5 mmRight Hand3B70 mmBright#25High Speed Steel€154.44
WALTER TOOLS 224164-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length | CU9CWU 427D31 224164-UNC10#10-2416 mmRight HandH2, H370 mmBright#25High Speed Steel€96.88
WALTER TOOLS 22416-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length, Pipe | CU9CWV 427D37 22416-UNC10#10-2416 mmRight HandH3, H470 mmBright#25High Speed Steel€80.15
WALTER TOOLS 224102-UNC10 Spiral Flute Tap, #10-24 Thread Size, 16 mm Thread Length, 70 mm Length, Pipe | CU9CWW 427D04 224102-UNC10#10-2416 mmRight HandH3, H470 mmBright#25High Speed Steel€87.24
WALTER TOOLS P22509-UNC10 Spiral Flute Tap, #10-24 Thread Size, 8 mm Thread Length, 70 mm Length | CU9CWY 428Z45 P22509-UNC10#10-248 mmRight HandH2, H370 mm-#25High Speed Steel€59.04
