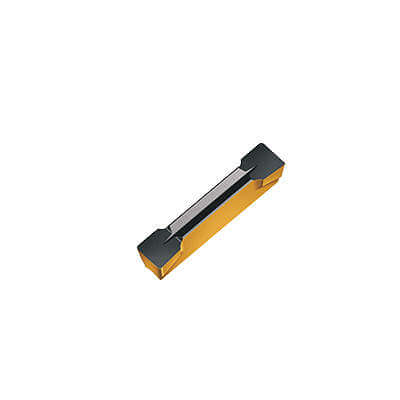

WALTER TOOLS GX24-3E400N040-UA4 WAK20 Parting/Grooving Insert WAK20 0.157 Inch Width
Item: AH2WBKModel: GX24-3E400N040-UA4 WAK20Cross Ref: 30EZ34
7 In Stock
Ships within 2 days via
10.00% off
€46.28 /unit
This product can only be shipped in multiples of 10Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Parting/Grooving Insert |
| Ansi Code | GX24-3E400N040-UA4 WAK20 |
| Chip-breaker | Yes |
| Chip-breaker Code | UA4 |
| Clearance Angle | 6° |
| Coating | Chemical vapor deposition |
| Coating Process | CVD |
| Corner Radius | 0.4 mm |
| Cutting Application | Axial Grooving, Cut Off, Facing, Longitudinal Turning, Radial Grooving |
| Cutting Direction | Neutral |
| Cutting Location | External |
| Depth Of Cut | 22 mm |
| Grade | WAK20 |
| Hole Type | No Hole |
| Insert Holding Type | Slip In |
| Insert Size | 24 |
| Iso Number | GX24-3E400N040-UA4 WAK20 |
| Lead Angle | 0° |
| Manufacturer Grade | WAK20 |
| Material - Machining | Carbide |
| Max. Grooving Width | 4 mm |
| Measurement System | Metric |
| Mounting Style | Slip In |
| No. Of Edges | 2 |
| Number Of Cutting Edges | 2 |
| Number Of Cutting Sides | 2 |
| Overall Length | 24 mm |
| Primary Material Application | Cast Iron |
| Primary Material Application Iso Code | K |
| Rake | Positive |
| Reference Length | 24 mm |
| Seat Size | E |
| Style | Pressed |
| Width | 4 mm |
Shipping Info:
| Ship weight (kg) | 0.08 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Model | Corner Radius | Grade | Cutting Direction | Chip-breaker Code | Number Of Cutting Edges | Clearance Angle | Insert Size | Rake | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GX09-1E200N02-GD3 WSM33S | 0.2 mm | WSM33S | Neutral | GD3 | 2 | 6° | 09 | 9° | €43.80 | |
| GX09-1E200N02-GD3 WSM43S | 0.2 mm | Grade WSM43S | Neutral | GD3 | 2 | 6° | 09 | 9° | - | RFQ
|
| GX09-1E200N02-UF4 WSM33S | 0.2 mm | WSM33S | Neutral | UF4 | 2 | 6° | 09 | 32° | €41.59 | |
| GX09-1E200N02-UF4 WSM43S | 0.2 mm | Grade WSM43S | Neutral | UF4 | 2 | 6° | 09 | 32° | €41.59 | |
| GX09-1E250N02-GD3 WSM33S | 0.2 mm | WSM33S | Neutral | GD3 | 2 | 6° | 09 | 9° | €41.59 | |
| GX09-1E250N02-GD3 WSM43S | 0.2 mm | Grade WSM43S | Neutral | GD3 | 2 | 6° | 09 | 9° | - | RFQ
|
| GX09-2E300N03-GD3 WSM33S | 0.3 mm | WSM33S | Neutral | GD3 | 2 | 6° | 09 | 9° | €41.59 |
